Transformer T-PWR-004-9968-000

Transformer T-PWR-004-9968-000

(0 reviews)

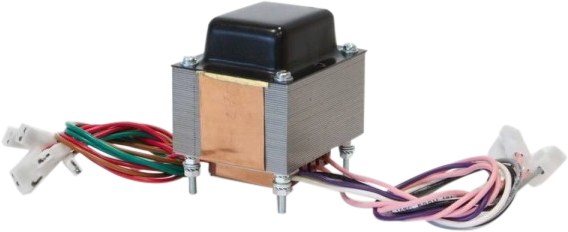

Mains transformer for: Fender Blues Junior (220,230,240V). Also used in the Blues Junior III. Perfect upgrade for Fender Pro Junior Amp (004-1783-000).

Primary #70005
Thermal Breaker Pink
Thermal Breaker Pink

0V Violet
220V White
230V Grey
240V Black

Secondary:
260V 170mA Red
0V Red

6,3V 3A Green
0V Green

20V 100mA Brown
0V Brown

Connection with Board labeled 1998 REV B and REV C:
Primary:
Thermo Pink wire to CP 5 (formerly unused)
Thermo Pink wire to CP 7 (formerly unused)
0V Violet wire to CP 8 (formerly black)
230V Grey wire to S2B (formerly white)

Secondary:
HV Red To CP 12 (formerly red)
HV Red To CP 13 (formerly red)
Bias Brown To CP 16 (formerly brown)
0V Brown To CP 17 (formerly brown)
6,3V Green To CP 18 (formerly green)
0V Green To CP 10 (formerly green)

Connection with Board labeled 2001, 2002, 2003, 2010 (Blues Junior III)
Primary:
Thermo Pink wire to P4
Thermo Pink wire to P7
0V Violet wire to P 8
230V Grey wire to S2B

Secondary:
HV Red To P 11
HV Red To CP 12
Bias Brown To P 13
0V Brown To P 14
6,3V Green To P 15
0V Green To P 16

PRO JUNIOR (all versions):
Primary #70005
Thermal Breaker Pink to S1B
Thermal Breaker Pink to CP 9

0V Violet to CP 10
220V White to CP8
230V Grey to CP 6
240V Black to CP11

Secondary:
260V 170mA Red to P3
0V Red to P4

6,3V 3A Green to P5
0V Green to P6

20V 100mA Brown UNUSED
0V Brown UNUSED

SKU SKU 51949
Weight 2.600,00 g
Our price: 134,70
including VAT 19% , [plus shipping]
Quantity Price*
2-3 Items 129,15
4-5 Items 124,71
6+ Items 121,38

*Note: including VAT , [plus shipping]

 Delivery time: 4-5 days*
