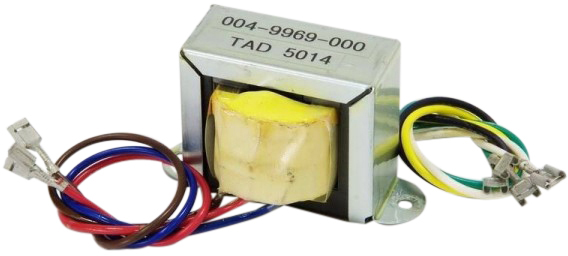

Transformer T-OP-004-9969-000

Output transformer for Fender Blues Junior, Hot Rod Series, 15W, 4, 8 + 16 Ohms. Also fits Fender Musicmaster Bass.

Upgrade: stacking is 1 inch
Impedance approx. 7k p-p

Primary:
A1 Brown
B+ Red
A2 Blue

Secondary:
16 Ohm white
8 Ohm green
4 Ohm yellow
0 Ohm black

please swap blue and brown for correct operation!
