Squareplug SP500

Squareplug SP500
(0 reviews)

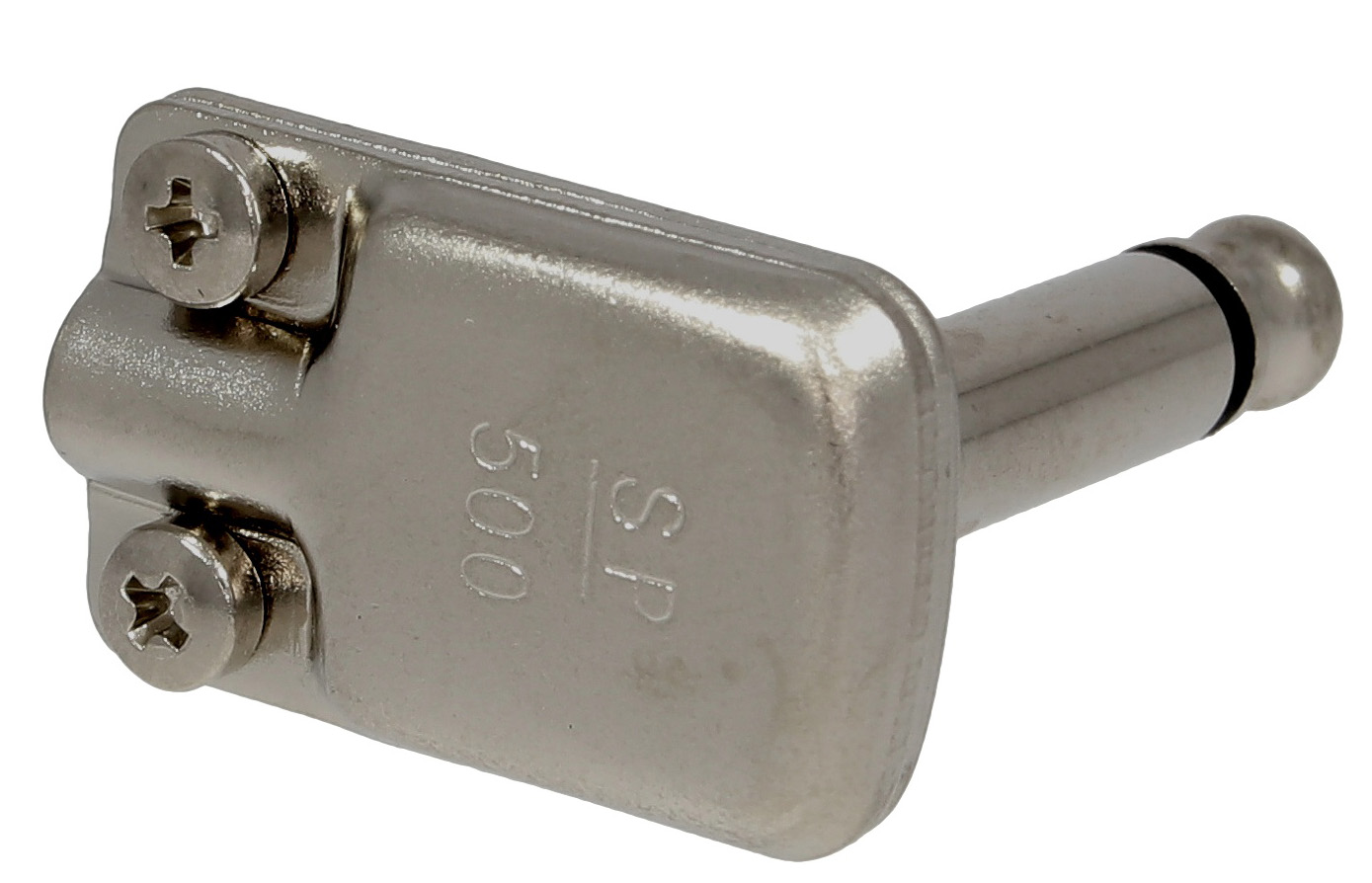

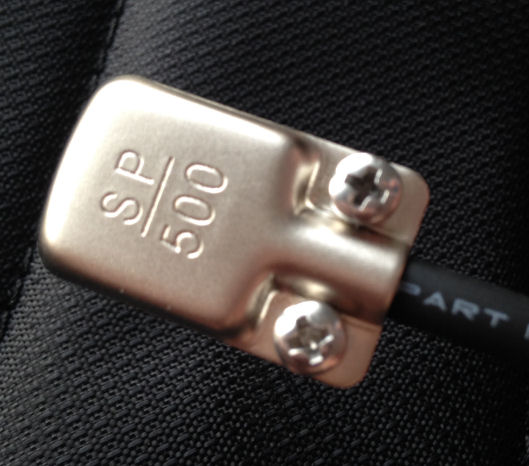

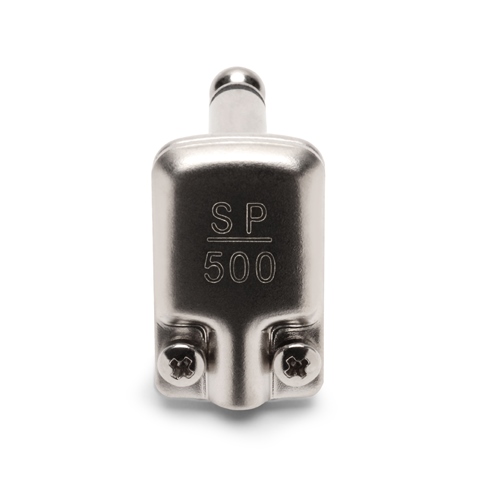

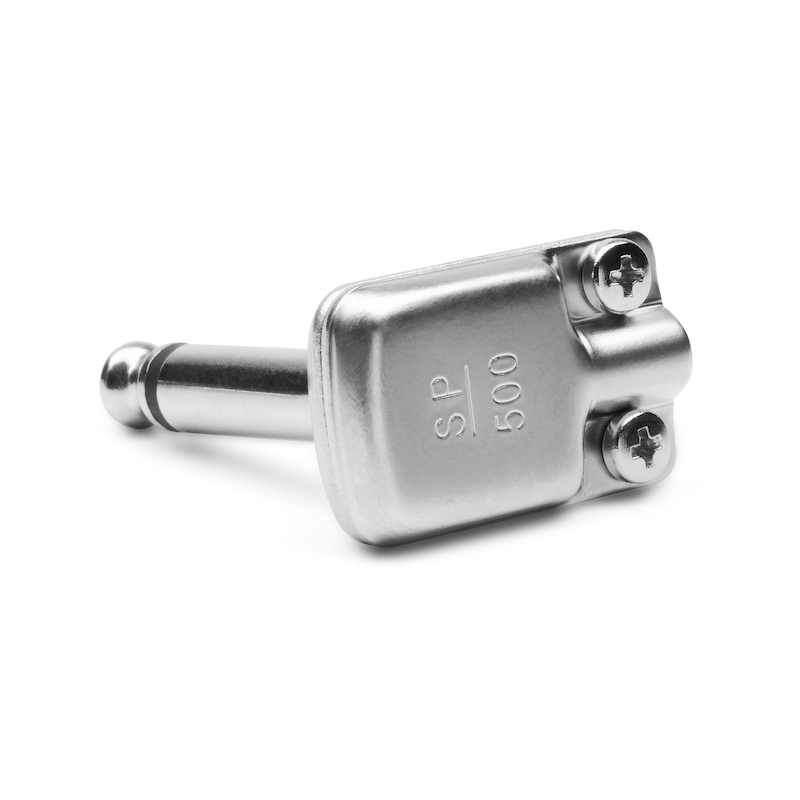

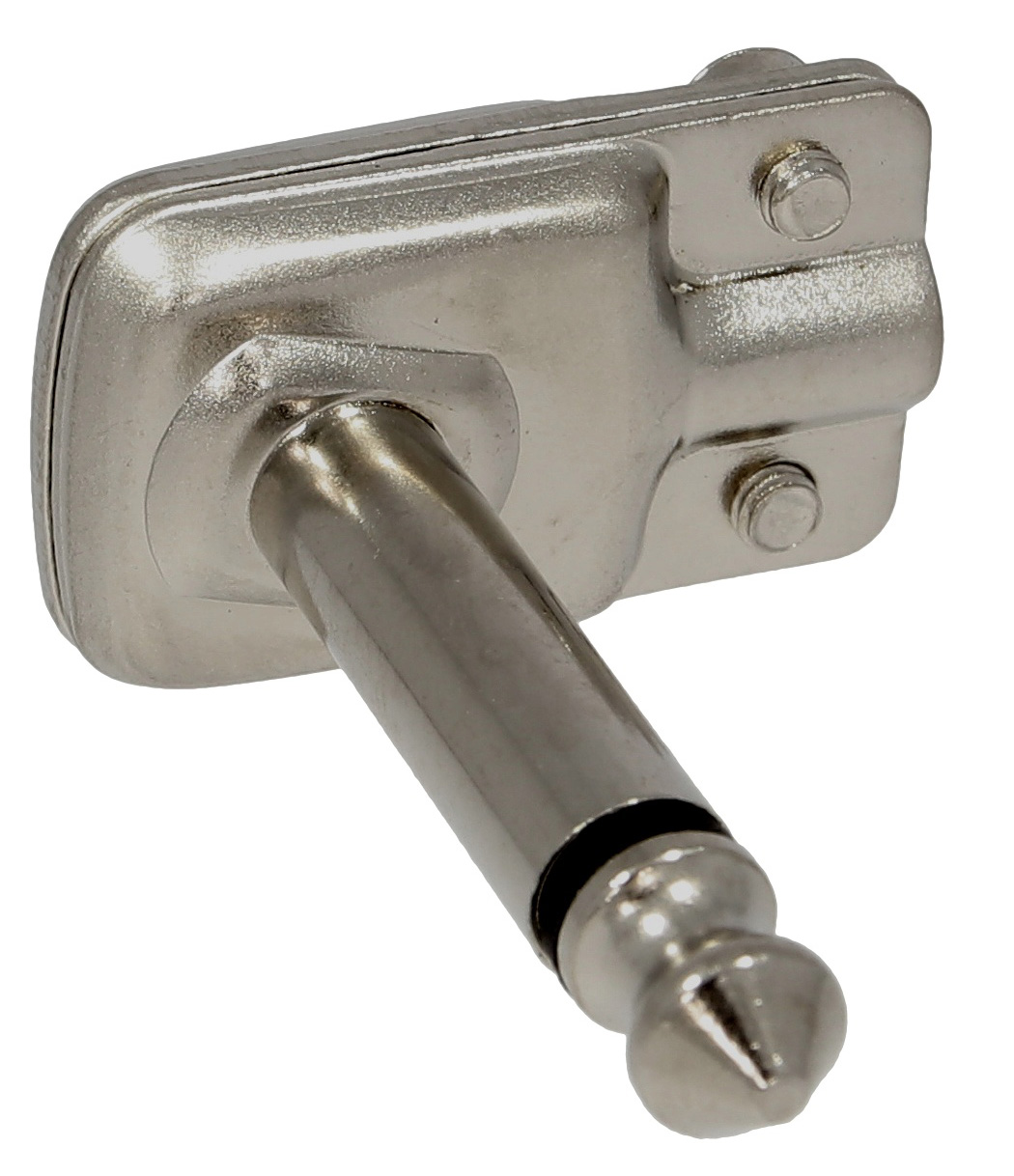

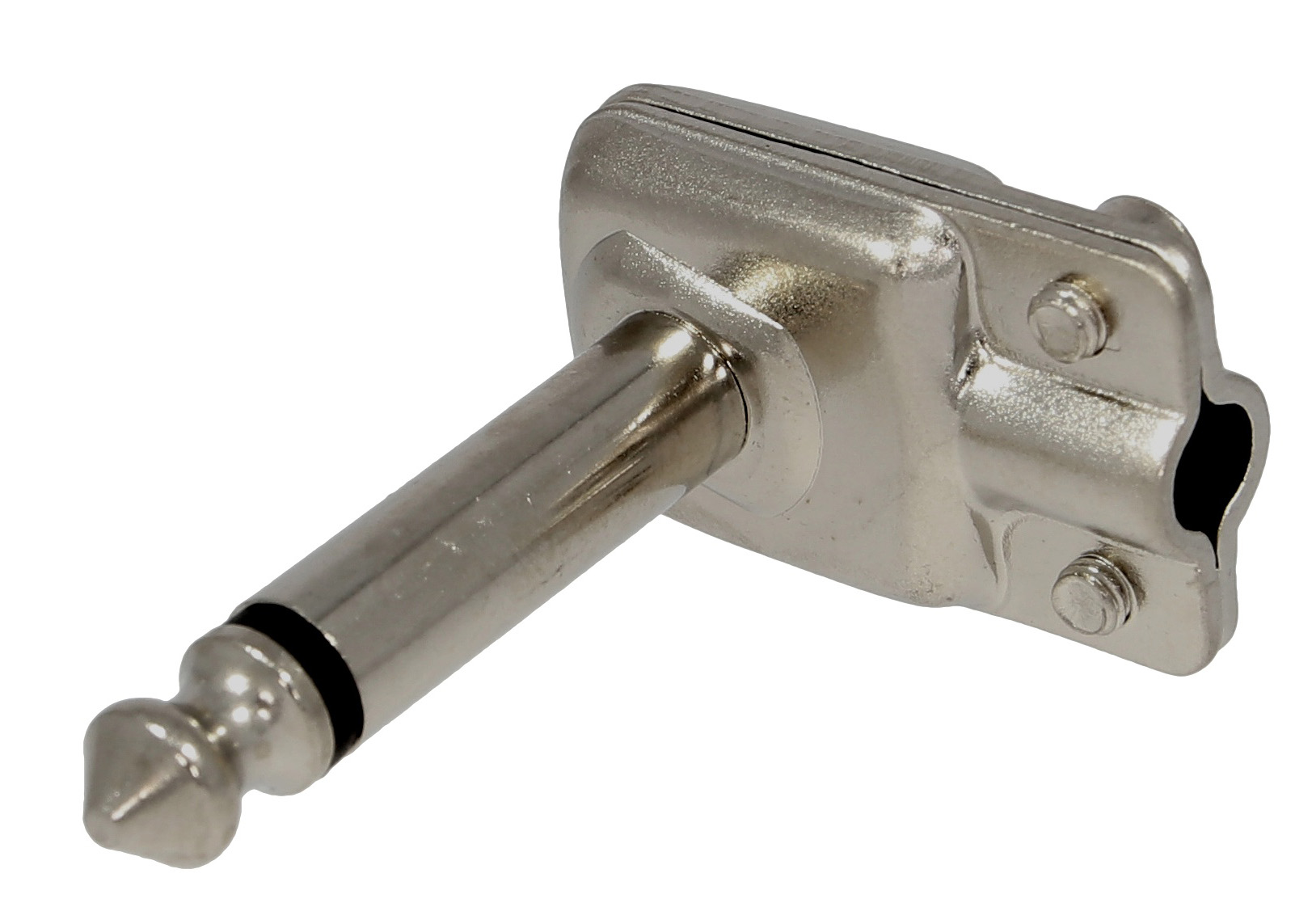

  • The Square Plug SP-500 is an ultra-low-profile,slim right angle 6,3mm (1/4 inch) mono connector for cables of up to 5,8mm diameter.
  • Measurements: 8.3mm / 0.326" x 17mm / 0.67" x 28mm / 1.10".
  • Serviceable, all-metal plug designed to snug-fit smaller diameter cables for optimum strain relief and improved emi protection.
  • 2 solder tabs for quick and easy soldering.
  • Insulation sheet to prevent hot and ground signals from shorting.
  • See the images section for a list of some of the compatible cables and equipment.

  • The SP-500 is compatible with any 5,8mm [0.216 inch] cable diameter or less.
    Popular SP500-compatible cables include: Belden 1865A, Belden 8218, BTPA CA 0492, BTPA CA 0678, Bill Lawrence BL-150, Canare GS-4, Evidence Audio Monorail, Free the Tone CU-418, George L's 155, Lava Mini ELC, Lava Mini Tightrope, Lava Mini Ultramafic, Mogami 2314, Mogami 2319, Mogami 2552, Sommer SC-ONYX TYNEE, VanDamme Pro Patch.

  • The SP500 plug is compatible with the following popular switching systems: VoodooLab Pedal Switcher, PX8, PX8 Plus, HEX, RJM PBC, Mini Effect Gizmo, MusicomLab 6M, 62M, 8L, MKIV, MKV, Providence Audio PEC-4V, PEC-2, IdeaBench Switcheroo, Carl Martin Octaswitch, Octaswitch mkii, Vinteck V8, Cusack Music: PBT9, PBT6 [Not Compatible with The GigRig G2 and Boss ES5/8].

  • Click here to download the Squareplug specs and compatibility list.

    SKU SKU 52025
    Weight 25,00 g
    360 Image 360 degrees image
    Our price: 4,47
    including VAT 19% , [plus shipping]
    Quantity Price*
    5-9 Items 4,22
    10-24 Items 4,05
    25-49 Items 3,86
    50-99 Items 3,74
    100+ Items 3,62

    *Note: including VAT , [plus shipping]

     Delivery time: 4-5 days*

    Enclosure PP4SW
