Song Huei RK0904N-Black-5k log

Song Huei RK0904N-Black-5k log

(0 reviews)

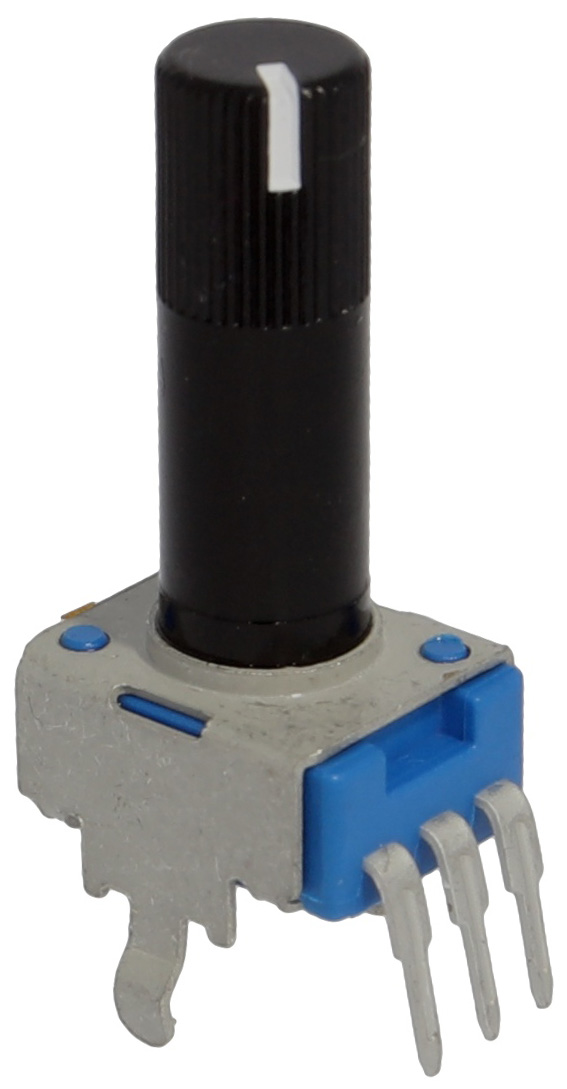

Song Huei RK0904N tall 9mm trimmer pot. Black shaft with white indicator mark. High quality, long-life, ergonomic pot with easy-grip knurl.

Specifications:

  • Black shaft with white indicator mark
  • Operating temperature: -10 .. +70 °C
  • Resistance tolerance: +/- 20%
  • Manual soldering: 300 °C max 3 seconds
  • Sliding noise: less than 80mV
  • Residual resistance: less than 20 Ohm
  • Insulation resistance: more than 100M Ohm at 250VDC
  • Rated power: 0,05W
  • Max. operating voltage: 50VAC / 20VDC
  • Withstand voltage: 1 minute at 250VAC
  • Rotational angle: 280 ° +/- 10%
  • Rotational torque: 10 - 80 gf.cm
  • Rotational life: 15000 cycles
  • Rotational stopper strength: 3kgf.cm max
  • Shaft push-pull strength: 5kgf.cm max
  • CC torque: 30-150 gf.cm

  • SKU SKU 54426
    Weight 1,87 g
    360 Image 360 degrees image
    Our price: 0,99
    including VAT 19% , [plus shipping]
    Quantity Price*
    5-9 Items 0,94
    10-24 Items 0,82
    25-49 Items 0,77
    50+ Items 0,68

    *Note: including VAT , [plus shipping]

     Delivery time: 4-5 days*
