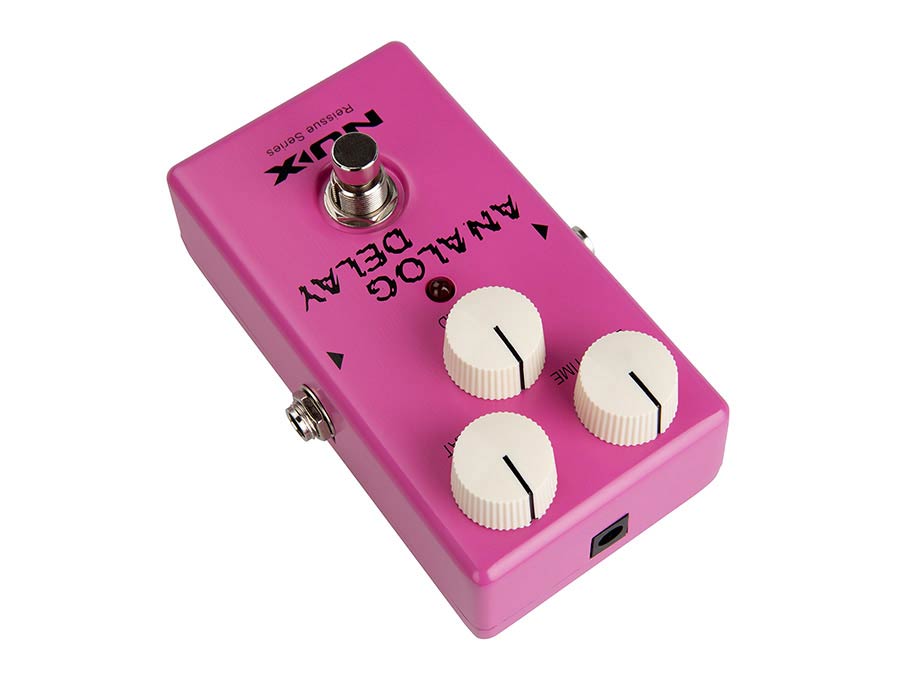

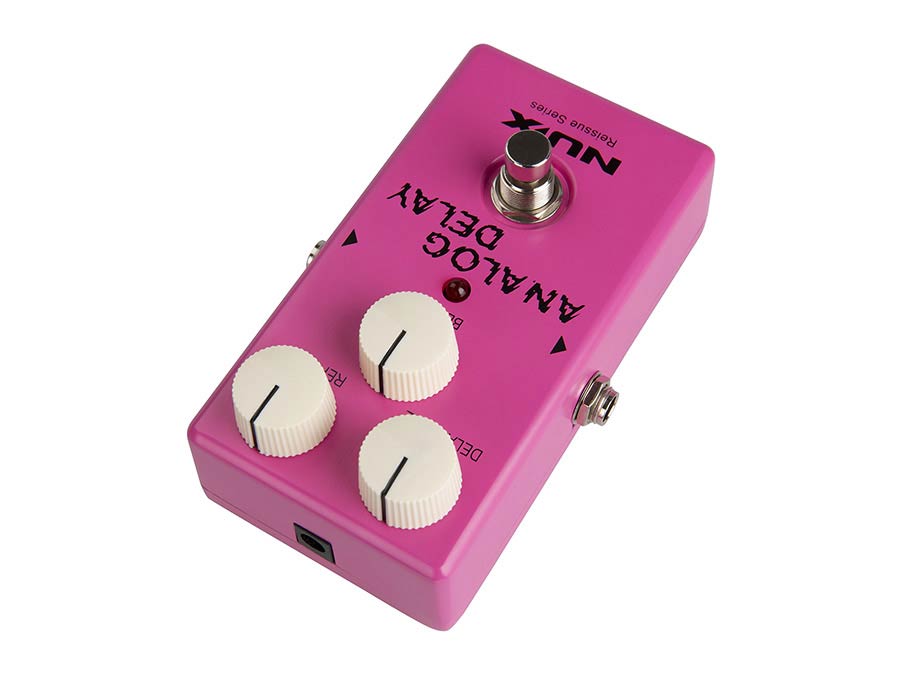

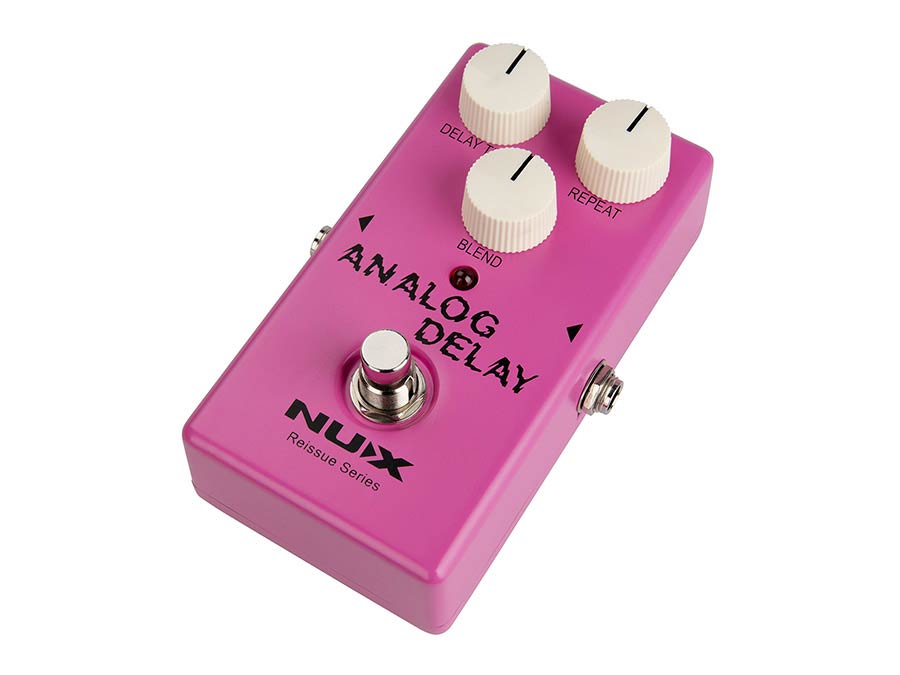

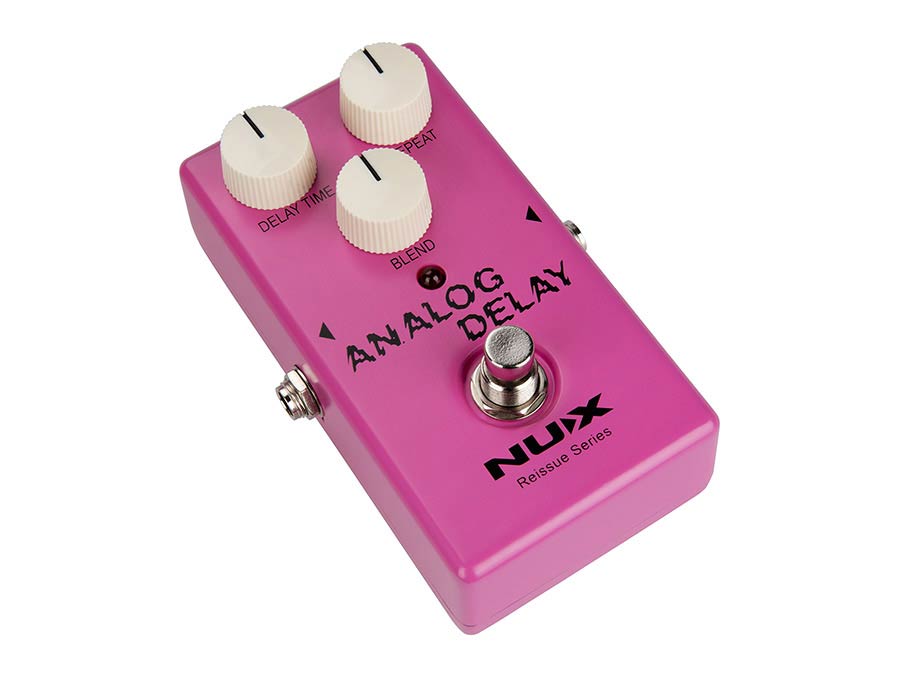

NUX Analog Delay

Analog effect pedal true bypass ANALOG DELAY
The NUX analog delay pedal from the Reissue series has 100% analogue circuitry with 3205 and 3102 BBD chips. It gives you the warm sounding analog delay effect from the 80's. Experiment with the effect by turning up the number of repeats and tweaking the delay time knob!

Features
• vintage analog delay effect
• pure analog bucket-brigade circuit
• true-bypass hardware switching

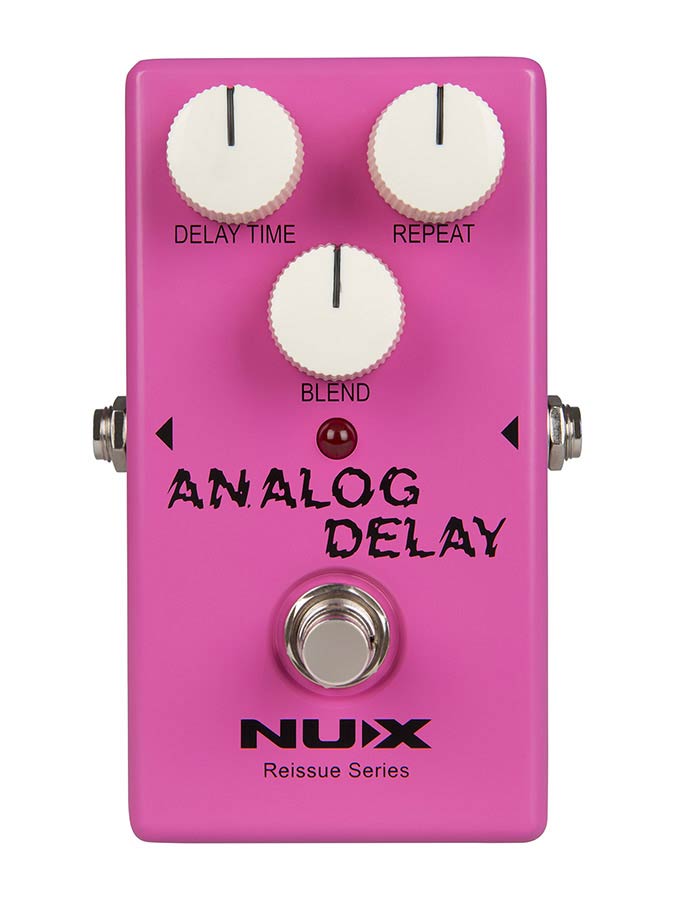

Controls
• delay time, repeat, blend
Specifications
• current draw: < 20 ma
• input impedance: 1m ohms
• output impedance: 10k ohms
• power: 9v battery or external ac adaptor delivering 9v dc regulated minimum 300ma
• dimensions: 121(l) x 77(w) x 48(d) mm
• weight: 230g
