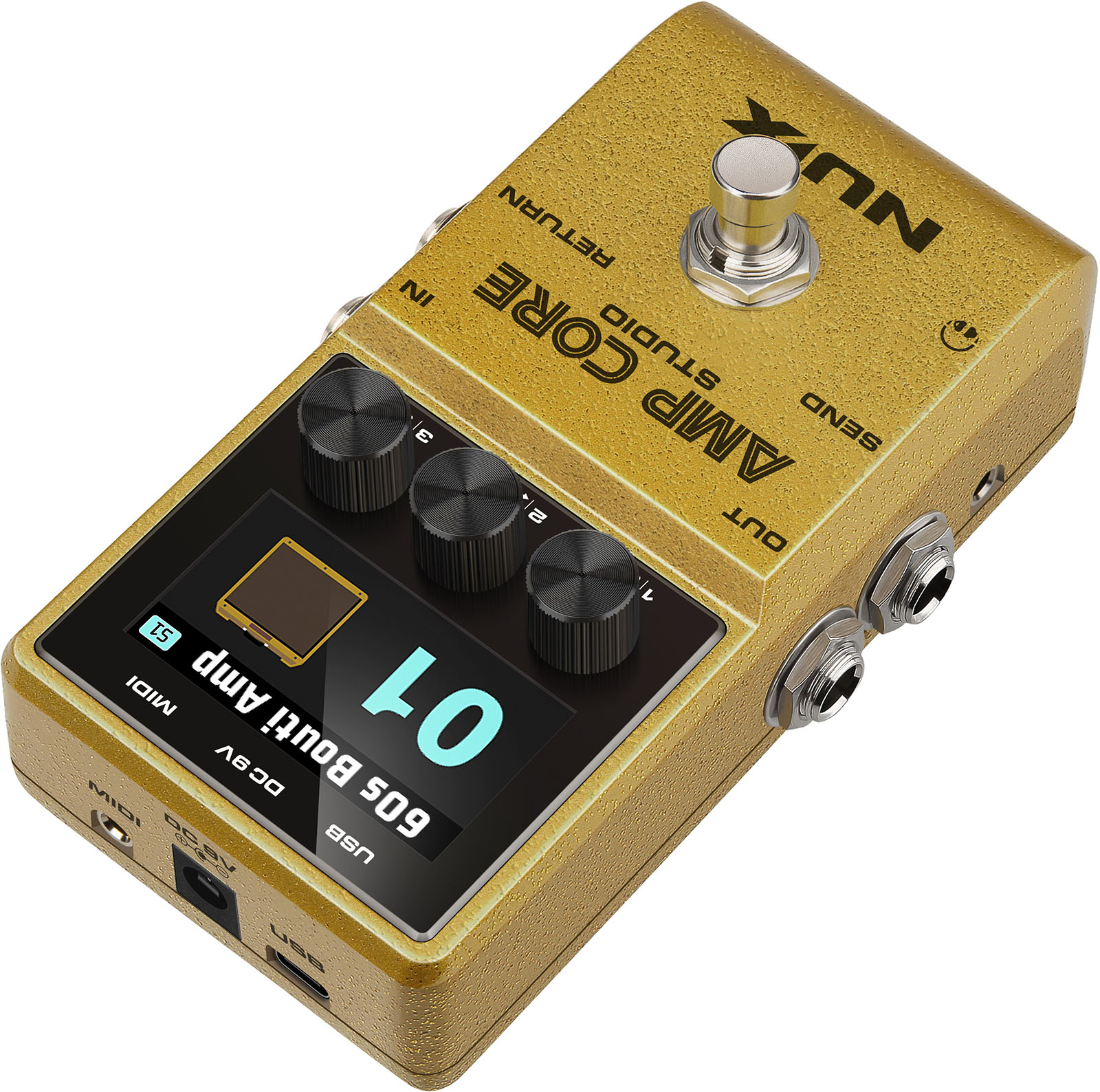

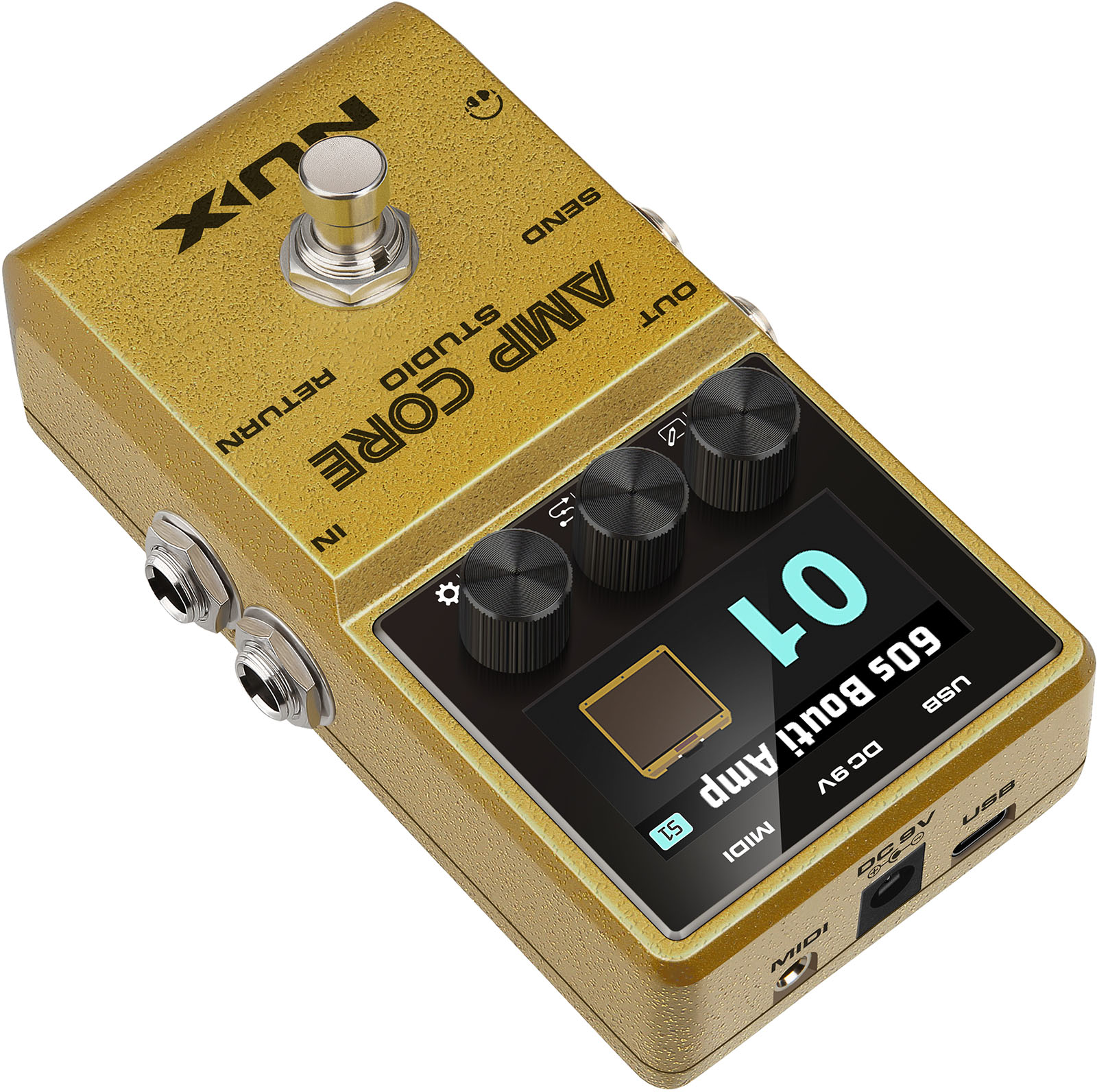

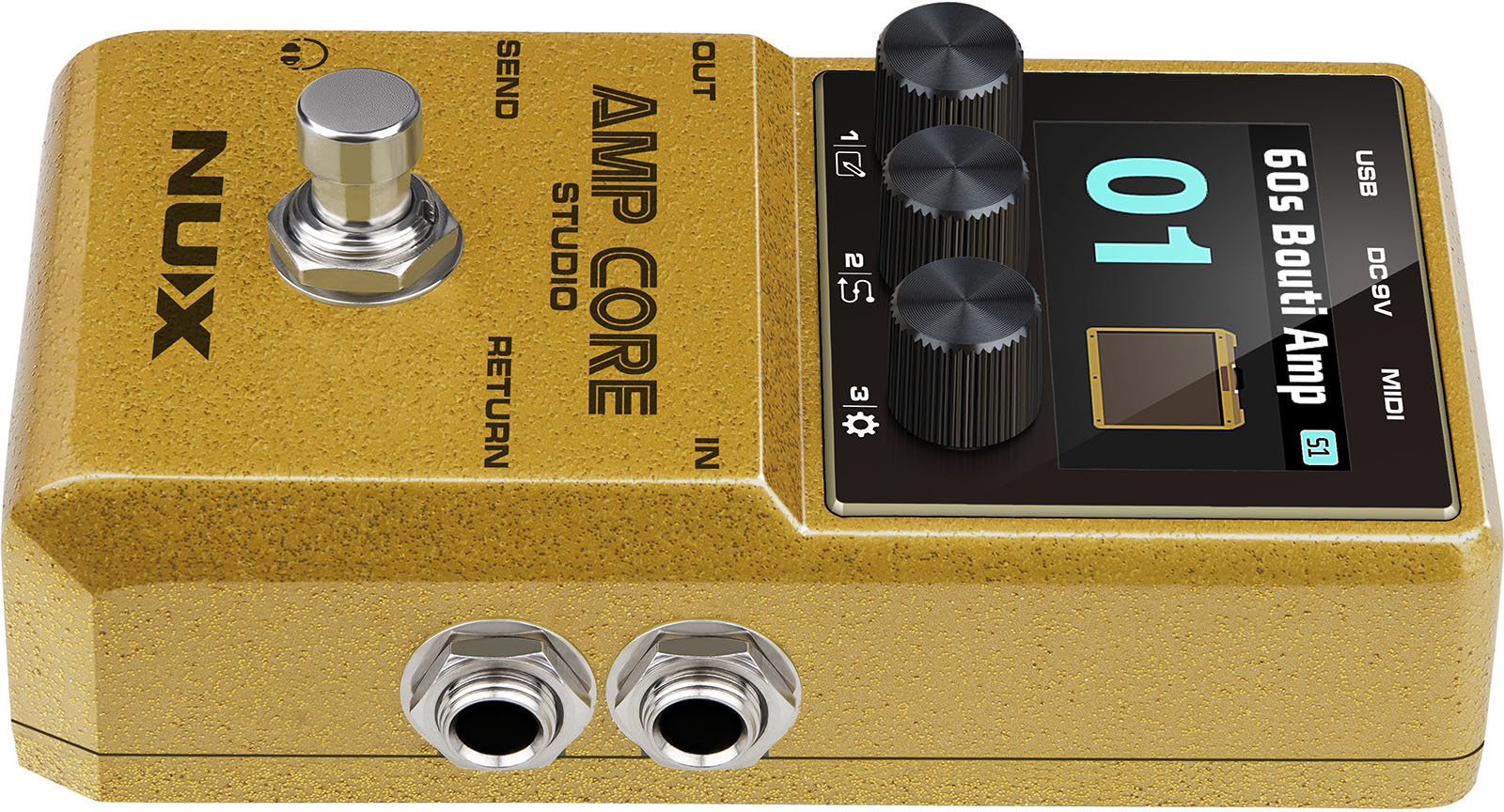

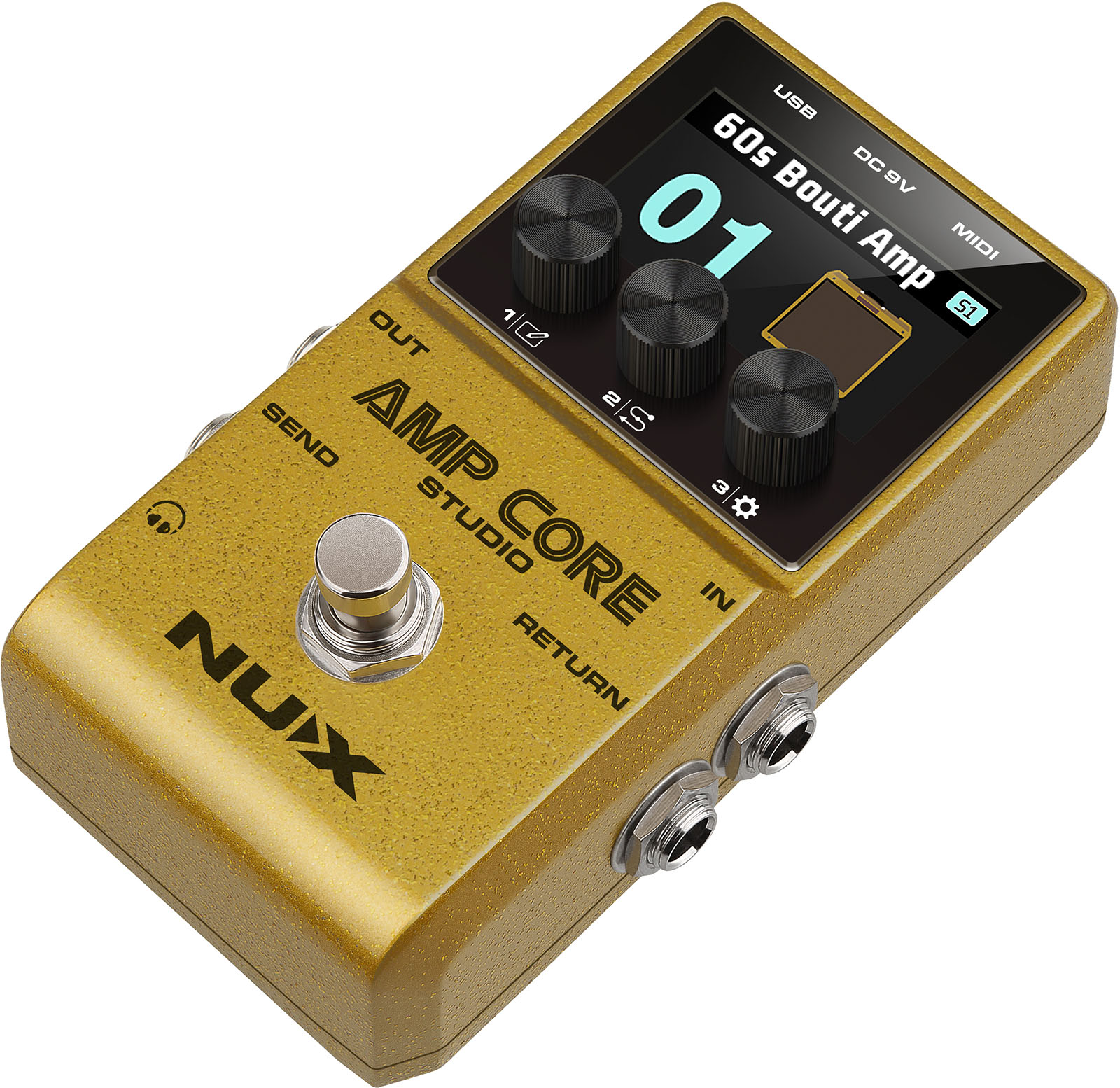

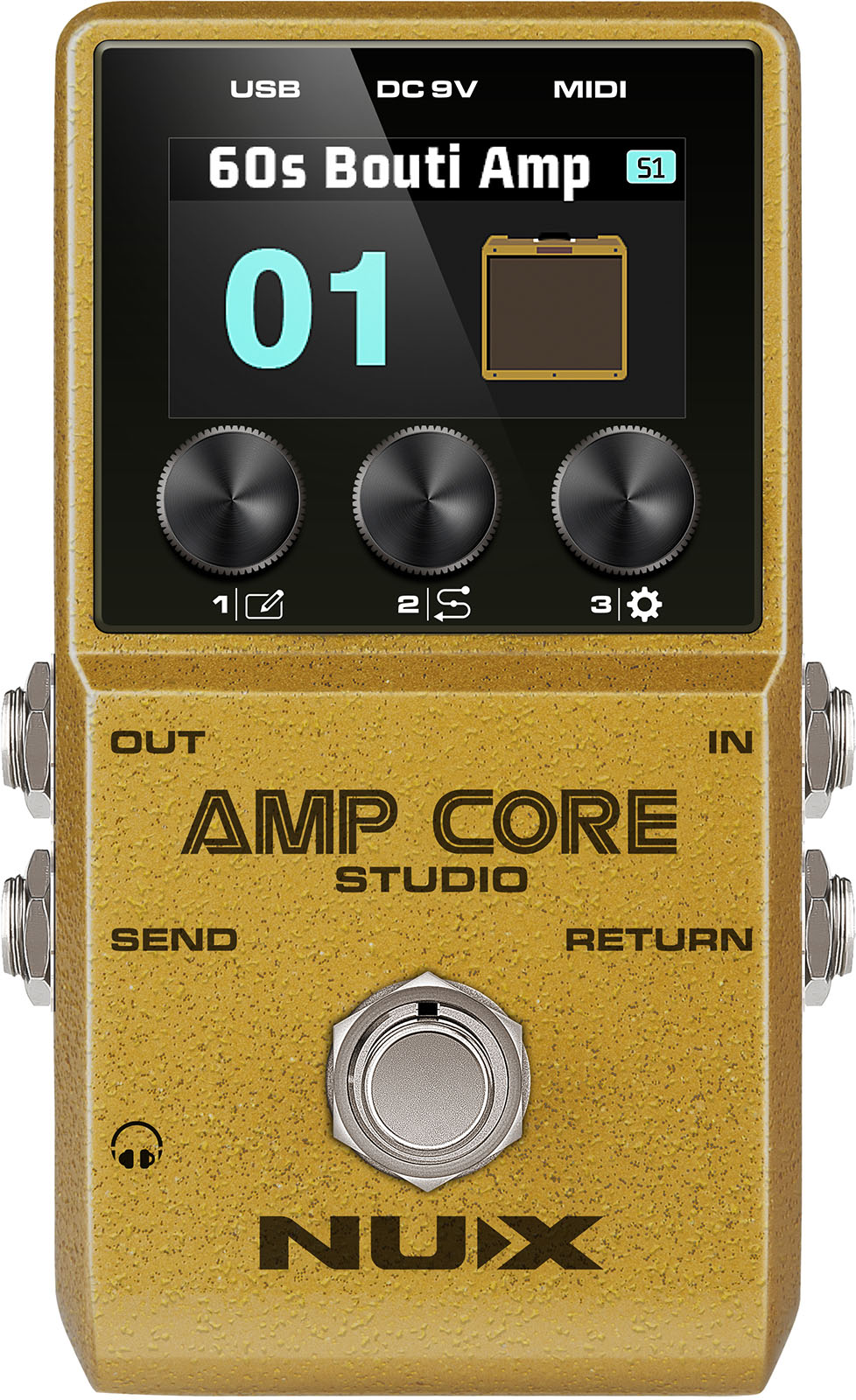

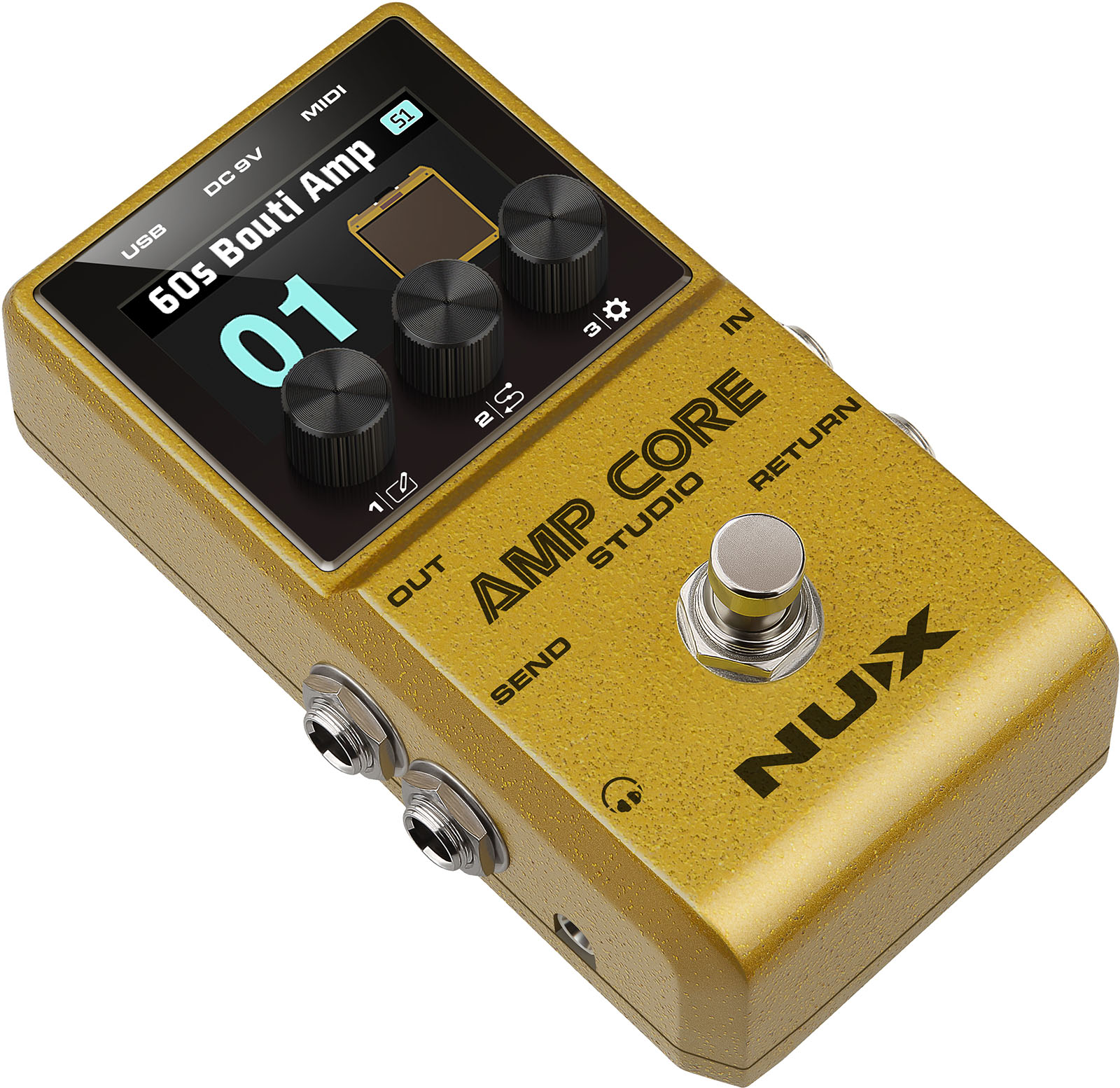

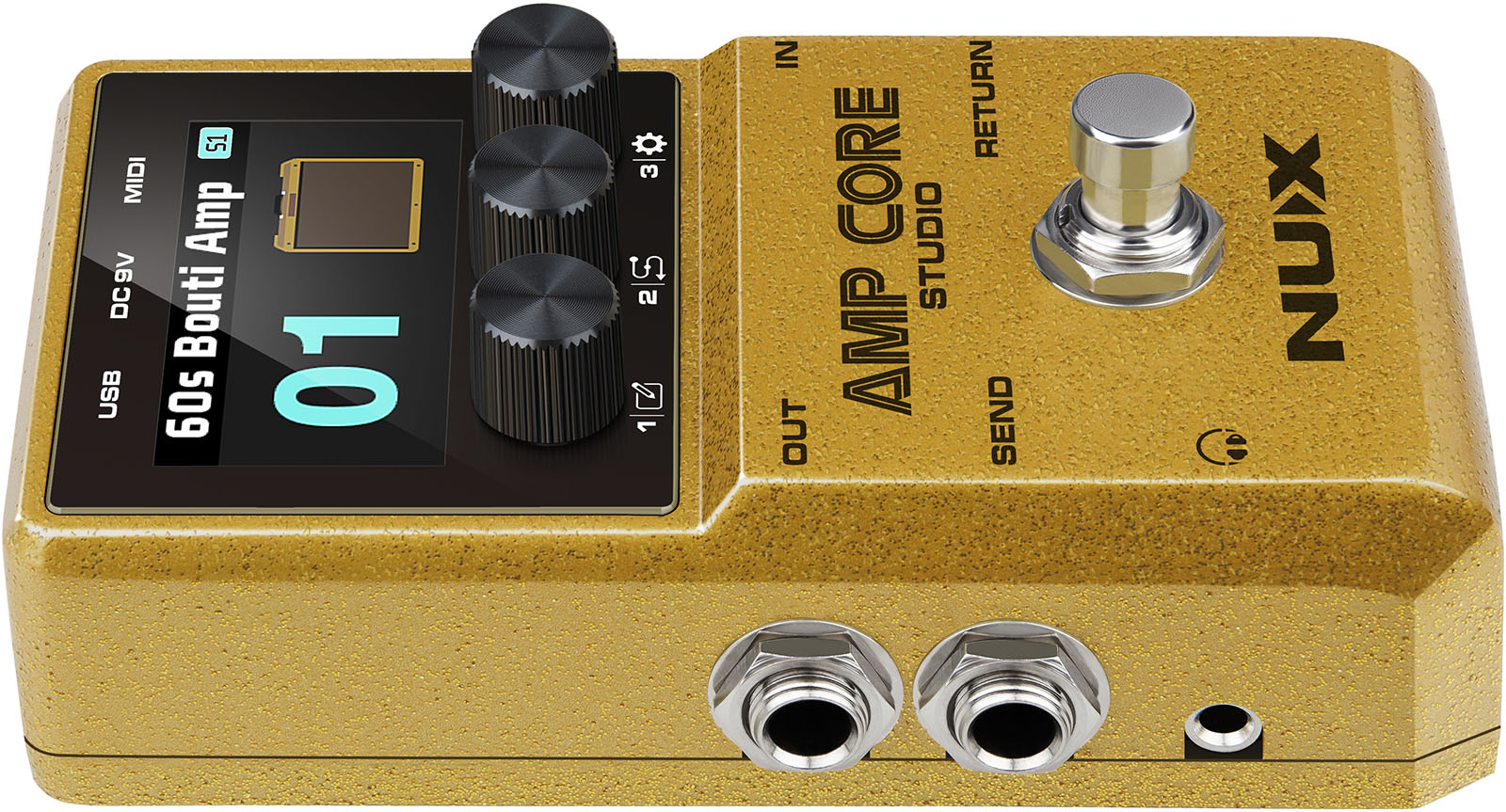

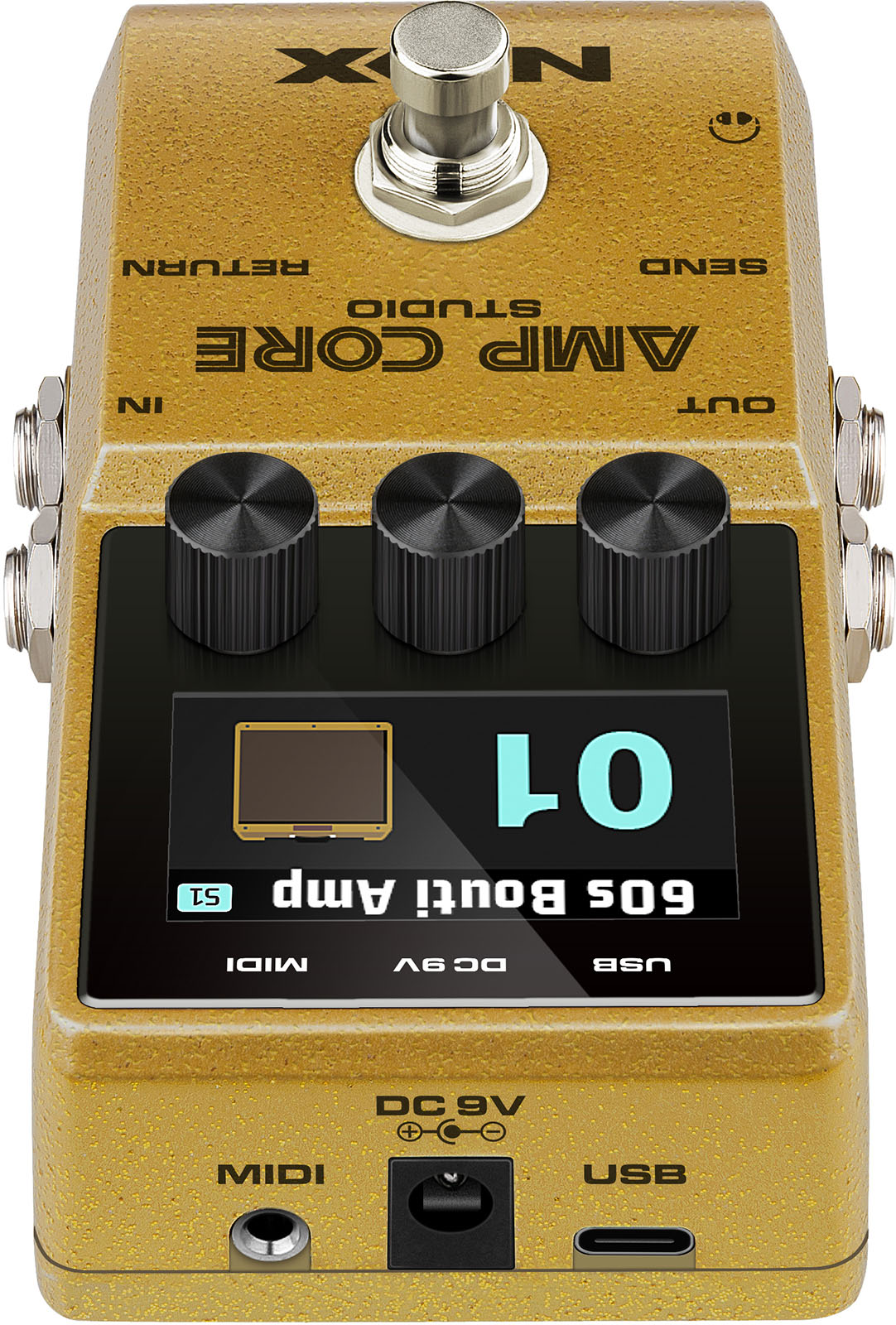

NUX Ampcore Studio

The NUX AMP CORE STUDIO adopts the NUX TSAC-HD (White-box Amp Modeling) algorithm with 26 legendary amp models, delivering the authentic sound and feel of world-class tube amps in a highly portable pedal.With its generous headroom and dynamic range, it's a pedal-friendly platform. Despite its ultra-compact size, the AMP CORE STUDIO can store up to 20 hyper-realistic amp presets with integrated IR cabinets or third-party IRs, seamlessly fitting into any setup.

Real-time switching between different amplifiers: Three scene modes allow seamless switching between different amplifier sounds in real time.

Amp Modeling & IR: The AMP CORE STUDIO features 26 world-class guitar amp models, including F-style and M-style amps, modern high-gain amps, and boutique amplifiers. The iconic TSAC-HD (WHITE-BOX Algorithm) amp modeling delivers a realistic amp feel and fast response for a dynamic playing experience. With a world-class amp emulator and the ability to load third-party IRs, it's easy to take your favorite amp tone anywhere.

AMP CORE STUDIO includes 33 built-in IR cabinets and 12 free slots for third-party IRs. The AMPCORESTUDIO editor automatically converts WAV format.
Direct connection for various applications: On stage: Add the AMP CORE STUDIO to any pedal chain and connect it to a mixer or PA system to enjoy excellent sound, control, and flexibility during live performances.
Monitors via the in-house monitoring system or in-ear monitors.
For personal stage monitoring, you can connect your pedalboard to an active FRFR speaker. Note: The AMP CORE STUDIO is designed to deliver amp and cabinet tones, so it's not ideal for use in front of a guitar amp. If you're using the same pedalboard with both an amp and a guitar amp, please disable the AMP CORE STUDIO's IR function when using your board with a guitar amp.
NUX recommends connecting the 1/4" output to the amplifier's power amp in/return. Enable the IR signal when using the DI output for an active FRFR speaker or PA system.

In the studio: Connect the AMP CORE STUDIO directly to a recording interface to get excellent guitar sound instantly, without the need to set up an amp or microphones.
At home (quiet practice): Connect headphones or monitors directly to the AMP CORE STUDIO's 1/8" PHONES output to experience immersive classic amp sounds in a natural-sounding, amp-free space.

AMP CORE STUDIO Edit Software: The software allows you to load third-party IRs and customize your favorite amp models to create your own unique sound. You can customize the order and routing of signal blocks, fine-tune all block parameters, and even export or import presets.

Features:

26 legendary amplifier models in a compact, pedal-sized format.

The TS/AC-HD (White Box) amp modeling algorithm provides an authentic amplifier feel with ultra-responsive playability.

Cabinet IR resolution with support for third-party IR loaders (33 built-in IRs and 12 empty slots for custom IRs).

3 scene modes allow seamless switching between different amplifier sounds in real time.

Integrated noise reduction (NG), EQ, patch level (PL) adjustment and send/return (S/R) function for versatile sound design.

Send/Return loop for easy integration of your favorite effects pedals.

Ultra-low latency of 1.2 ms.

Wide dynamic range of 110 dB for superior sound quality.

48 kHz / 32-bit high-precision processor for crystal-clear audio performance.

Included AMP CORE STUDIO software for advanced sound editing and customization.

Sampling rate: 44.1 kHzAD converter: 24 bit

Signal processing: 32 bit

Frequency response: 20 Hz - 20 kHz

Noise level: -100 dBu

Dynamic range: 108 dB

Power consumption: 110 mA - 120 mA

Inputs: IN, RETURN

Outputs: OUT, SEND, PHONES

Display: TFT color LCD display

Power supply: 9V power supply with negative tip

Dimensions: 122 mm (L) * 72 mm (W) * 48 mm (H)

Weight: 264 g
