NUX Acoustic Preamp And Di NAP-5

Acoustic preamp and DI, with built-in chorus and looper STAGEMAN FLOOR
NUX Stageman Acoustic Amplifiers Natural Sound is now in a Pocket Size

Improved Clarity
NUX Stageman Floor is an analog acoustic preamp with digital effects and looper function. Preamp featured with a highly sensitive 3-band EQ with MID scoop toggle switch, adjustable notch filter, and input gain control. And it provides a ginormous headroom which delivers the sound all natural.

High-Quality Effects, Easy Control
It equipped with Chorus and Reverb effects and, each effect designed to control by only one-knob, when you tweak the chorus or reverb knob from 0 to 10 it adjusts multiple parameters with a perfect balance. And the chorus switch has another function, while you push and hold, it will activate the freeze effect until you release it.

Notch Filter
You can turn ON the notch filter and adjust the frequency to clean the notch sound caused by a guitar pick or nails

Versatile Preamp
There are Gain and 3-band EQ controls on the pedal. You can adjust the signal power by using the Gain knob. It has Bass, Middle and Treble controls, depending on the amplifier/speaker characteristic, playing style and acoustic guitar's body type you can tune your sound the way you like.

You can optimize the preamp input according to your guitar pickup type, you can set Piezo or Magnetic for better signal processing. And it has the FX Loop input, you can use a TRS cable and connect any effect unit to Stageman Floor. Its also the best choice for various acoustic instruments like the violin, mandolin, banjo and many more.

Record, Jam, Create!
Push the both Chorus and Preamp footswitches, Stageman Floor turns into a looper pedal with 60 seconds recording capacity and unlimited overdubs. It's ready-to-jam at anytime, anywhere!

In Looper mode:
Preamp Footswitch controls the looper functions; Record/Play/Stop and Overdub
Reverb Knob controls the Loop volume level.


Features:

Input Gain Control
3-band EQ (Bass, Middle and Treble)
Middle Frequency Scoop Toggle
Notch Filter ON/OFF Toggle Switch with Precision Adjustment Control
Effects: Chorus, Reverb and Freeze
Input Optimization Toggle for Piezo or Magnetic Pickups
60 Seconds Looper

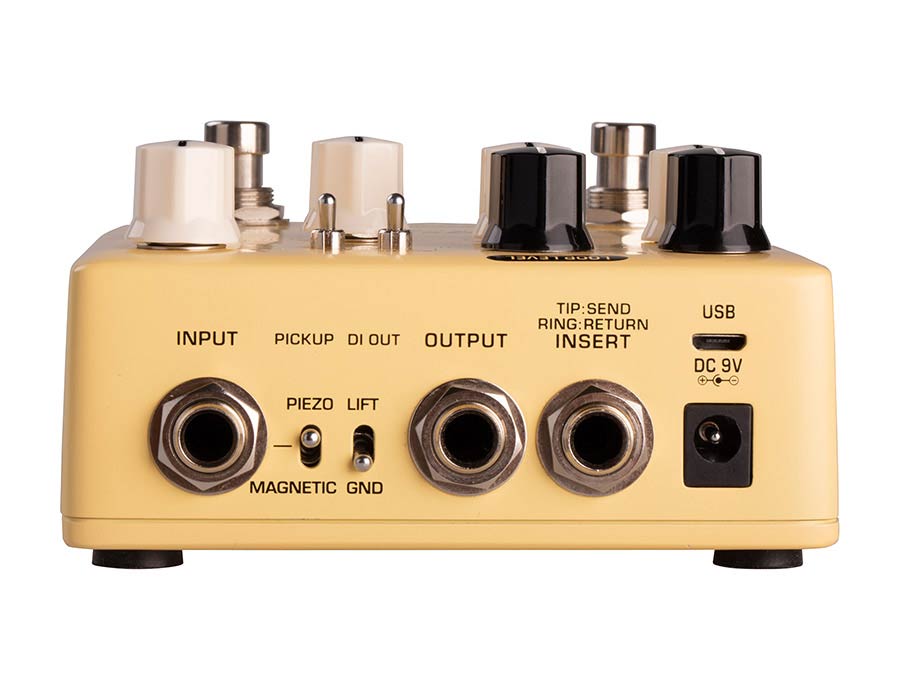

XLR DI Output
1/4 inch TRS Send / Return Inputs
1/8” Aux-in
1/8” Headphones Out
USB Input for firmware updates (Micro B USB 2.0)
