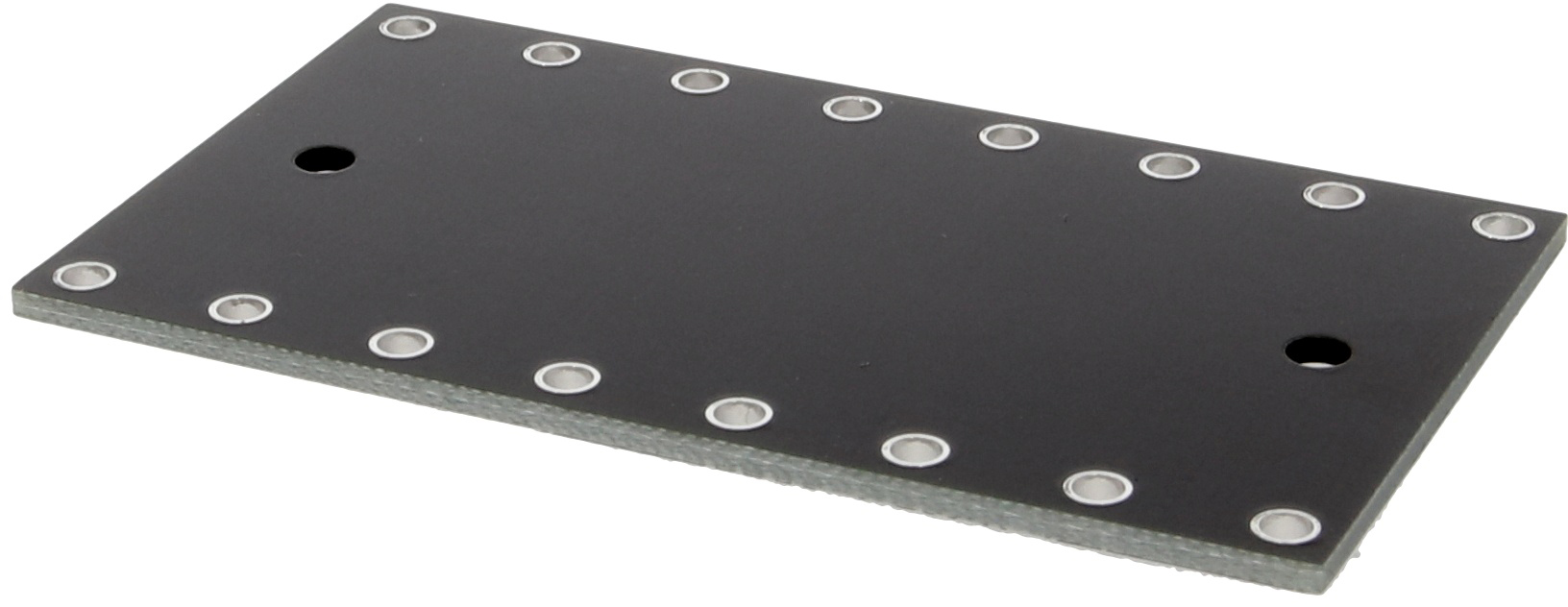

Eyelet Board Wide Layout 2x8

Eyelet Board Wide Layout 2x8

(0 reviews)

PCBs with similar styling to the eyelet/fiberboard used in vintage equipment. The spacing between pads is 9,1mm horizontally and 34,4mm vertically. The two mounting holes have a 3,2mm diameter to fit M3 or 4-40 hardware.

  • 2 rows of 8 eyelets (16 total)
  • 9.1mm x 34.4mm eyelet spacing
  • 69.42mm x 40.1mm board
  • 54.6mm spacing for 3.2mm mounting holes
  • Great fit for 1590P1, Gorva S90, and YY slanted enclosures

    • SKU SKU 74779
    Weight 5,00 g
    360 Image 360 degrees image
    Our price: €3,22
    including VAT 19% , [plus shipping]
     Delivery time: 4-5 days*
