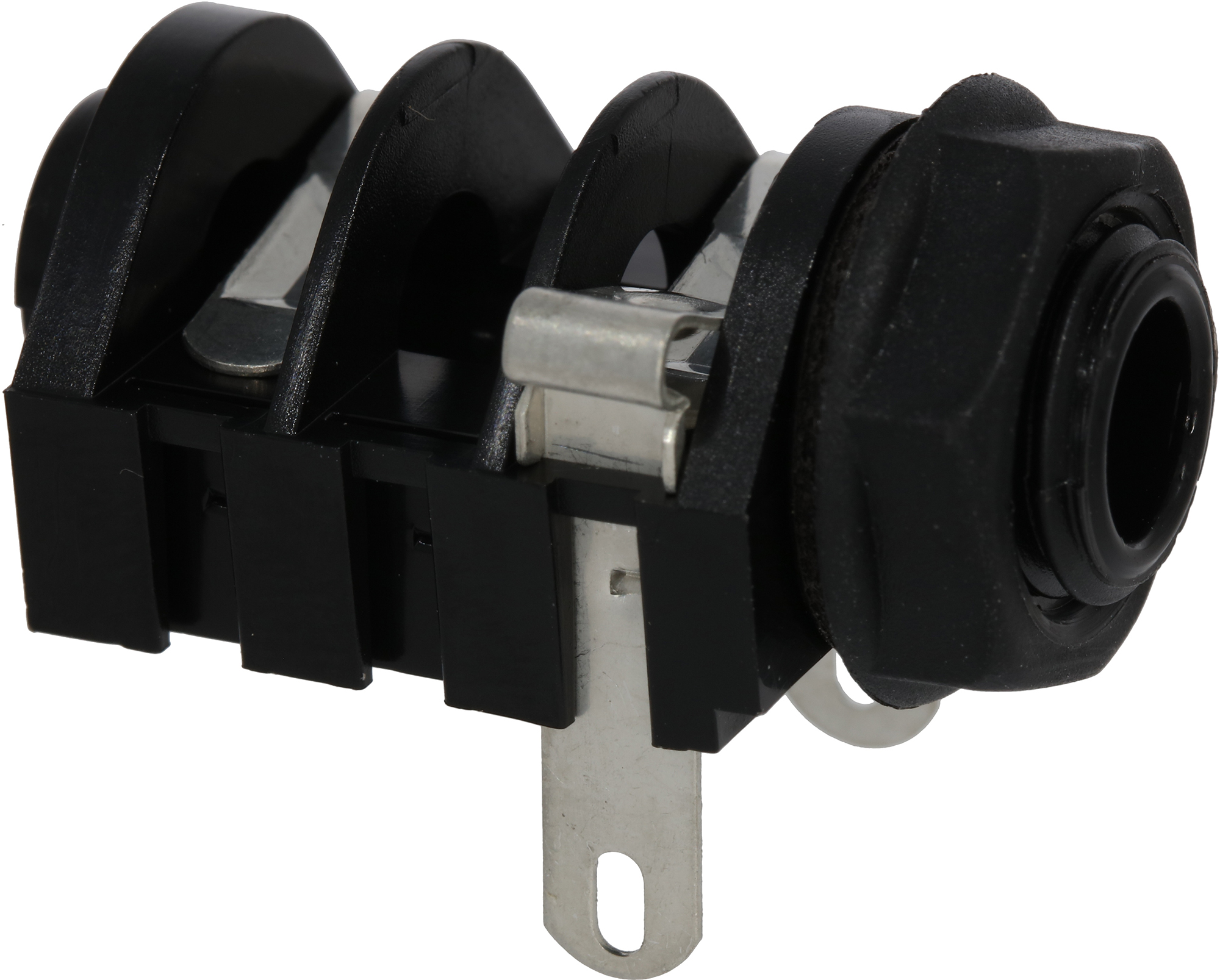

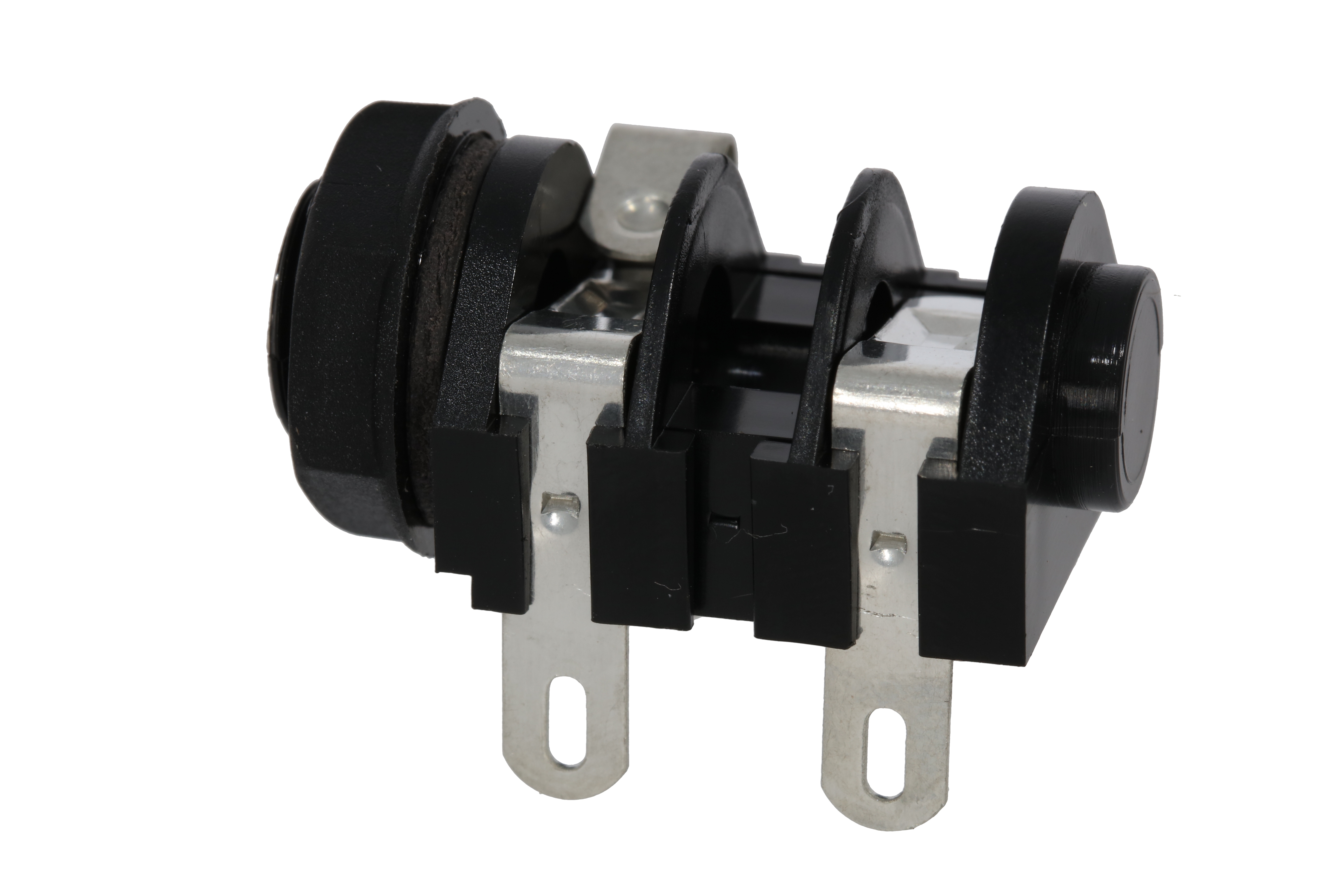

Cliff Mono Switched Make Sleeve

Jack with black nut, Solder Lugs, Switched, Make Sleeve, made by Cliff. Used in many vintage pedals and amplifiers. The make switched sleeve connects and disconnects the battery in many vintage fuzz pedals such as the Supa Fuzz, nearly all versions of the Tone Bender, and the Zonk II (Ge).

Specifications:

Low-noise Ni-Ag Alloy Self-Cleaning Contacts for superior performance and reliability

Tough, molded grade 1 black Nylon body.

Made in the U.K.

Supplied with a black nylon hexagonal mounting nut

Designed to receive both mono and stereo ¼ inch (6,35mm) jack plugs

Withstand Voltage: 2000VDC Min.

Maximum Current: 5A

Temperature Rating: -10°C ~ +70°C

Life (Minimum): 10,000+ Operations

Nominal Contact Resistance: < 50 mΩ

Item Height: 23,0mm

Item Length: 228mm

Item Width: 20,1mm

Nut Diameter: 11,3mm

SKU SKU 77828

Weight 5,00 g

360 Image

Manufacturer Cliff Electronic Components Ltd., 76 Holmethorpe Avenue, Holmethorpe Industrial Estate, REDHILL, Surrey. RH1 2PF, Grossbritannien, sales@CliffUK.co.uk

Importer Banzai Music GmbH, Benzstr. 46-50, 12277 Berlin, Deutschland, support@banzaimusic.com

Our price: €3,19
including VAT 19% , [plus shipping]
