AS3340AD

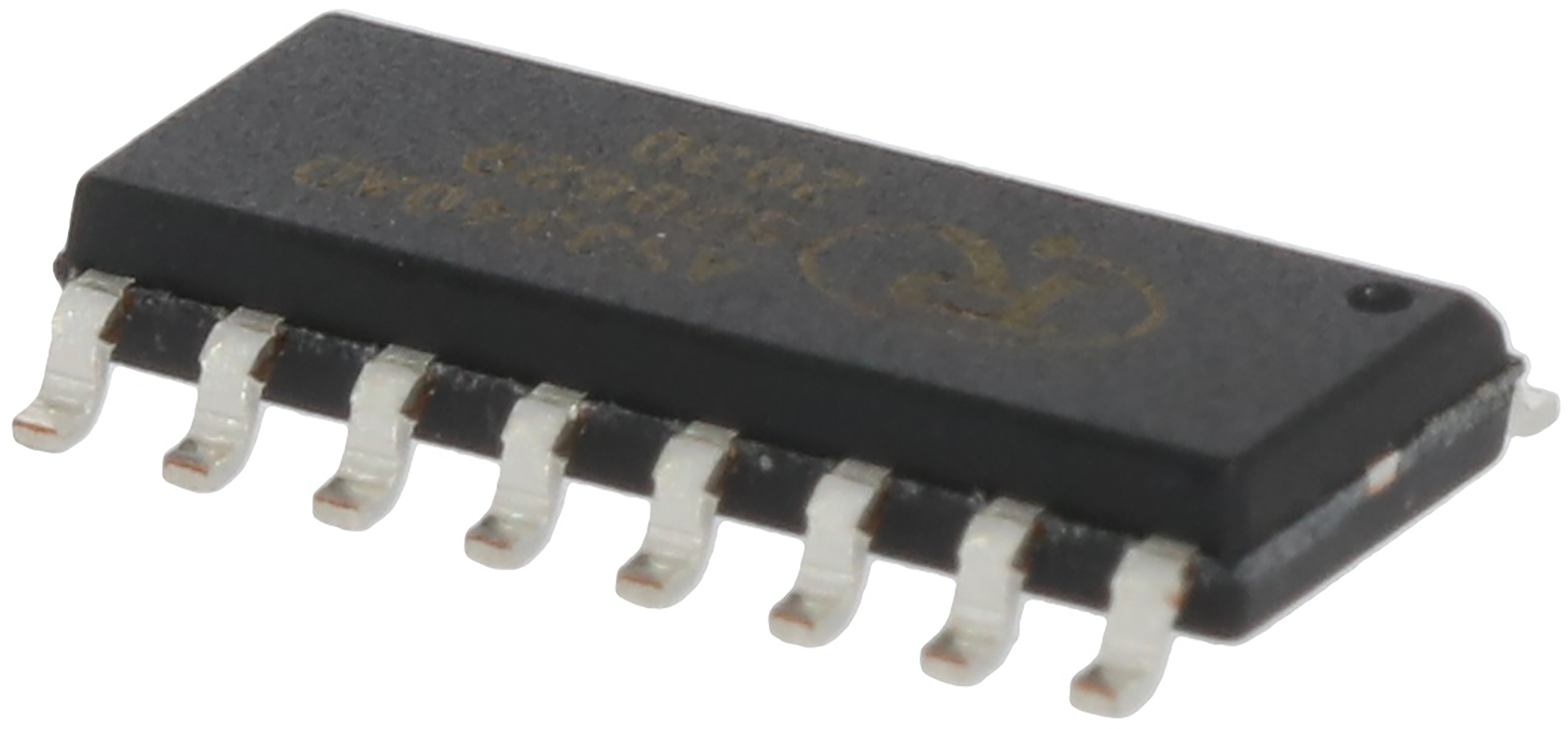

The ALFA AS3340AD (SOIC-16) chip is Alfa's modern equivalent of the famous CEM3340 voltage-controlled oscillator. It provides Ramp, Pulse/Square, and Triangle outputs, has inputs for oscillator sync, is temperature compensated and stable, and provides excellent 1V/Oct tracking. In short, it's everything you need from an analog oscillator, on a chip. There hasn't been a better design than the 3340.
Please note that Alfa recommend a 51K resistor on the pulse output in place of the 10K resistor that the CEM3340 used. There seem to be some subtle differences between the Alfa chips and CEM originals, particularly with respect to pulse width. We've had one or two reports of difficulties replacing dead/missing CEM3340s with AS3340s. For this reason, if you're repairing a vintage synth, we recommend using CEM3340 Rev.Gs rather than replacing with Alfa AS3340s.
SKU
SKU 58902
Weight
1,00
g
360 Image
Manufacturer
ALFA RPAR AS, 140 Ropazu Str., Riga, LV-1006, Lettland, alfa@alfarzpp.lv
Our price:
€
7,06
including VAT 19% ,
[plus shipping]
Quantity
Price*
5-9 Items
€
6,75
10-24 Items
€
6,44
25-49 Items
€
6,14
50-99 Items
€
5,83
100+ Items
€
5,52
*Note:
including VAT ,
[plus shipping]
Delivery time: 4-5 days*
Qty
1
Add to cart
Add to wish list
Ask a question about this product
