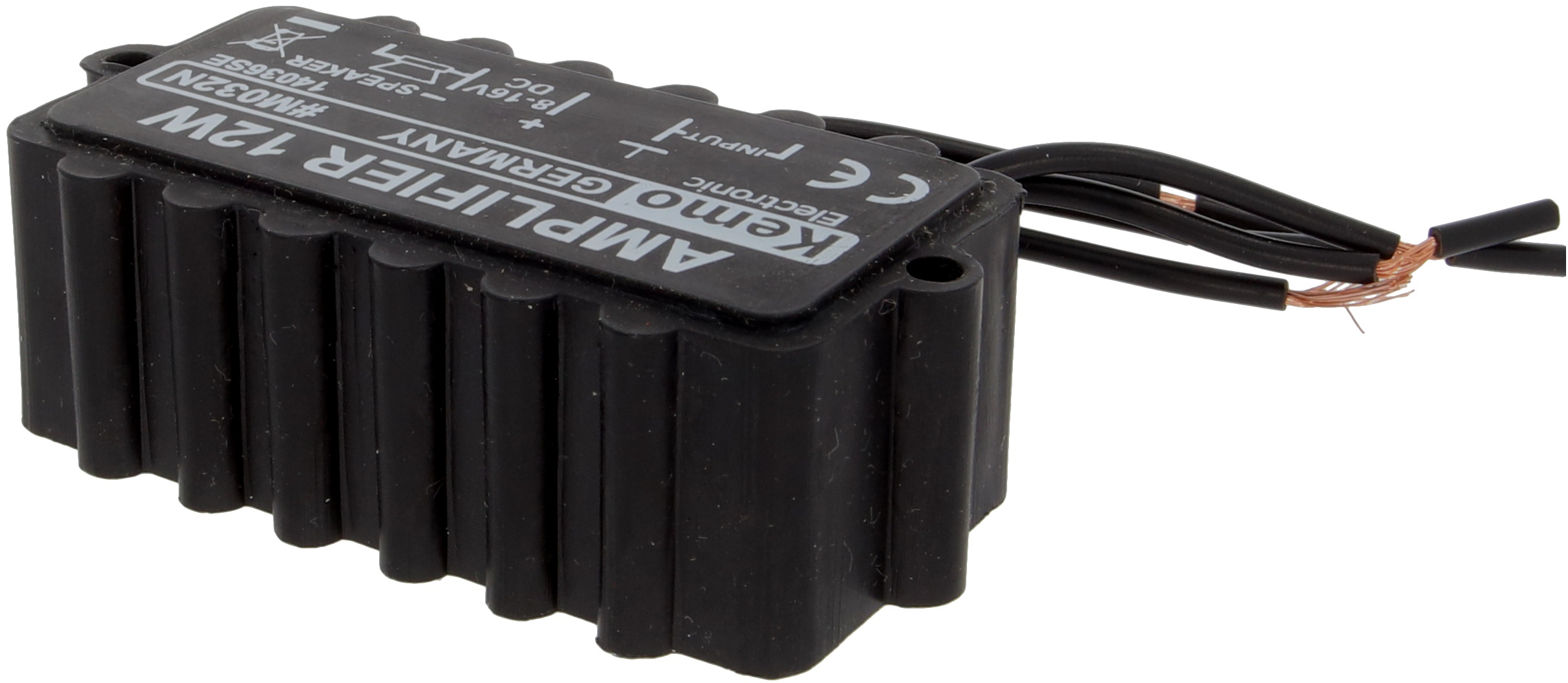

Amplifier 12W Universal

Amplifier 12W Universal
Robust amplifier module for universal use. The module is cast humidity-proof and shake-proof. The casting com

Technical Data:
  • Operating voltage: 8 - 16 V/DC
  • Current consumption: max. 800 mA
  • Input sensitivity: < 80 mV
  • Loudspeaker connection: 4 - 16 ohm
  • Music power: max. 12 W with 16 V at a 4-ohm loudspeaker
  • Frequency response: approx. 40 - 20.000 Hz
  • Dimensions: approx. 70 x 36 x 23 mm (without fixing straps)

    • SKU SKU 60470
    Weight 65,00 g
    360 Image 360 degrees image
    Manufacturer Banzai Music GmbH, Benzstr. 46-50, 12277 Berlin, Deutschland, support@banzaimusic.com
    Our price: €12,03
    including VAT 19% , [plus shipping]
     Delivery time: 4-5 days*
