Alpha 24-SPST-50k REV log

Alpha 24-SPST-50k REV log

(0 reviews)

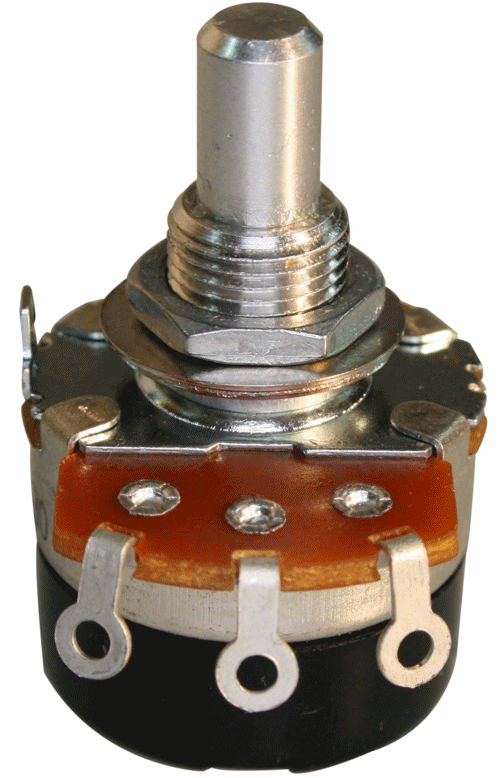

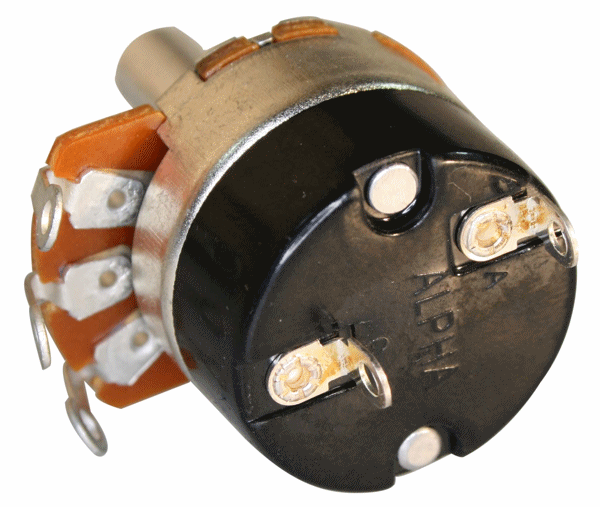

Alpha 24mm, full shaft, mono potentiometer with solder lugs and SPST turn-on switch.

Specifications:

  • Mono
  • SPST turn-on switch
  • Metal axis, full shaft
  • Material: Carbon Composition
  • Terminal type: solder lugs
  • Body (DxH): 24x20mm
  • Power rating: 0,5W
  • Rated voltage: 500VDC
  • Tolerance: +/- 20%
  • Rotation angle: 300 degrees +/- 5%
  • Breakdown voltage: 500VAC for 1 minute
  • Axis length (including thread): 15,5mm
  • Thread length: 7mm
  • Thread diameter: M8 x 0,75

  • SKU SKU 51288
    Weight 20,00 g
    Our price: 6,39
    including VAT 19% , [plus shipping]
    Quantity Price*
    3-5 Items 6,07
    6-9 Items 5,81
    10+ Items 5,63

    *Note: including VAT , [plus shipping]

     Delivery time: 2-3 days*
