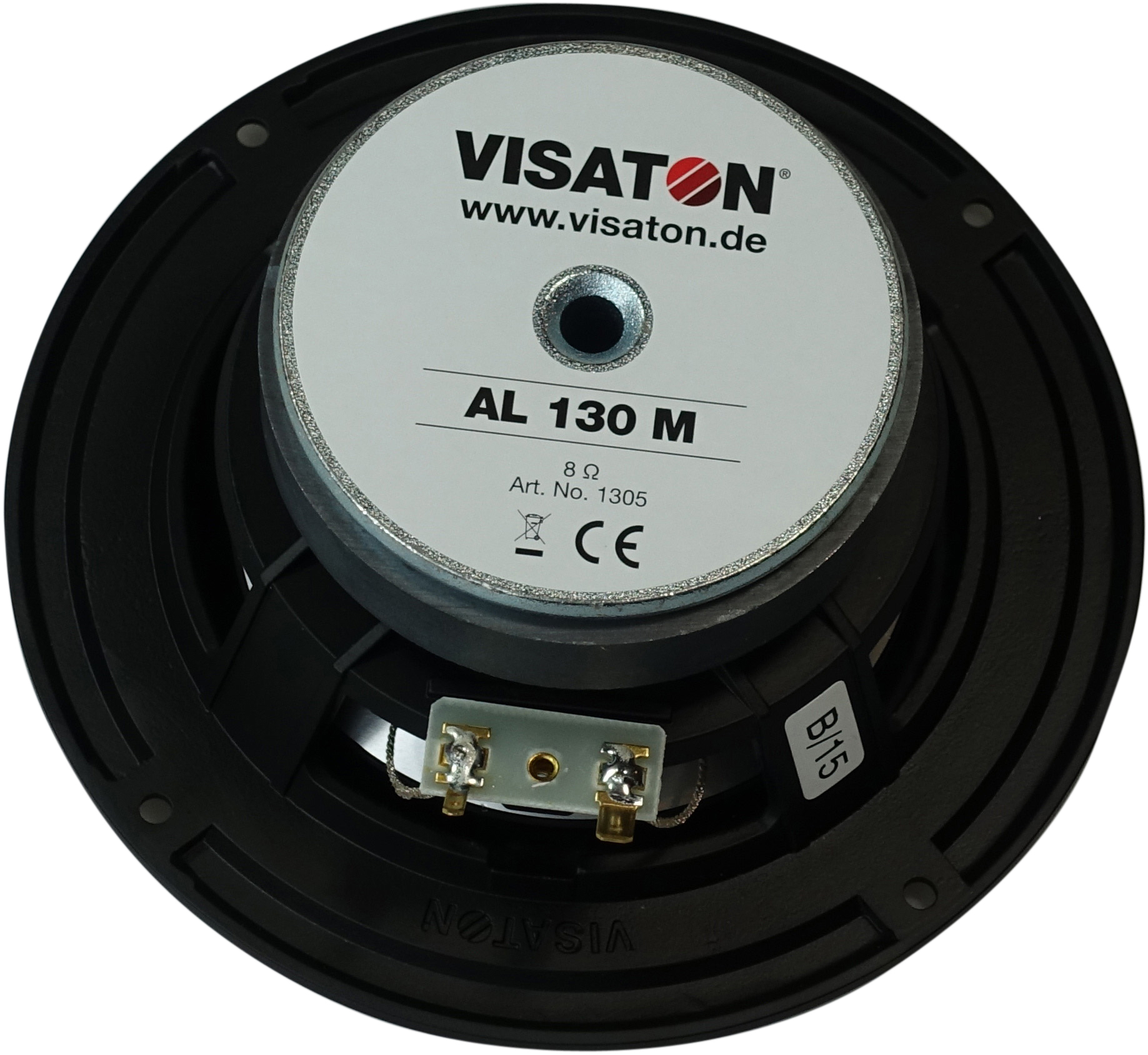

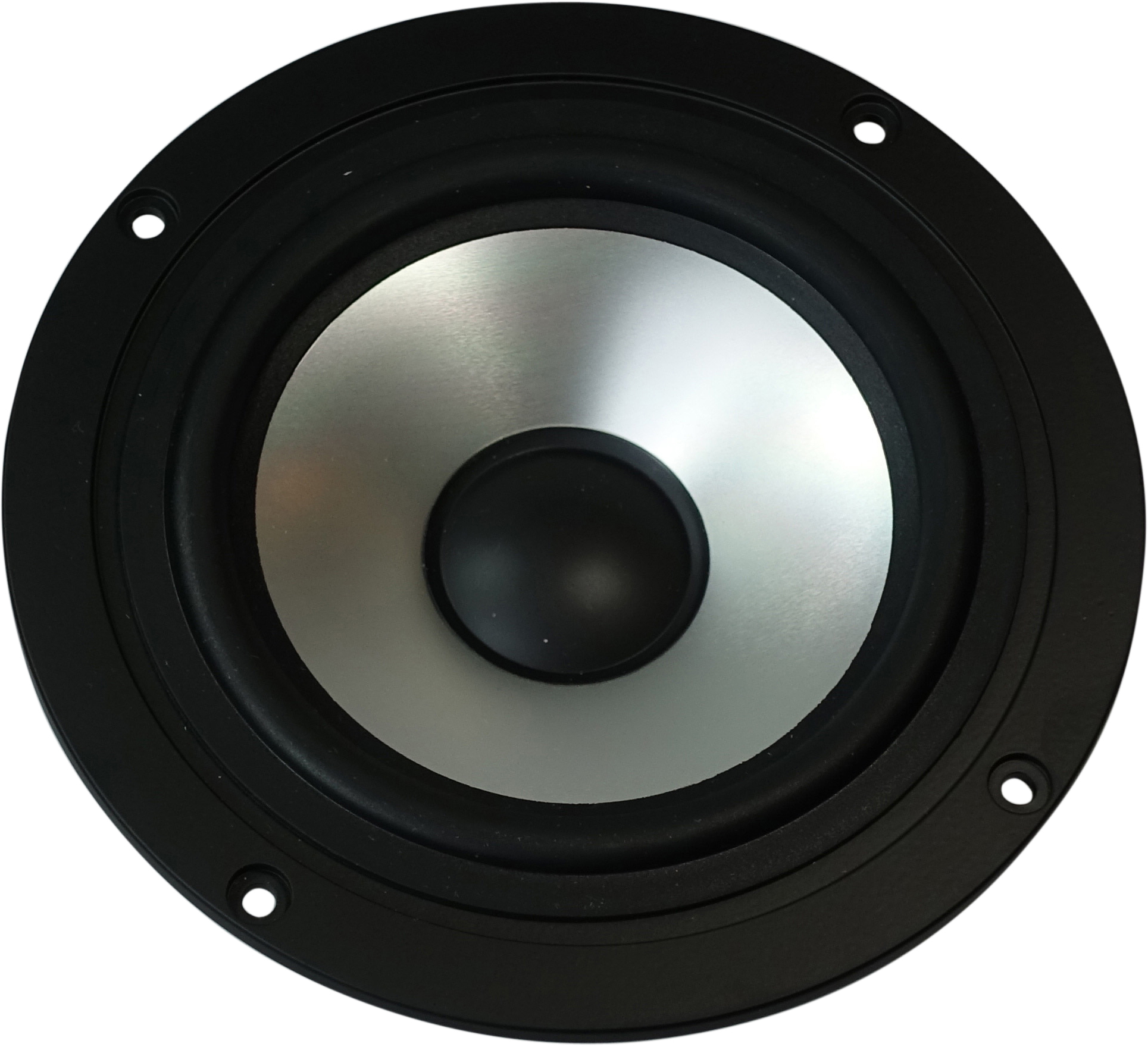

Visaton AL 130M - 5 inch

Visaton AL 130M - 5 inch. High End midrange driver with stiff, anodized aluminium cone, solid aluminium die-cast basket and elastic rubber surround. Extremely low mechanical and electrical losses due to vented pole plate and vented damper. Capton voice-coil and impedance control ring. Due to the short voice-coil, the efficiency, compared to the AL 130 - 8 Ohm, has been increased by 2-3 dB above 500 Hz. Suitable as midrange driver in 3-way High End applications for a frequency range up to 5000 Hz.

Technical Data

Rated Power: 60 Watts

Maximum Power: 90 Watts

Nominal impedance: 8 Ohms

Frequency response: fu-8000Hz

Mean sound pressure level: 90dB (1W/1m)

Cutout diameter: 115mm

Voice coil diameter: 2,5cm
