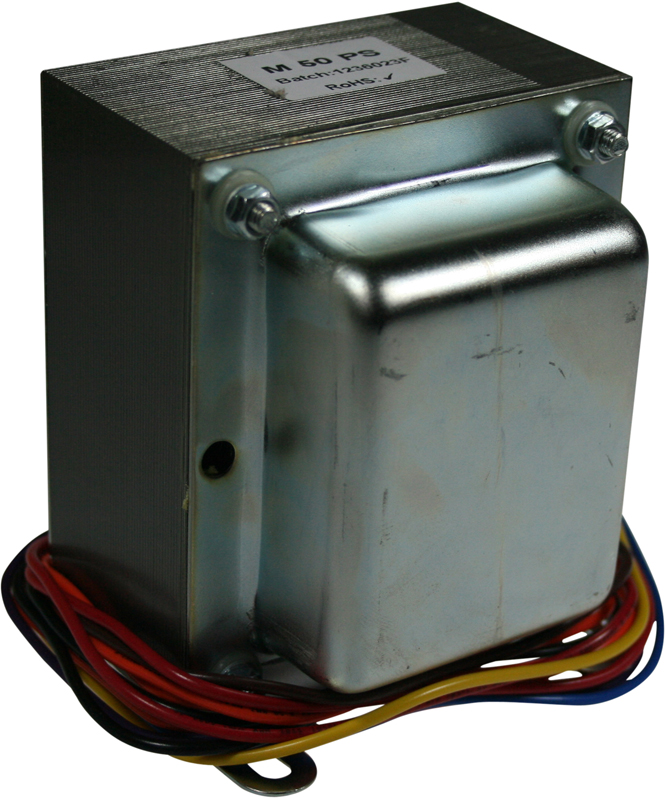

Transformer T-PWR-M50PS

Direct replacement Power Transformer. Application: Marshall 50W, vertical version (standing upright). Mod. 1986, 2204, made in 1970 - 1989.

upright Mod. for Marshall 50W Models from 1970-1989, JMP, JCM800 like Model 1986, 1987, 1987X, 2204, 2205, 4010, 4104, 4210, 4212. Fits 2550, 2554 etc. too.
Replaces 1202-324 and 1202-164 along with the TXMA00004

mounting center: 79 x 83mm
mouting slots: 6x11mm
lamination: 4 1/2 inch

can also be converted to drop-through mounting with one TFC-41.2-D end bell on top.

Primary:
0V Blue
120V Black
220V Purple
230V Orange
240V Yellow

Secondary:
350V@200mA Red
0V Black
350V Red

3,15V@5A Orange
0V Brown
3,15V Orange
