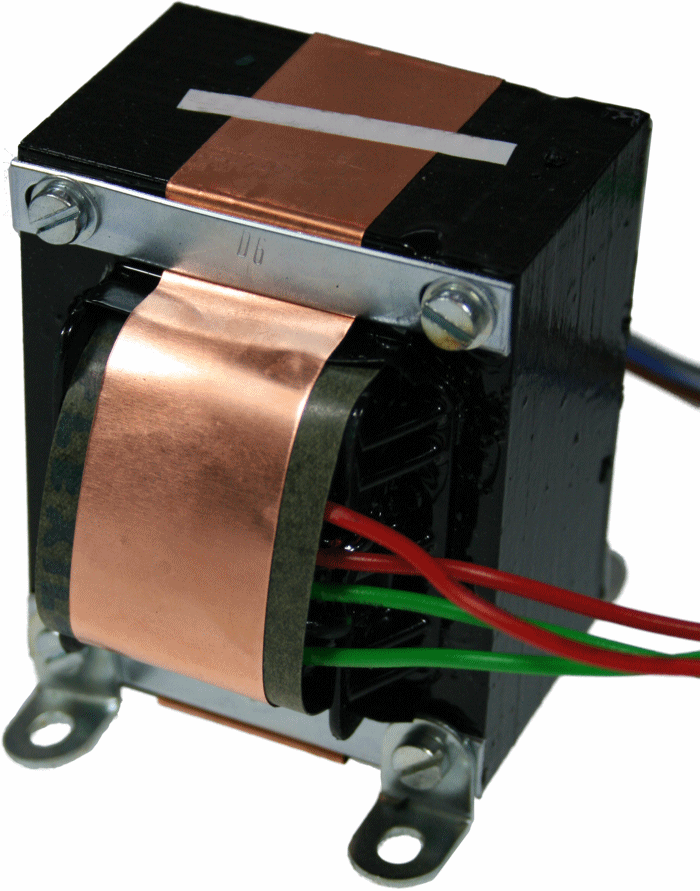

Transformer T-PWR-561046

Direct replacement Power Transformer. Application: Mesa Boogie Rectifier Recording Preamp.

Exportversion, replaces the 120V domestic version (561045)
Primary: 230/240V
W x H x D: 64mm x 78mm x 85mm
mounting on 48mm x 56-64mm (oblong hole)

Primary:
0V BLUE
230V BROWN
240V GREY

Secondary:
370V@50mA RED
0V RED

14V@2.5A GREEN
0V GREEN
