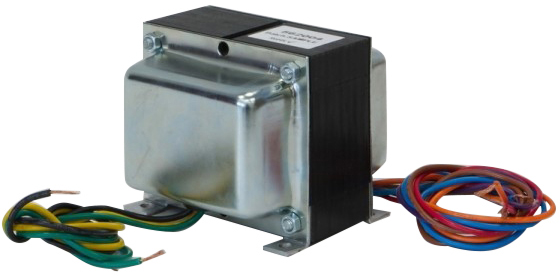

Transformer T-OP-562004

Direct replacement Output Transformer, 75W. Output Transformer for Mesa Boogie Simul-Class Models: MK2C, MK3, MK4 , MKV, Electra-Dyne, Simul- Satellite. Also used in the 295 Power Amp, 2:90 Simul Class, 2: Ninety and 395 Power Amp.
75W max. Raa approx. 3.6k


M6 Lamination: 3,75 inch, Stacking: 1 9/16 inch

Mounting on 79mm x 57-70mm

Primary: Orig. colors in brackets
A1 6L6 Blue (Blue)
A1 EL34 Violet (Blue/White)
B+ Red (Red)
A2 EL34 Orange (Brown/White)
A2 6L6 Brown (Brown)

Secondary:
0 Ohm Black (Black)
4 Ohms Green (Green)
8 Ohms Yellow (Yellow)
