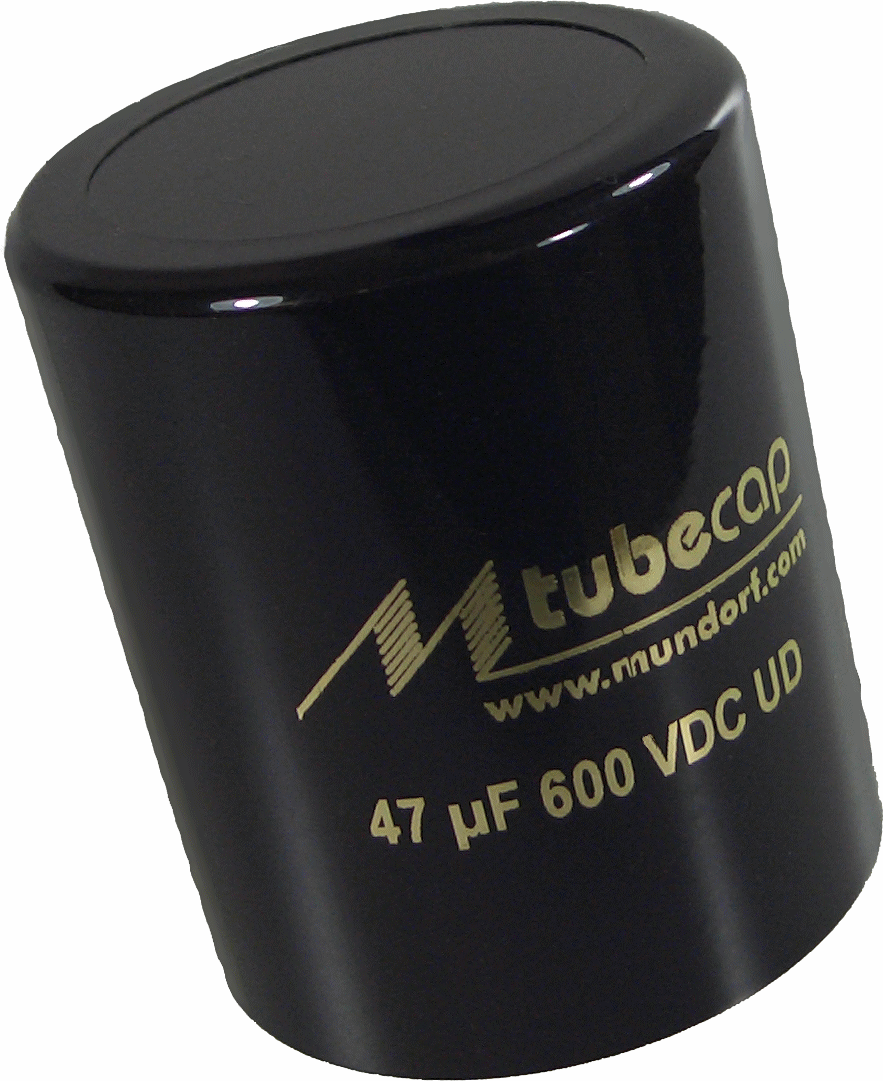

Mundorf TubeCap 47uF 600V

Mundorf TubeCap 47uF 600V
(0 reviews)

The Mundorf TubeCap is made of next generation metallized polypropylene foil. The material is extremely thin, allowing compact sizes and self-healing. Due to a special formula the self-healing feature is better than usually found in self-healing caps. The TubeCap combines high voltage with low LSR and ESR. It has been developed as high-quality alternative to Aluminum-electrolytic capacitors. It is a high quality replacement and upgrade for existing tube amps and a very good choice for new audiophile designs.
  • Material: Polypropylene
  • Voltage: 600VDC
  • Long life, does not dry out like electrolytic caps
  • Terminal diameter: tinned copper wire 1,4 mm. RM27,5
  • Size: 45 x 53 mm
  • Tolerance: 5%
  • loss angle: tan(delta) = 0,005 at 1kHz.
  • Sealed using PU UL 94-V0
  • Life: 100000h at hot spot (60 degrees Celsius)
  • Failure rate: 1 fit

  • SKU SKU 25919
    Weight 110,00 g
    Our price: 36,58
    including VAT 19% , [plus shipping]
     Delivery time: 4-5 days*
