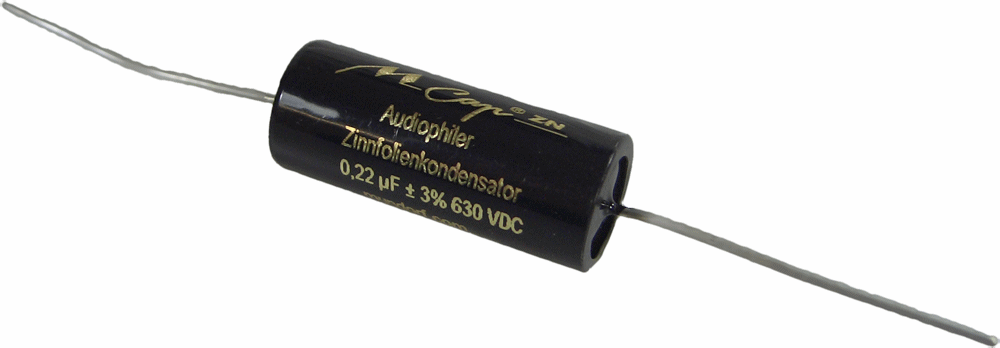

Mundorf ZN630-0,22 0,22uF 630V

Mundorf ZN630-0,22 0,22uF 630V

(0 reviews)

The Mundorf MCap ZN is made of tin foil. High quality polypropylene foil coupled with tin plating is manufactured into a transparent sounding cap. The tin is significantly reducing microphonic effects by reducing the movement of the foil. The effect, simiar to what is known from vacuum-impregnated inductors, is providing more threedimensional transparency. The higher conductivity of the metal foil results in a low loss angle (about 10 times lower than what is seen with MKP capacitors. Wherever small signals are being processed the Mcap-ZN is a good choice.
Specifications:
  • Material: Polyesther, tin 6um
  • Voltage: 630VDC
  • Terminal diameter (diameter x length): 0,8x25 mm.
  • Size (diameter x length): 13 x 29 mm
  • Tolerance: 2%, typ. 1%
  • loss angle: tan(delta) = 0,0002 at 1kHz and 0,0001 at 10kHz.

  • SKU SKU 25982
    Weight 3,00 g
