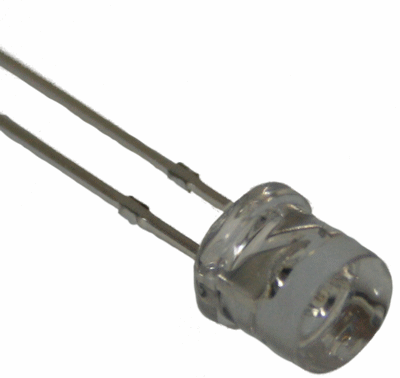

LED 5mm Wide Angle Blue

LED 5mm Wide Angle Blue

(0 reviews)

Specifications:

  • Peak Wave Length (nm) : 460 ~ 470
  • Forward Voltage (V) : 3.2 ~ 3.6
  • Reverse Current (uA) : <= 30
  • Luminous Intensity Typ Iv (mcd) : 4000(Typical) ~ 5000(Max)
  • Life Rating : 100,000 Hours
  • Viewing Angle : 85 ~ 100 Degrees
  • Absolute Maximum Ratings ( Ta = 25°C )
  • Max Power Dissipation : 80 mw
  • Max Continuous Forward Current : 30 mA
  • Max Peak Forward Current : 75 mA
  • Reverse Voltage : 5 ~ 6 V
  • Lead Soldering Temperature : 240°C ( < 5 Sec )
  • Operating Temperature Range : -25°C ~ °C
  • Preservative Temperature Range : -30°C ~ ?°C

  • SKU SKU 24686
    Weight 0,20 g
    Our price: 0,49
    including VAT 19% , [plus shipping]
    Quantity Price*
    5-9 Items 0,46
    10-24 Items 0,45
    25+ Items 0,43

    *Note: including VAT , [plus shipping]

     Delivery time: 4-5 days*
