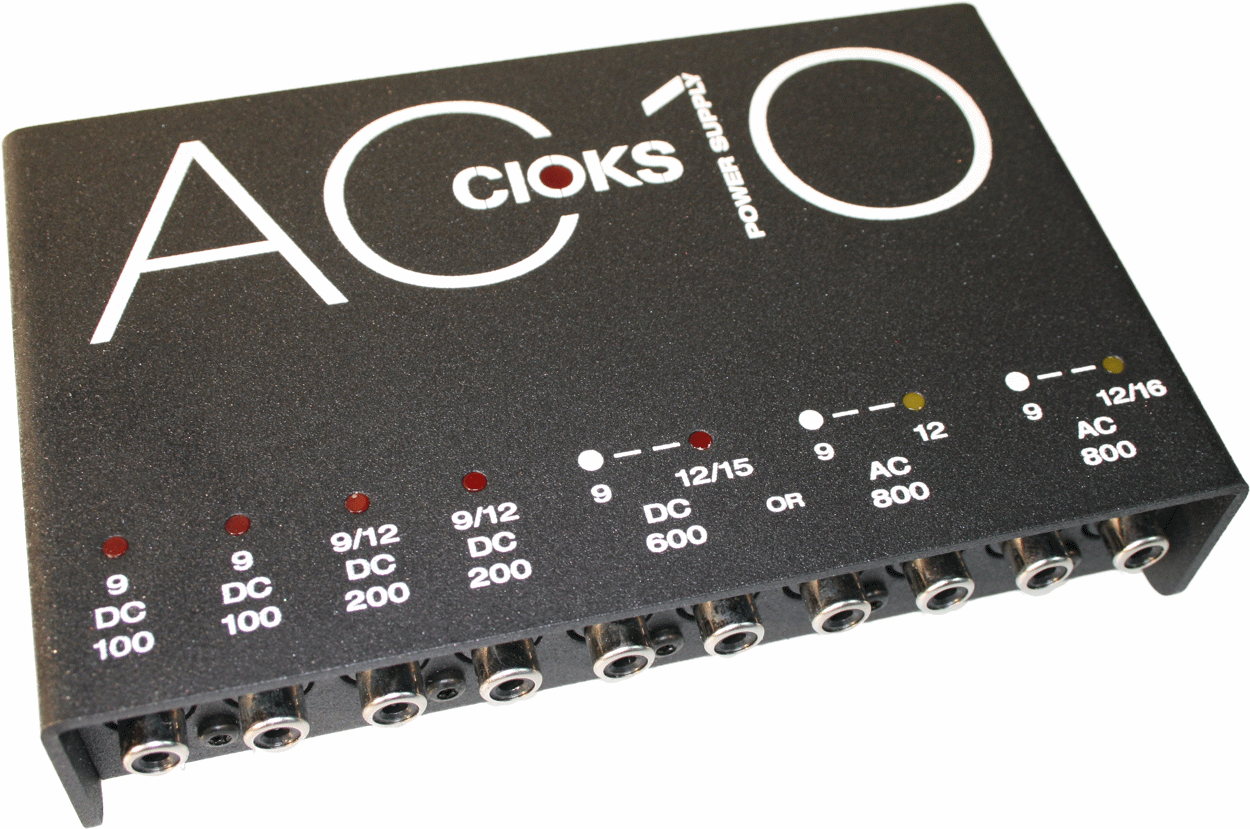

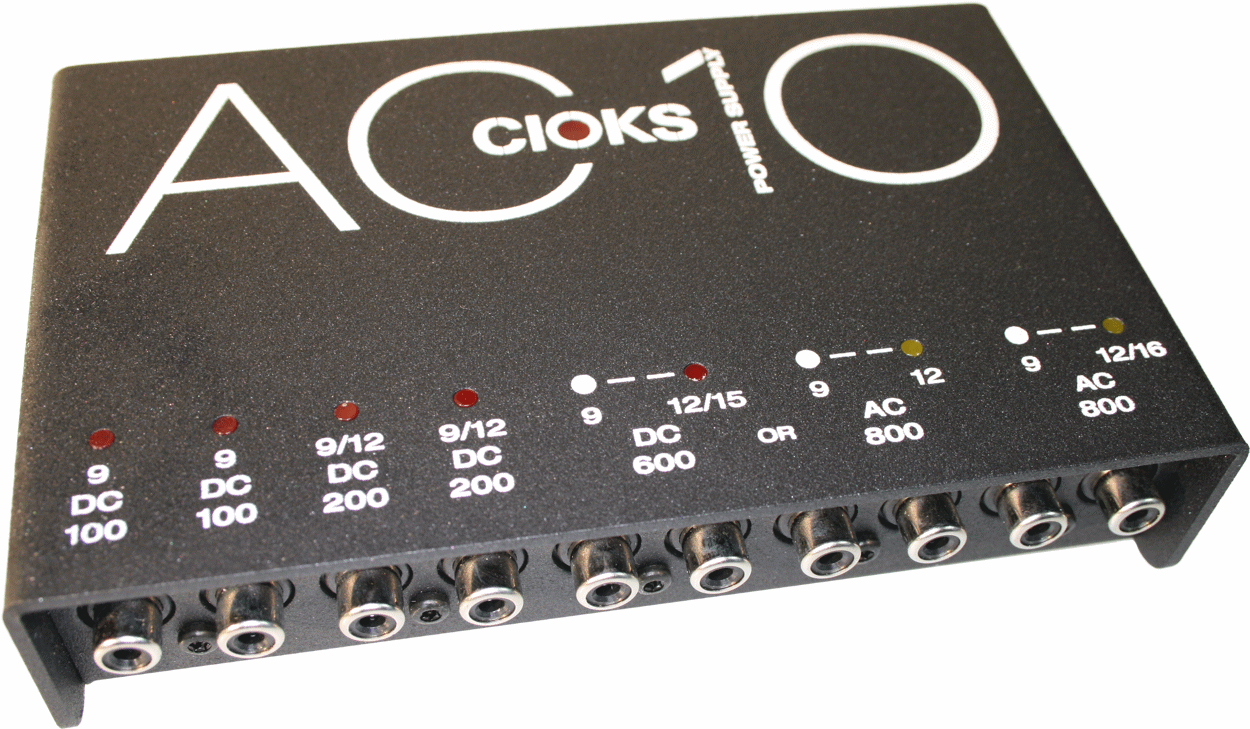

Cioks AC10

AC10 is a member of CIOKS professional range of dedicated multi-output power supplies for effect pedals. Its two powerful AC sections with 800mA each offer voltages 9, 12 and 16V AC. If you have one or two pedals in your setup, which requires an AC power source, AC10 is the right choice. It powers all vacuum tube pedals from Electro-Harmonix, Kingsley, older Blackstar HT series, the Whammy or JamMan from DigiTech, Tube Rotosphere, Tubeman, Tube Factor or Replex from Hughes & Kettner or EBS Valve Drive just to mention a few. If you only have one AC pedal, you can convert one of the AC sections into a powerful DC section offering 600mA with voltages 9, 12 and 15V DC. The first 4 isolated outlets offering a total of 600mA are ideal for pedals using 9 or 12V DC at lower currents op to 200mA.

Features:

10 outlets configured in 6 isolated sections

toroidal transformer with additional magnetic field shielding

2 powerful AC sections with 800mA each

9, 12 and 16V AC available

one AC section convertible into a 600mA DC section

15V option for Radial Tonebone pedals

short circuit protection of all outlets

advanced LED monitoring of each section

temperature monitoring

120 or 230V mains voltage operation

detachable mains power cord

a total of 16 Flex cables included

Flex cable for Electro?Harmonix vacuum tube pedals from included

one Split Flex and one Stack Flex for 18V pedals also included

mounting bracket included

durable steel enclosure with 2mm thick top


Specifications:

Outlet 1-2: 9V DC / 100mA each

Outlet 3-4: 9 or 12V DC / 200mA each

Outlet 5-6: 9 and 12 or 15V DC / 600mA*

Outlet 7-8: 9 or 12V AC / 800mA*

Outlet 9-10: 9, 12 or 16V AC / 800mA

Size: 158x98x35mm (excl. detachable rubber feet)
* only one of these two sections can be used
