Beyschlag MBB-PREC 10k

Beyschlag MBB-PREC 10k

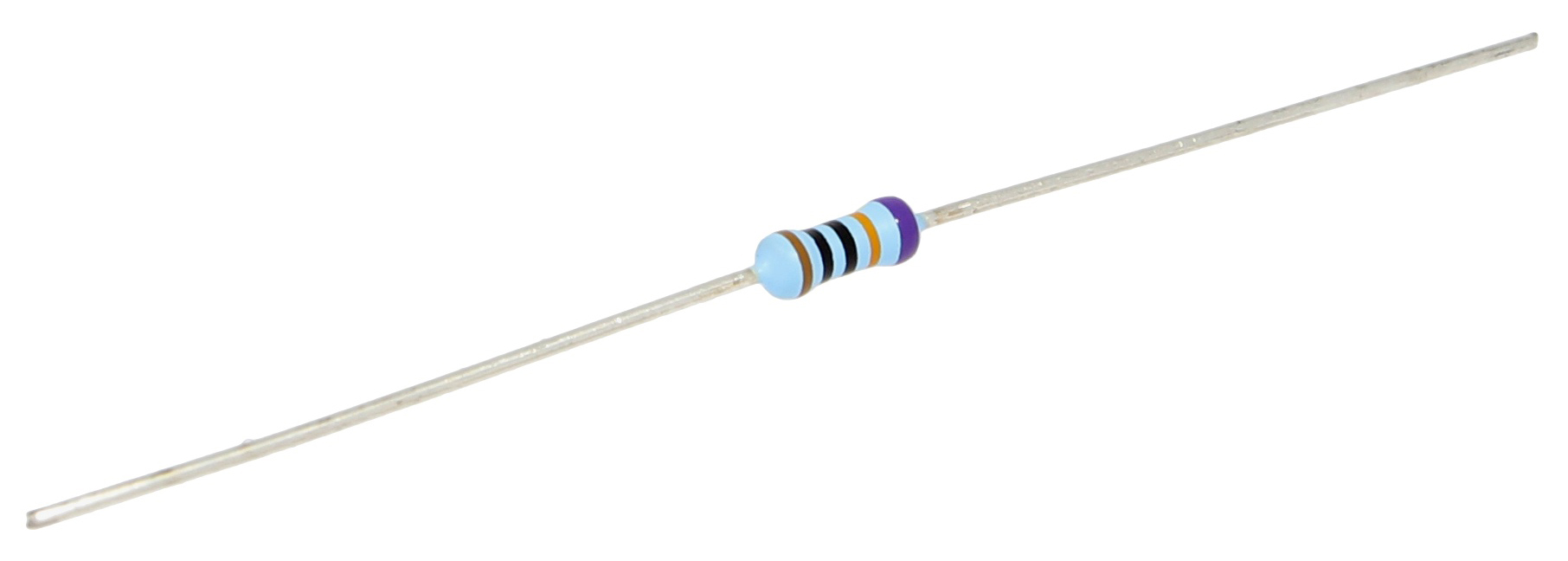

Vishay Beyschlag precision metal film resistor, approved according to CECC 40101-806. Made using advanced thin film technology.

Specifications:

  • Tolerance: 0,1%
  • Power: 0,4W
  • Package: 0207
  • Low TCR: ± 15 to ± 25 ppm/K
  • Lead (Pb)-free solder contacts
  • Pure tin plating provides compatibility with lead (Pb)-free and lead containing soldering processes
  • Compatible with “Restriction of the use of Hazardous Substances” (RoHS) directive 2002/95/EC (issue 2004)
  • Superior overall stability: class 0.05
  • Maximum operating voltage: 350V AC/DC
  • Isolation voltage (1 min.): 500V
  • Failure rate: approx. 0,3x10-9/h
  • Temperature: -55...+155°C
  • Excellent stability

    • SKU SKU 31611
    Weight 0,25 g
    360 Image 360 degrees image
    Manufacturer Vishay Electronic GmbH, Hofmark-Aich-Str. 36, 84030 Landshut, Deutschland, https://www.vishay.com/en/company/contacts/
    Our price: €0,31
    including VAT 19% , [plus shipping]
    Quantity Price*
    10-24 Items €0,30
    25-49 Items €0,29
    50+ Items €0,26

    *Note: including VAT , [plus shipping]

     Delivery time: 4-5 days*
