Alpha 24-SPST-10k lin

Alpha 24-SPST-10k lin

(0 reviews)

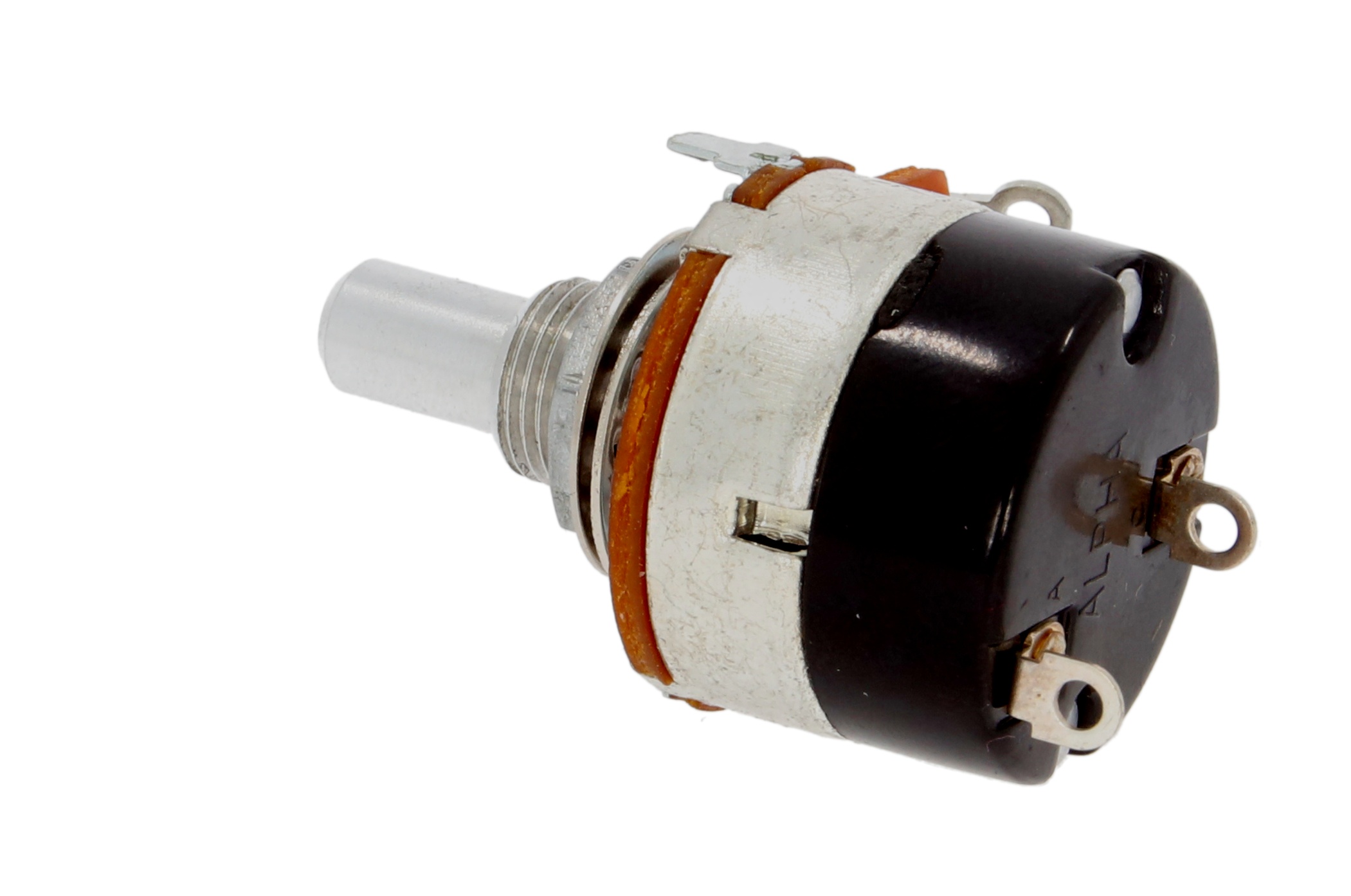

Alpha 24mm, full shaft, mono potentiometer with solder lugs and SPST turn-on switch.

Specifications:

  • Mono
  • SPST turn-on switch
  • Metal axis, full shaft
  • Material: Carbon Composition
  • Terminal type: solder lugs
  • Body (DxH): 24x20mm
  • Power rating: 0,5W
  • Rated voltage: 500VDC
  • Tolerance: +/- 20%
  • Rotation angle: 300 degrees +/- 5%
  • Breakdown voltage: 500VAC for 1 minute
  • Axis length (including thread): 15,5mm
  • Thread length: 7mm
  • Thread diameter: M8 x 0,75

  • SKU SKU 34395
    Weight 19,00 g
    360 Image 360 degrees image
    Our price: 7,26
    including VAT 19% , [plus shipping]
    Quantity Price*
    3-5 Items 6,89
    6-9 Items 6,53
    10+ Items 6,18

    *Note: including VAT , [plus shipping]

     Delivery time: 4-5 days*
