Alpha 14-20BL-10k lin

Alpha 14-20BL-10k lin

(0 reviews)

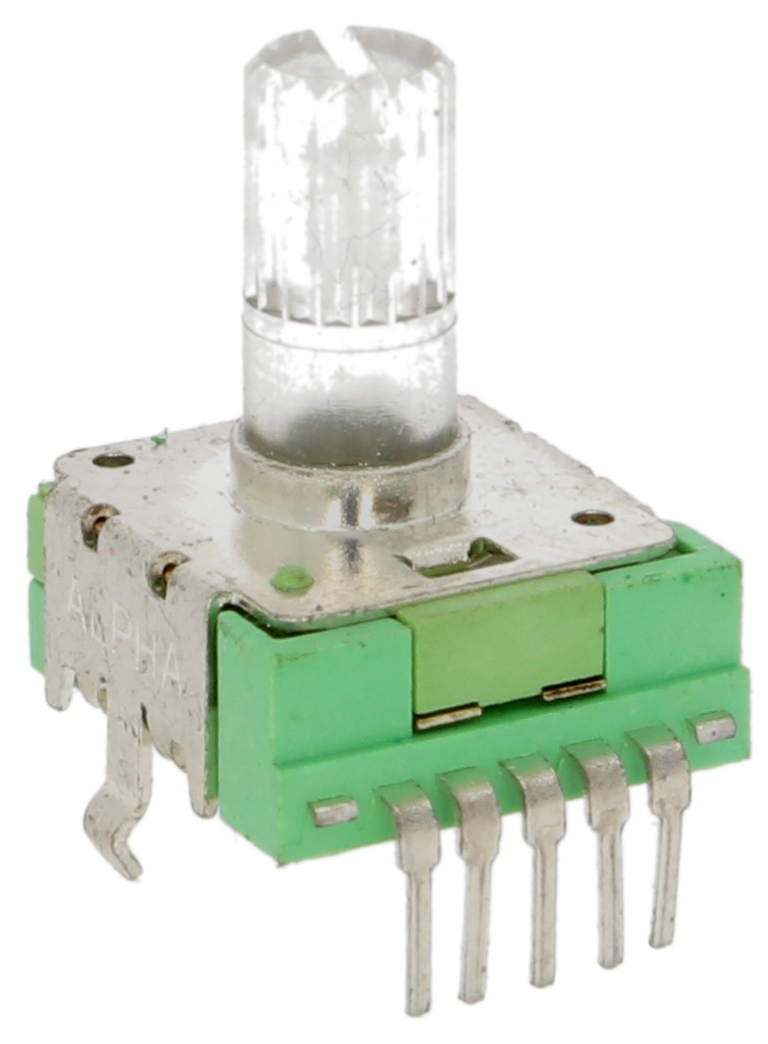

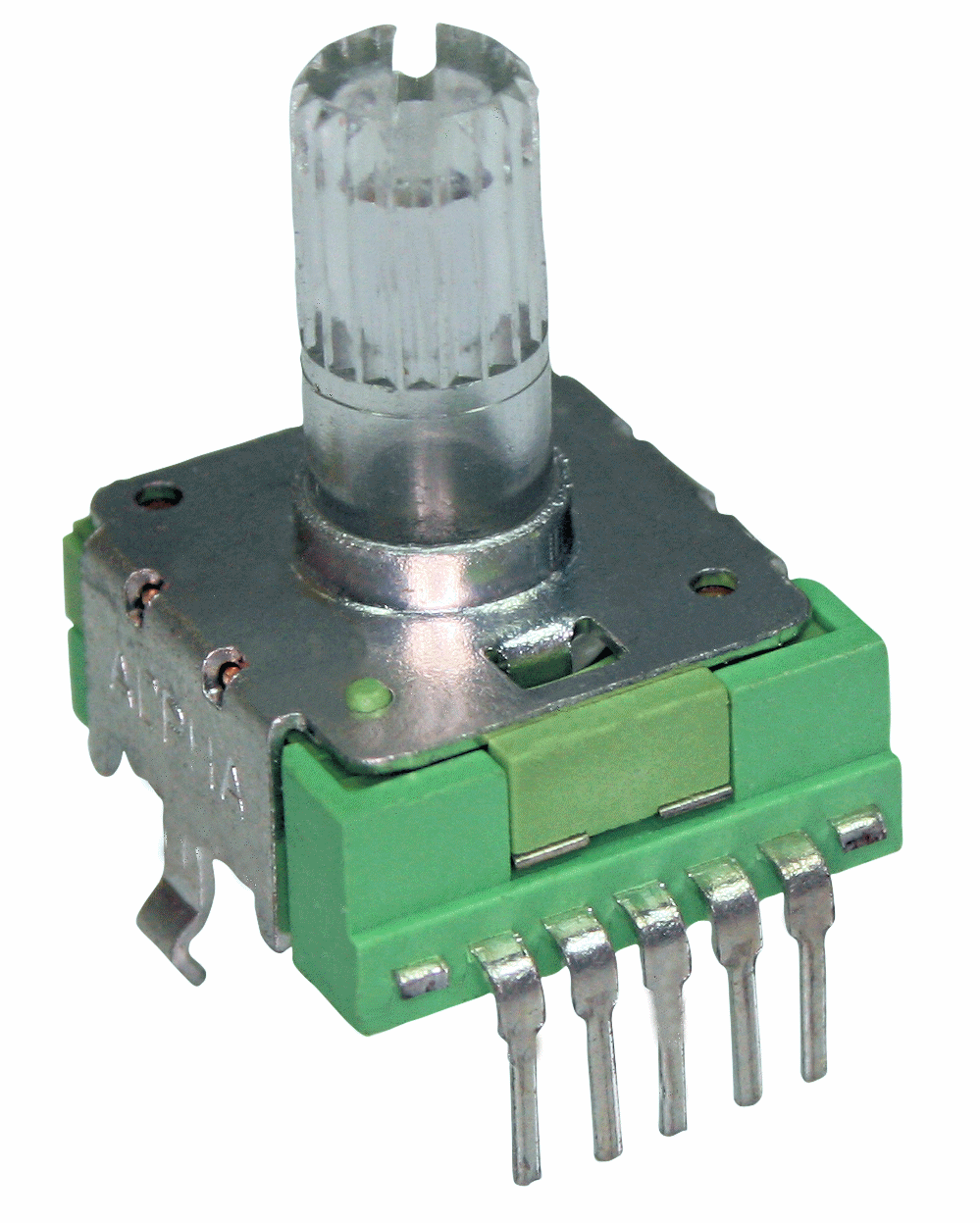

Alpha potentiometer with knurled clear plastic shaft in which an LED can be placed at the bottom to illuminate the shaft. Any color 3mm LED can be used. Mono potentiometer, PC mount. Size: 15x15mm.

Specifications:
  • Type: Mono
  • Rotation torque: 20 to 200g/cm
  • Insulation resistance: 100M Ohm at 250VDC
  • Breakdown voltage: 300VAC for one minute
  • Rotational Life: 15000 cycles
  • Rated voltage: 50V AC
  • Rated Wattage: 0,05W
  • Tolerance: +/-20%.
  • Knurled shaft fits all 6,0 and 6,3mm knobs.

  • SKU SKU 42424
    Weight 7,00 g
    360 Image 360 degrees image
    Our price: 1,80
    including VAT 19% , [plus shipping]
    Quantity Price*
    5-9 Items 1,79
    10-24 Items 1,76
    25+ Items 1,75

    *Note: including VAT , [plus shipping]

     Delivery time: 6-8 weeks*
