2SA49

2SA49

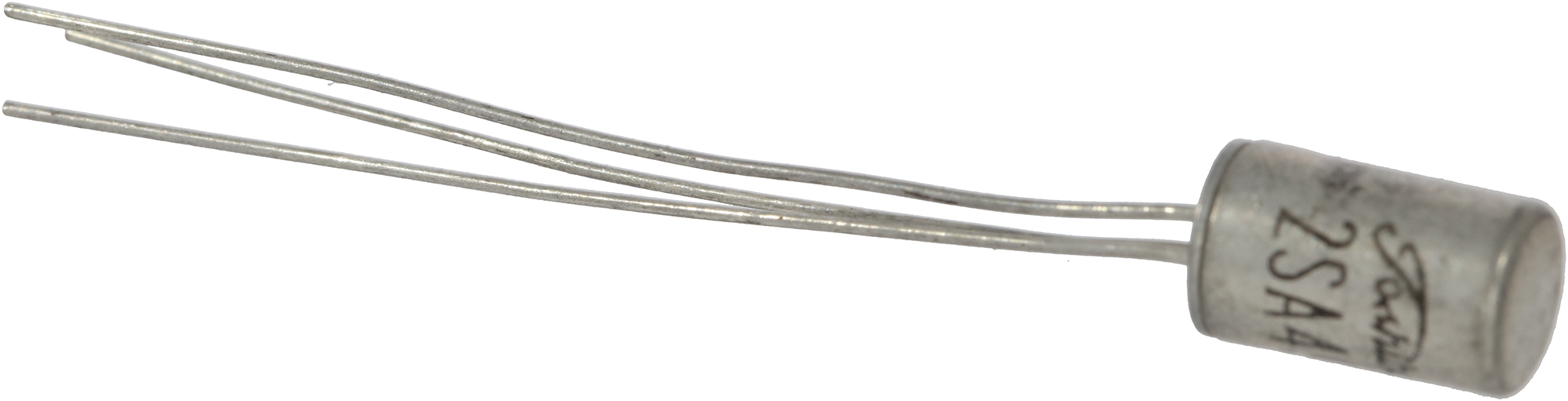

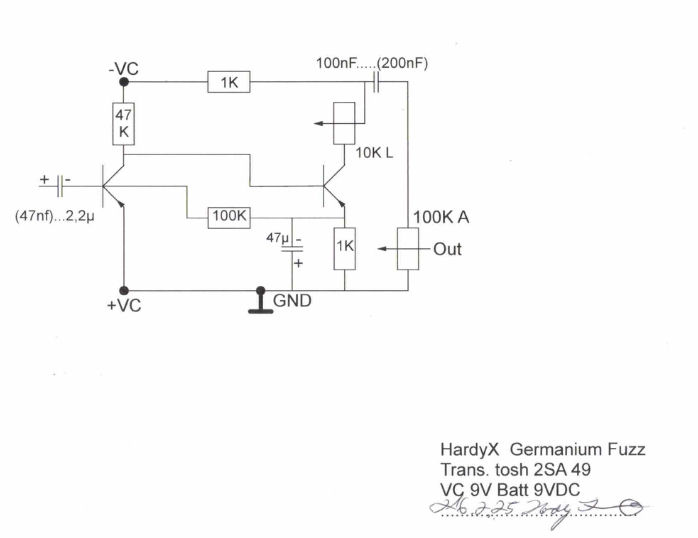

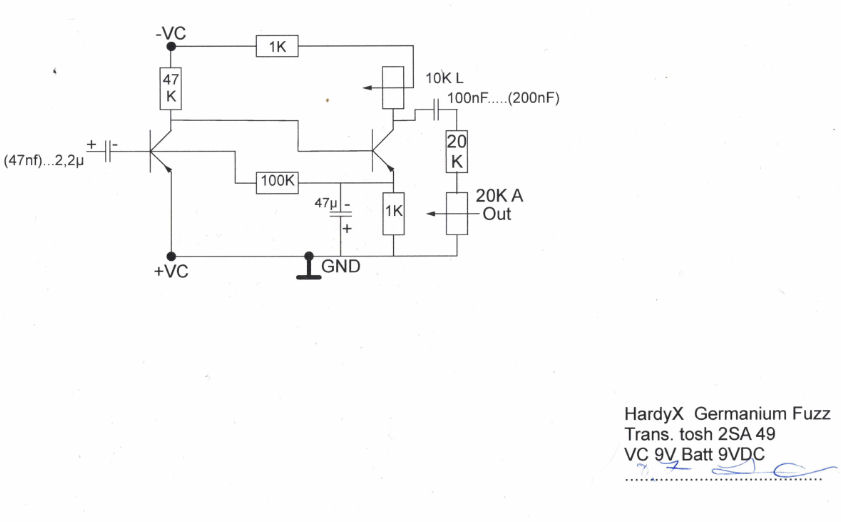

PNP Germanium Transistor. Great for Fuzz circuits. See the detailed pictures for sample circuit.

  • Maximum Collector Power Dissipation (Pc): 0.06 W
  • Maximum Collector-Base Voltage |Vcb|: 18 V
  • Maximum Emitter-Base Voltage |Veb|: 12 V
  • Maximum Collector Current |Ic max|: 0.005 A
  • Max. Operating Junction Temperature (Tj): 75 °C
  • Transition Frequency (ft): 5 MHz
  • Collector Capacitance (Cc): 13 pF
  • Forward Current Transfer Ratio (hFE), MIN: 30
  • Package: TO1

    • SKU SKU 79564
    Weight 3,00 g
    Our price: €6,90
    including VAT 19% , [plus shipping]
     Delivery time: 4-5 days*
