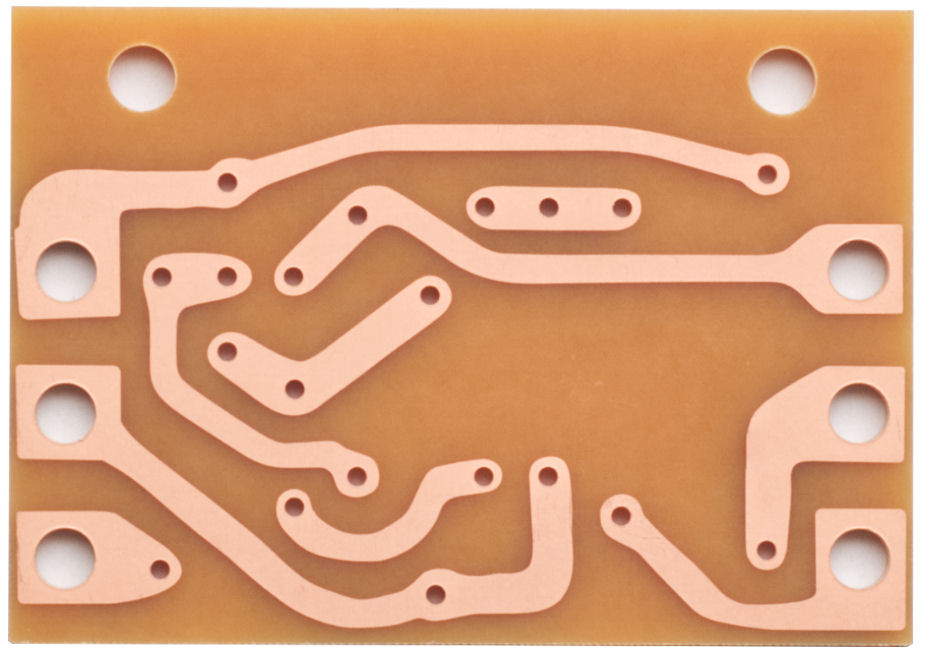

V828 Vox Tone Bender Style Board

V828 Italian fuzz circuit board made with a phenolic substrate for an even closer match to the vintage production boards. Phenolic boards are found in many vintage electronics before the use of fiberglass became common.

This board is a recreation of the circuit board found in the V828 Vox Tone Bender pedals. The board is styled after the Italian made version which was also sold as the Jen Fuzz. When drawing the layout, original boards were closely referenced to ensure a proper match and fit. The copper traces have a surface treatment providing protection from corrosion.

This board uses unique PCB mounted tags for the offboard wiring. A combination of TR-10 eyelets (sold separately as SKU 34598) and Solder Tag M3,5 (sold separately) can be used to approximate the originals.
