Transformer T-OP-HW400A

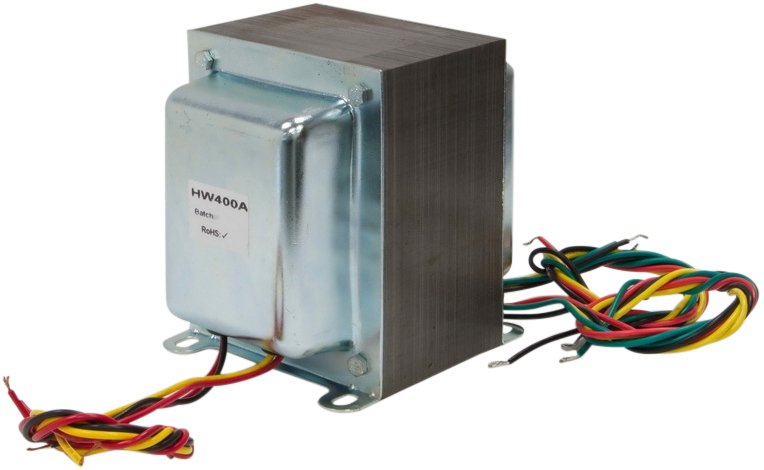

Output transformer for the Hiwatt 400 with 6xKT88. Primary impedance: 1.6k Ohms, multiple interlaced windings. Upgraded model with huge lamination.

5 1/4 inch Stack: 3 1/8 inch
mounting on 92mm x 103mm
DC resistance: 2x 28 Ohms primary.
Impedance p-p: approx. 1.7k.

W x H x D: 111 x 135 x 152

Primary:
A1 Yellow
HT 2x Red
A2 Black

Secondary:
0 Ohm 2x Black
4 Ohm 2x Green
8 Ohm 2x Yellow
16 Ohm 2x Red
