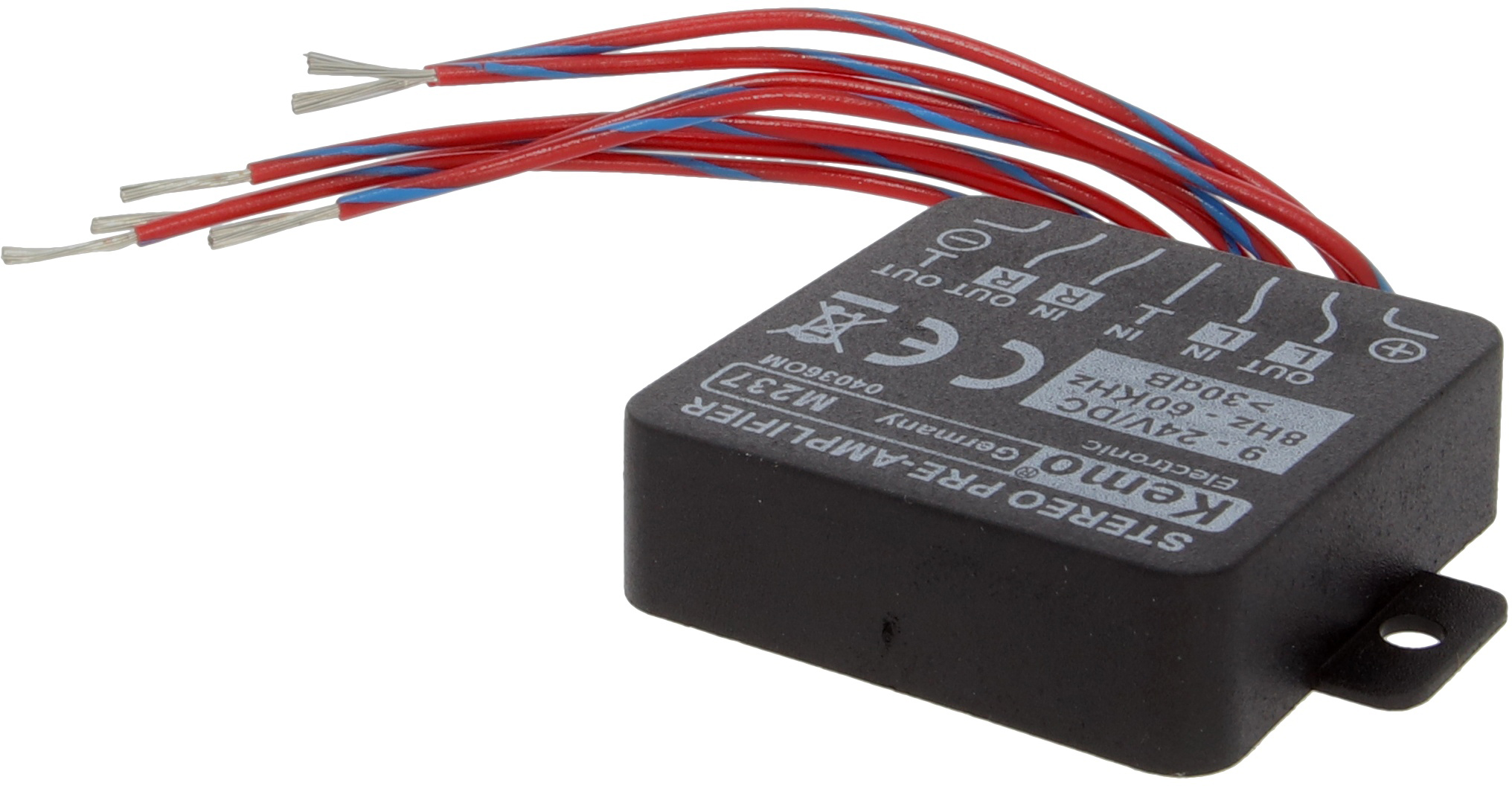

Stereo Preamp Module

Stereo Preamp Module

(0 reviews)

Robust stereo preamp, universal use, but great for microphones actually! The module is simply connected between a stereo power amplifier and a too weak signal source.

Technical Data:
  • Operating voltage: 9 - 24 V/DC stabilized (or battery)
  • Current consumption: approx. 3.4 mA +/- 20% at 12 V (without load)
  • Frequency range: approx. 8 Hz - 60 kHz, 3 dB at U out 1.5V RMS
  • Input impedance: 100k Ohm
  • Output load: > 2k Ohm
  • Amplification: approx. 30 dB +/- 20%
  • Distortion: <= 0.02% +/- 20%
  • Dimensions: approx. 40 x 40 x 12 mm (without fixing straps)

    • SKU SKU 60468
    Weight 50,00 g
    360 Image 360 degrees image
    Our price: €10,65
    including VAT 19% , [plus shipping]
     Delivery time: 4-5 days*
