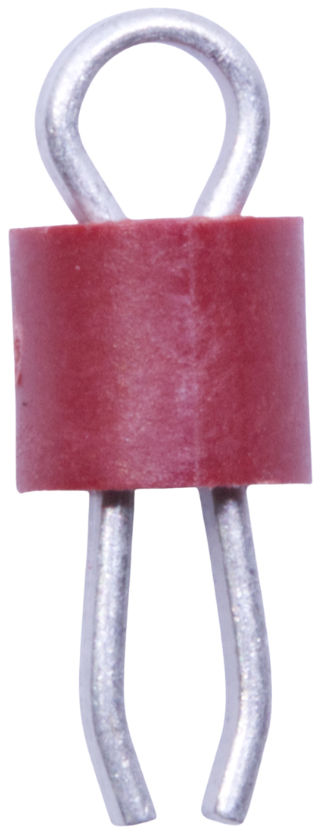

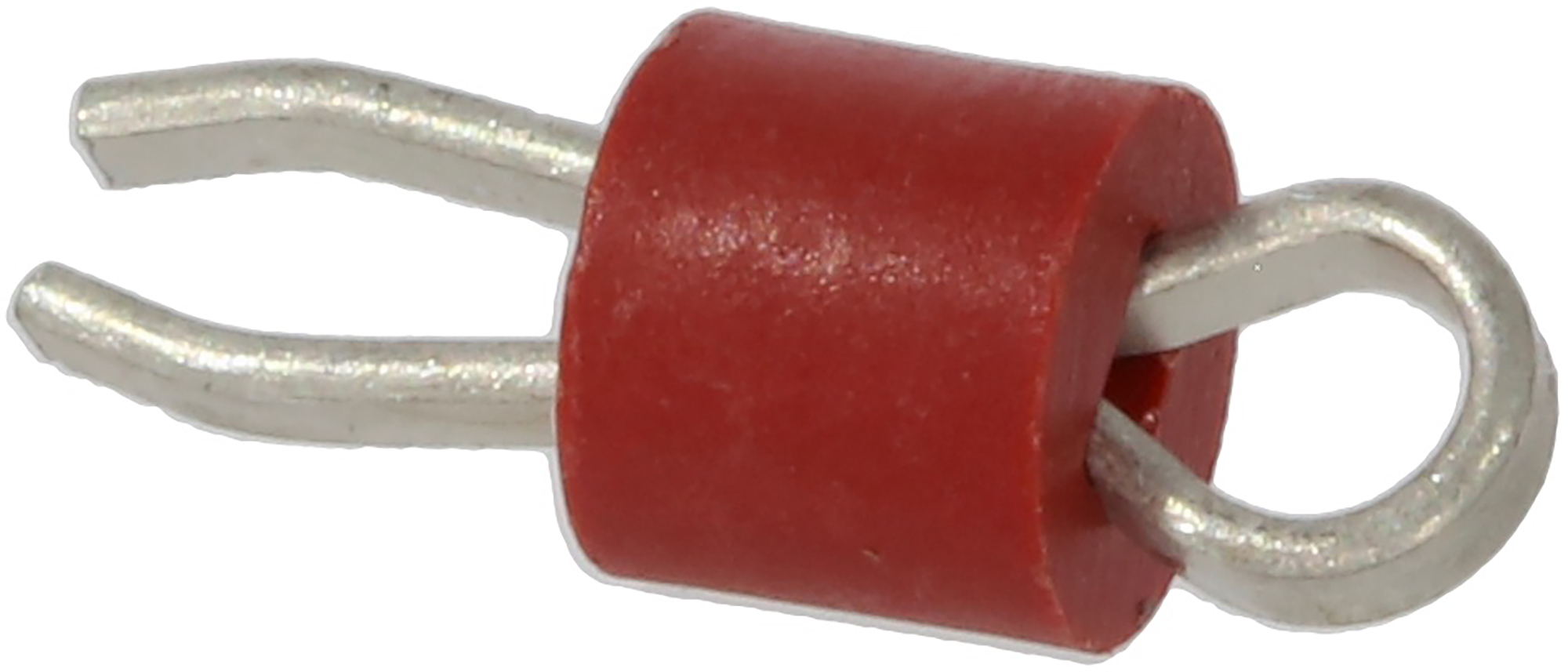

PCB Test Point Compact Red

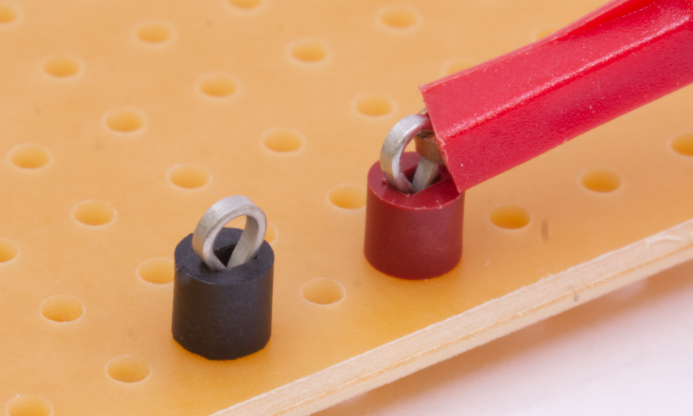

Package of 10 pieces. Compact PCB test point for providing easy access for measurement and testing purposes. These contacts can be soldered to the board for a permanent solution, but they can also stay in place with tension for temporary access. They combine well with various test leads, and provide an easy way to test various components before soldering them into place. Made of tin-plated phosphor bronze with heat-resistant nylon color indicator.

Base Diameter: 3,18mm

Length: 8,89mm

Loop Diameter: 1,78mm

Mounting Hole Diameter: 1,60mm

Thickness: 0,81mm
