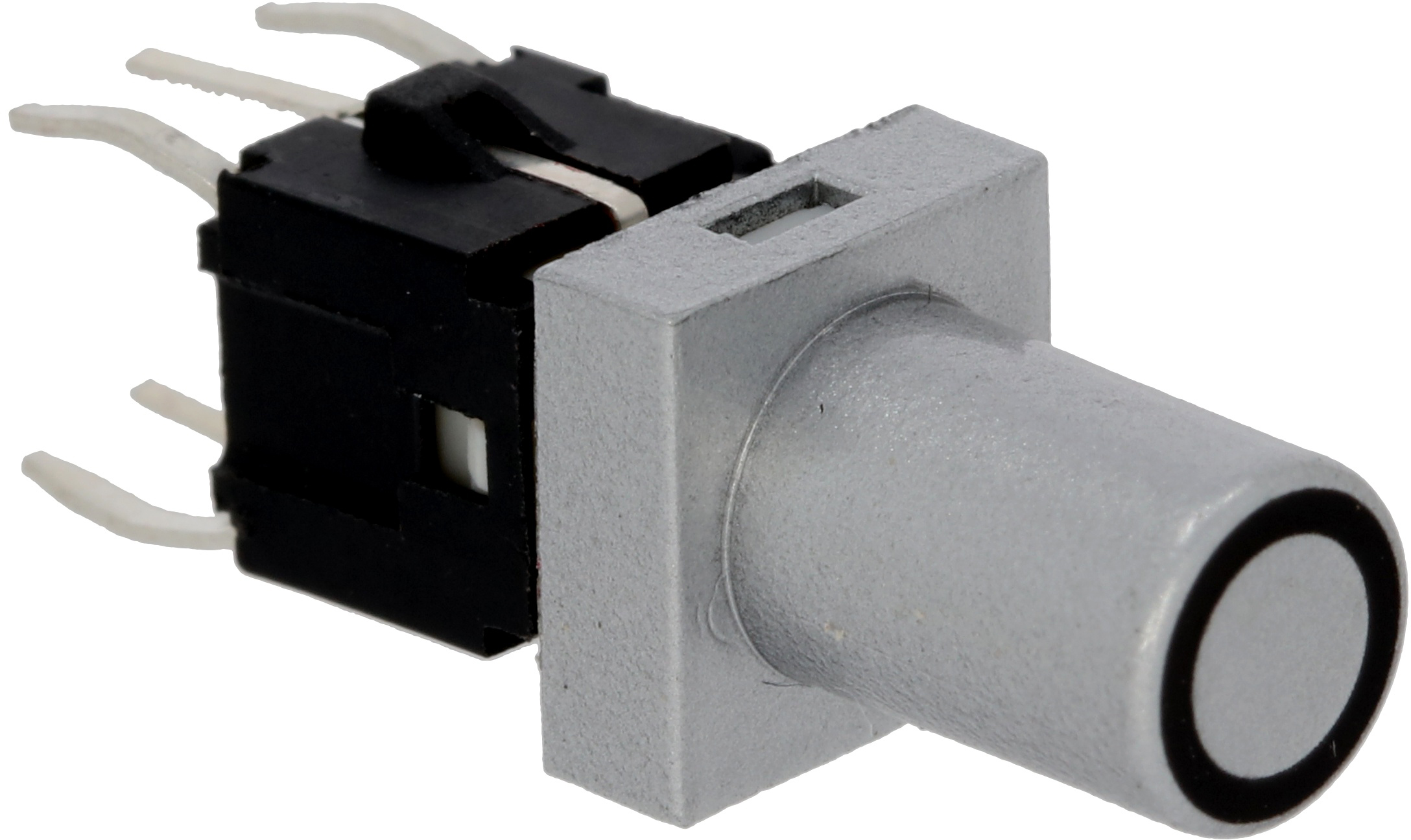

Illuminated Tact Switch LPSILV-Yellow

Illuminated Tact Switch LPSILV-Yellow

(0 reviews)

Highly illuminated tactile switch. A short stroke, light tact feeling and long life switch with a button. Widely used in modular synth systems and many electronic devices. Silver square button, lighting up yellow.

Specifications:
  • Rating 10mA 35VDC
  • Insulation Resistance: 100MOhm Min(at 250 VDC)
  • Dielectric Strength AC 250V (50/60 Hz for 1 minute)
  • Contact Resistance 30mOhm Max. (Initial)
  • Electrically Life 100,000 Cycles Min
  • Ambient Temperature -20°C to +70°C
  • Operating Force V: 1,6N
  • Type of switch: keypad
  • Number of positions: 2
  • Contacts configuration: SPST-NO
  • Actuator colour: colourless
  • Illumination: LED
  • Mounting: THT
  • Leads: for PCB, straight
  • Switching method: OFF-(ON)
  • Body dimensions: 6,2x6,2mm diameter
  • Stable positions number: 1
  • Actuator height: 10,3mm
  • Actuator+Body height: 18mm
  • Terminal pitch: 5 x 5mm
  • Button shape: square

  • SKU SKU 70381
    Weight 4,00 g
    360 Image 360 degrees image
    Our price: 1,49
    including VAT 19% , [plus shipping]
     Delivery time: 4-5 days*
