Gorva DPDT On-On

Gorva DPDT On-On

(0 reviews)

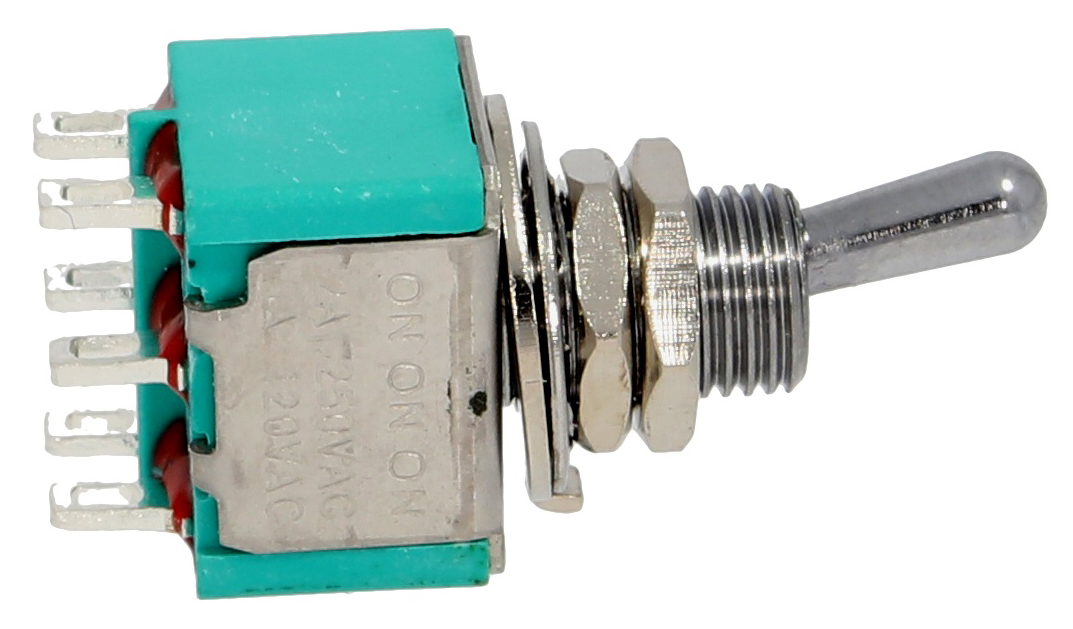

Gorva DPDT toggle switch. On-On switching. PC Pins, medium length bat. Standard size (LxWxH): 12,7x11,43x8,89mm.

Premium three position DPDT submini toggle switches from Gorva Design. The Bascular Sub Mini switches have a medium 7.37mm actuator length. These switches feature silver plated copper alloy contacts. The bushing is smooth and the switch is secured with the mounting bracket on the PCB. RoHS compliant & lead-free.

Details:
  • 8,89mm non-threaded bushing
  • 2-Position On/On
  • 1/4 inch diameter
  • Double pole/Double throw (DPDT)
  • PC Pins

    Power Rating: DC9V, 1A
  • Contact Resistance: <10mOhm
  • Insulation Resistance: 1000MOhm Minimum
  • Dielectric Strength: 1000V RMS @ Sea Level
  • Operating Temperature: -40°C - +85°C
  • Electrical Life: 40,000 Cycles
  • RoHS & Lead-free

  • SKU SKU 61236
    Weight 15,00 g
    360 Image 360 degrees image
    Our price: 2,19
    including VAT 19% , [plus shipping]
    (Base price per 1.00 Pack: €2,19)
     Delivery time: 6-8 weeks*
