GNA Toggle Switch PWR-GND-15A
DPDT Toggle / Power switch, Ground switch. Replacement for Music Manas HIGH/OFF/LOW, Jim Kelly, or as a Ground switch in Fender or Mesa Boogie amps.
Specifications:
Toggle switch with solder lug terminals. Slow opening contacts with silver plated contactsurfaces
Power rating: 15A @ 250V AC
mounting diameter: 12mm
Dimensions: WxH: 19x34mm
depth (body): 20mm
10 milliohms maximum
Insulation resistance: 1.000 megohms min. at 500 VDC
Dielectric strength: 2.500V rms min. between terminals and frame, 2.000V rms min. -between terminals
Electrical life at full load: 10.000 cycles minimum
Operating temperature range: -20°.C to +55°.C
SKU
SKU 51862
Weight
4,00
g
Manufacturer
Banzai Music GmbH, Benzstr. 46-50, 12277 Berlin, Deutschland, support@banzaimusic.com
Our price:
€
25,76
including VAT 19% ,
[plus shipping]
Quantity
Price*
2-3 Items
€
24,88
4-5 Items
€
24,12
6+ Items
€
23,34
*Note:
including VAT ,
[plus shipping]
Delivery time: 4-5 days*
Qty
1
Add to cart
Add to wish list
Ask a question about this product

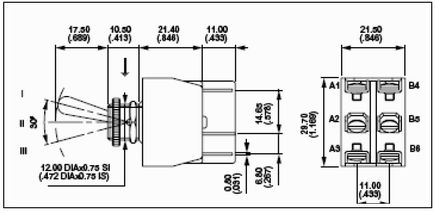

Detailed images
