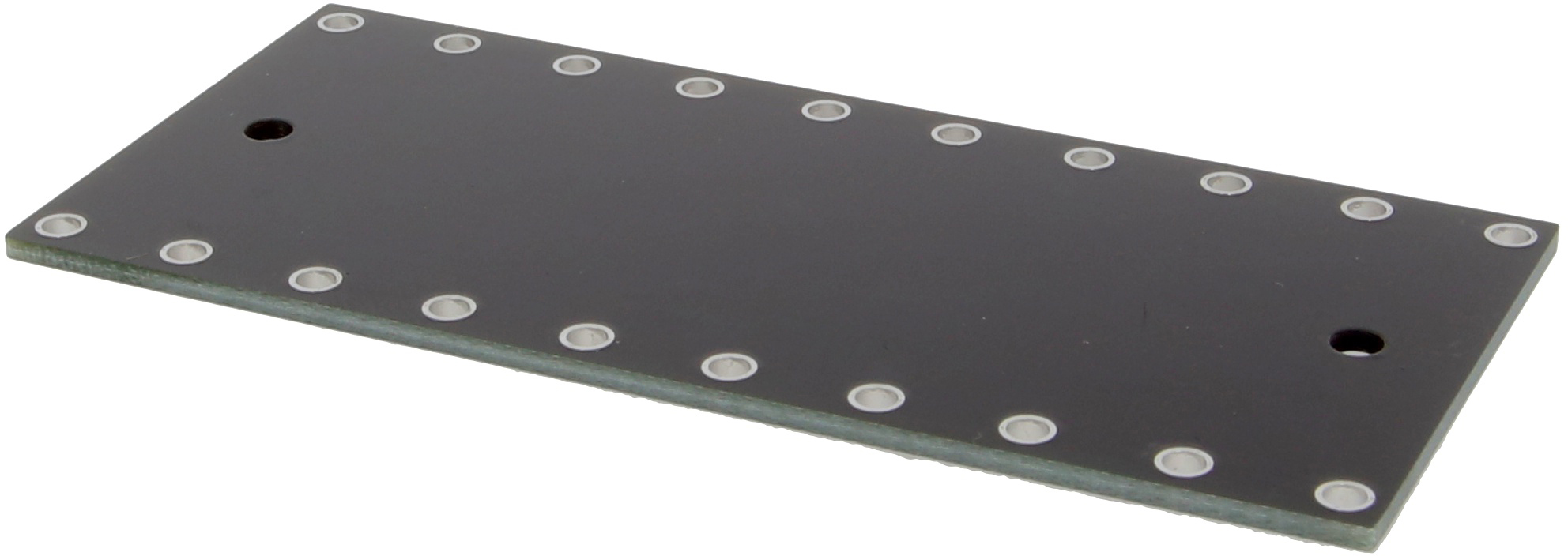

Eyelet Board Wide Layout 2x10

Eyelet Board Wide Layout 2x10
PCBs with similar styling to the eyelet/fiberboard used in vintage equipment. The spacing between pads is 9,1mm horizontally and 34,4mm vertically. The two mounting holes have a 3,2mm diameter to fit M3 or 4-40 hardware.

  • 2 rows of 10 eyelets (20 total)
  • 9.1mm x 34.4mm eyelet spacing
  • 87.1mm x 40.1mm board
  • 72.8mm spacing for 3.2mm mounting holes
  • Great fit for 1590BB enclosures

    • SKU SKU 74780
    Weight 8,00 g
    360 Image 360 degrees image
    Manufacturer Banzai Music GmbH, Benzstr. 46-50, 12277 Berlin, Deutschland, support@banzaimusic.com
    Our price: €3,72
    including VAT 19% , [plus shipping]
     Delivery time: 4-5 days*
