Elite Acoustics StompMix X4

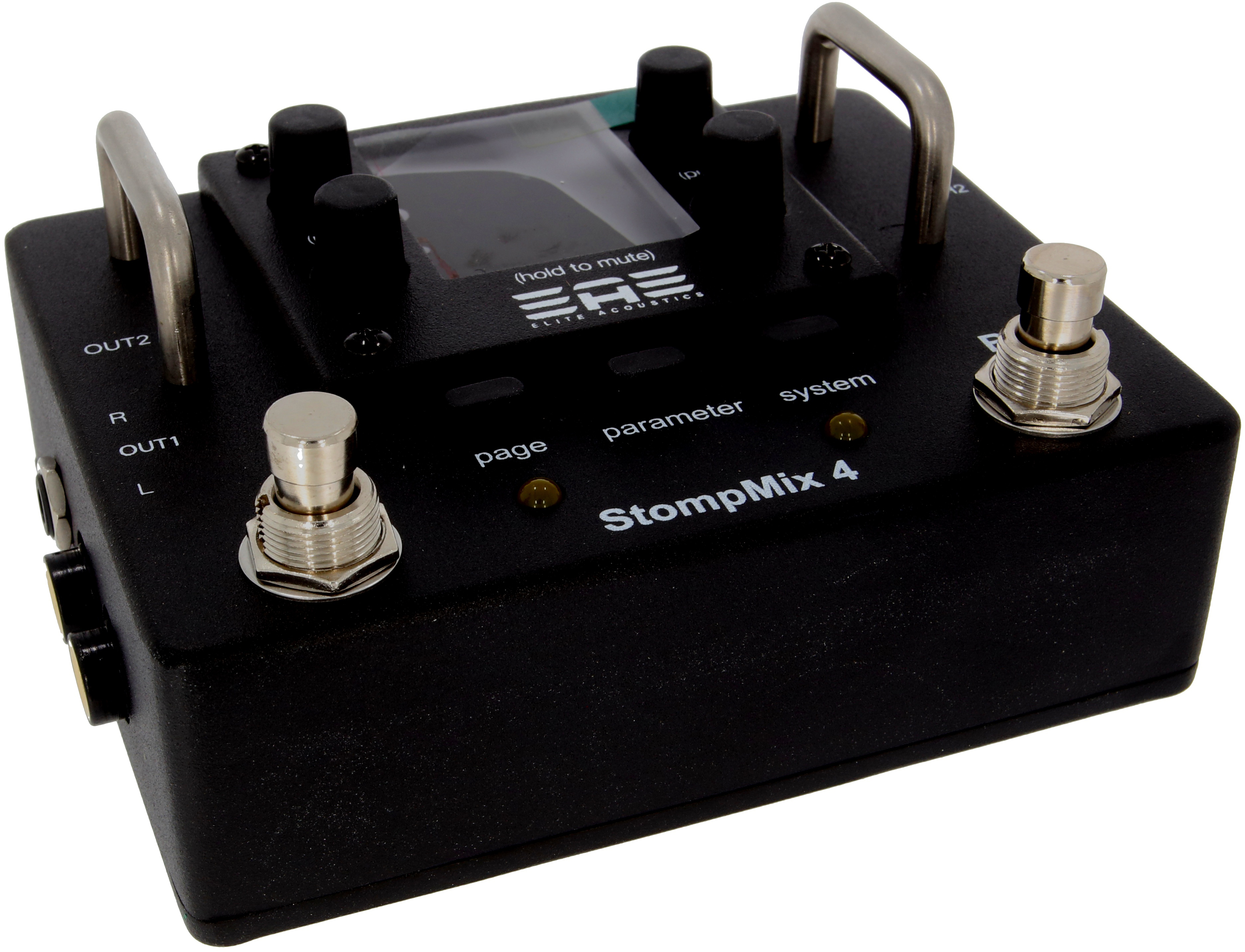

The StompMix 4 Compact Digital Mixer Pedal is built with a powerful 32-bit 100Mhz DSP engine and a compact lightweight stomp box package. The StompMix 4 offers a full featured, highly intuitive four channels Digital Mixer with a Color Display. The DSP engine provides a compressor, limiter, Mid sweepable EQ, Highpass Filter, Notch Filter, Phase reverse to each of the 4 inputs. Analog inputs consisted of 2 Class A solid-state Mic pre-amps with +48V Phantom power and two 1/4 inch TS line inputs. Two sets of stereo Mix outputs are selectable between a 1/8 inch TRS jack and 2 1/4 inch TS jacks . 2 Footswitches with assignable functions.

STOMPMIX 4 FOUR CHANNEL DIGITAL PEDALBOARD MIXER FEATURES

4-Channel Compact Digital Mixer Pedal

10 user scene memories.

Color display

Input Level Monitoring

2 Class-A Mic inputs with TRIM and PAD (CHAN 1 and 2)

2 LINE inputs (CHAN 3 and 4)

+48V Phantom Power

Independent Reverb effect on each channel

2 notch filter available on each channel

High Pass Filter and Phase Reverse on each channel

Noise Gate and Compressor on each channel

3 Band EQ with Sweepable MID on each channel

Max 1 second Delay with Tap Tempo (assign to one Channel at a time)

Assignable Footswitch functions (MUTE channels, EFX by-pass, Tap Tempo, Scene change etc)

Output 1 (L/R TS or TRS 1/4 inch jacks) * (New production - X42U - Balanced TRS) *(OSM4- Unbalanced TS)

Output 2 (Stereo TRS 1/8 inch jack)

Output 2 can be used for Headphones

Main MIX and AUX MIX

Scenes Change - via Footswitches.

Diecasting Metal chassis

AC/DC power supply included

Support 9VDC to 12VDC power inputs (500mA 2.1mm *Center Positive*)

Designed and assembled in USA
