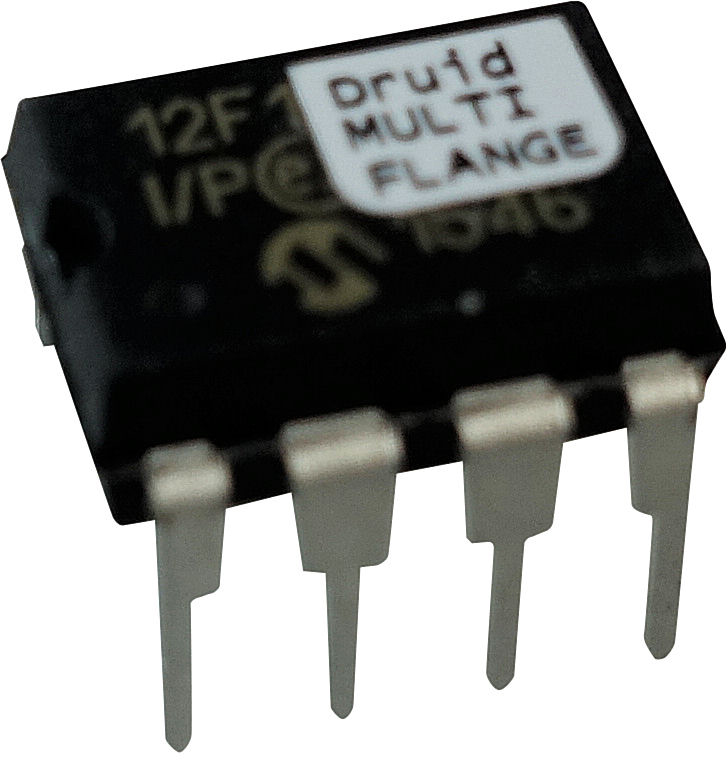

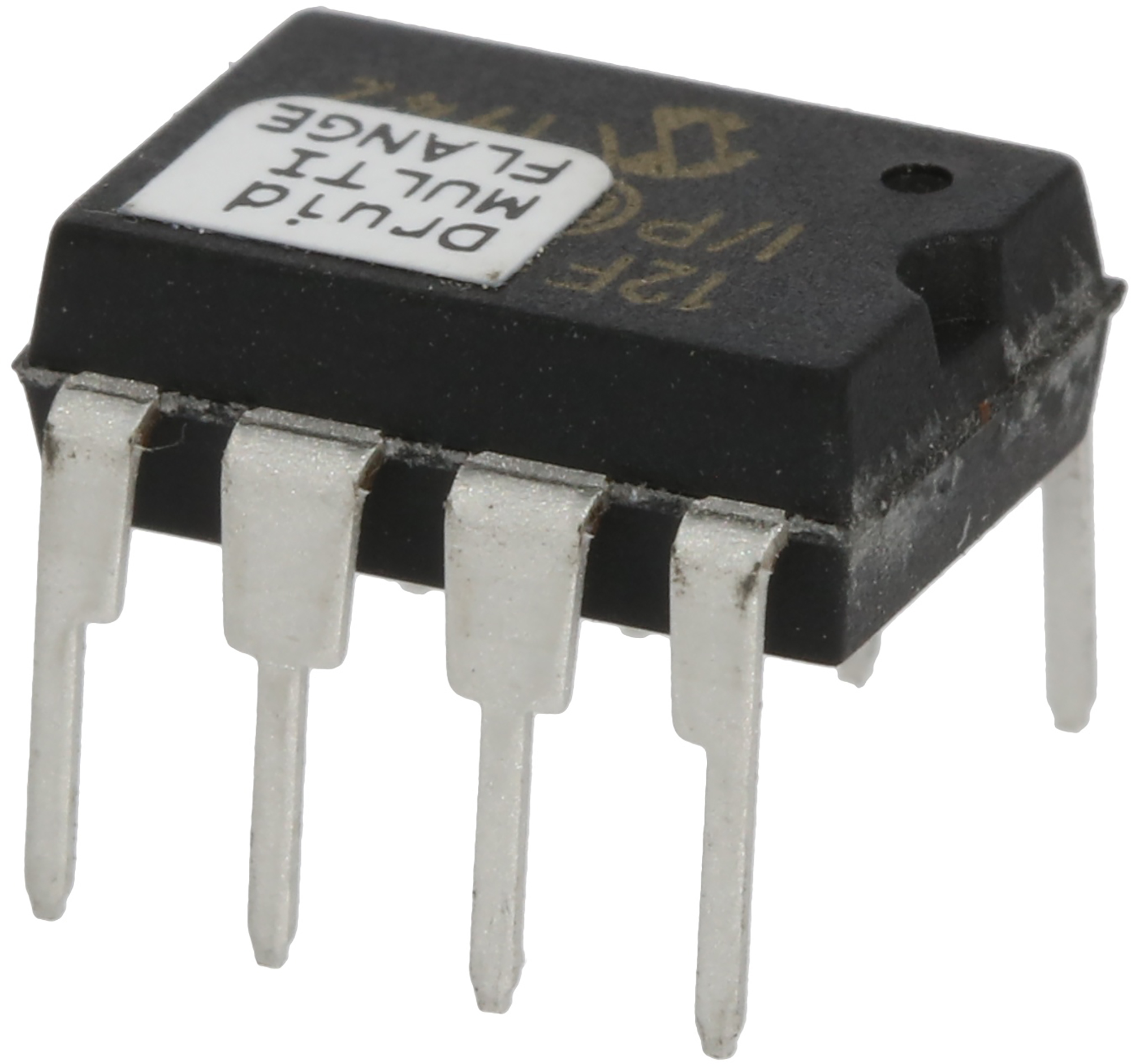

Electric Druid MULTIFLANGE flanger delay clock

The Electric Druid MULTIFLANGE flanger delay clock includes an LFO with seven waveforms, including a manual mode for fixed flanger (matrix) filtering effects. LFO Rate, Waveform, and Depth are all variable using 0-5V control voltages. The chip outputs a biphase clock from 25KHz to 500KHz that can drive MN32xx-series delay lines directly. DIP8.

The chip is simple to use, with no crystal required, and is in an 8-pin DIP package. It can replace the MN3102 clock chip and the associated LFO in many modulation effects, whilst providing many new features.
