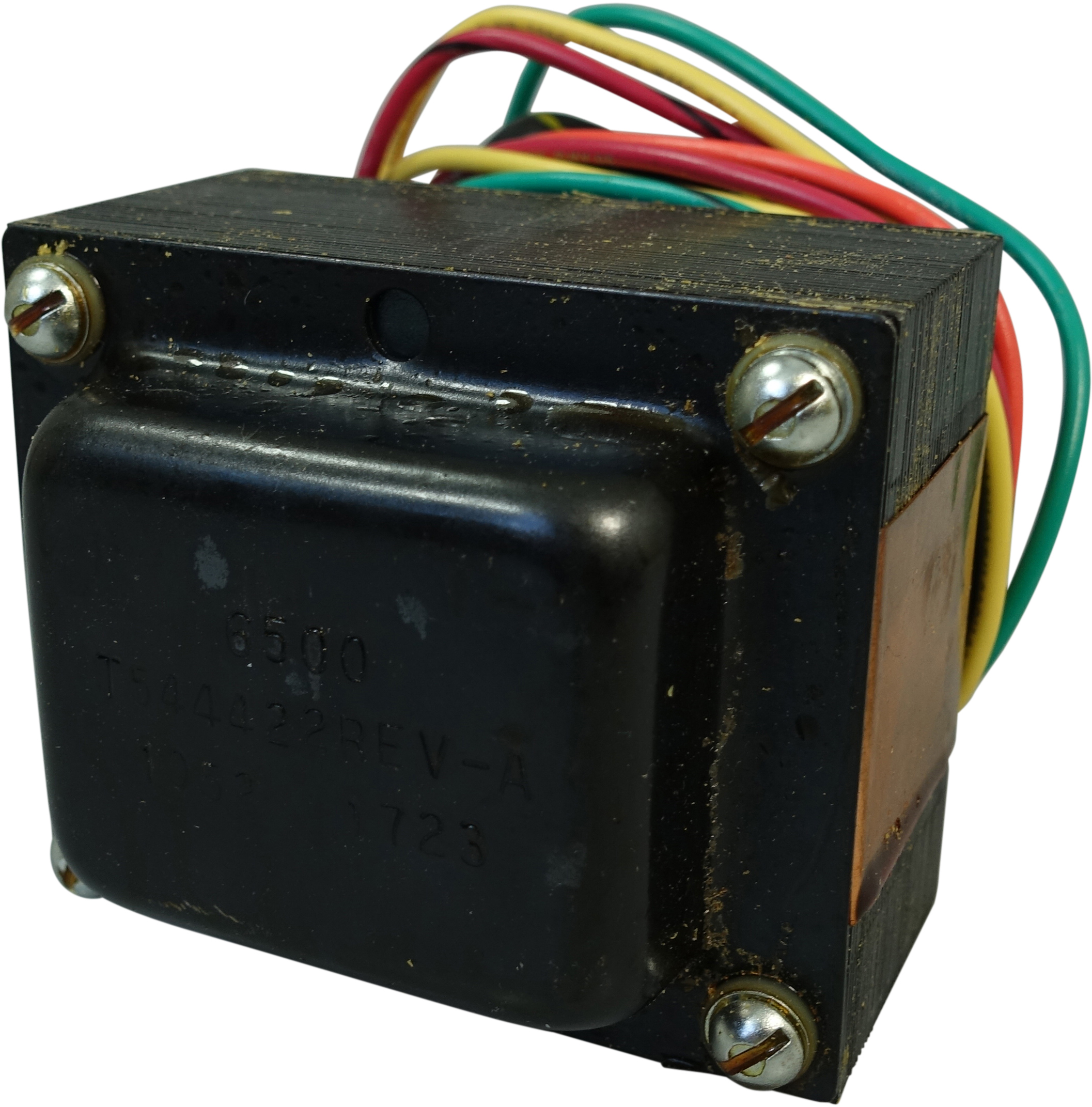

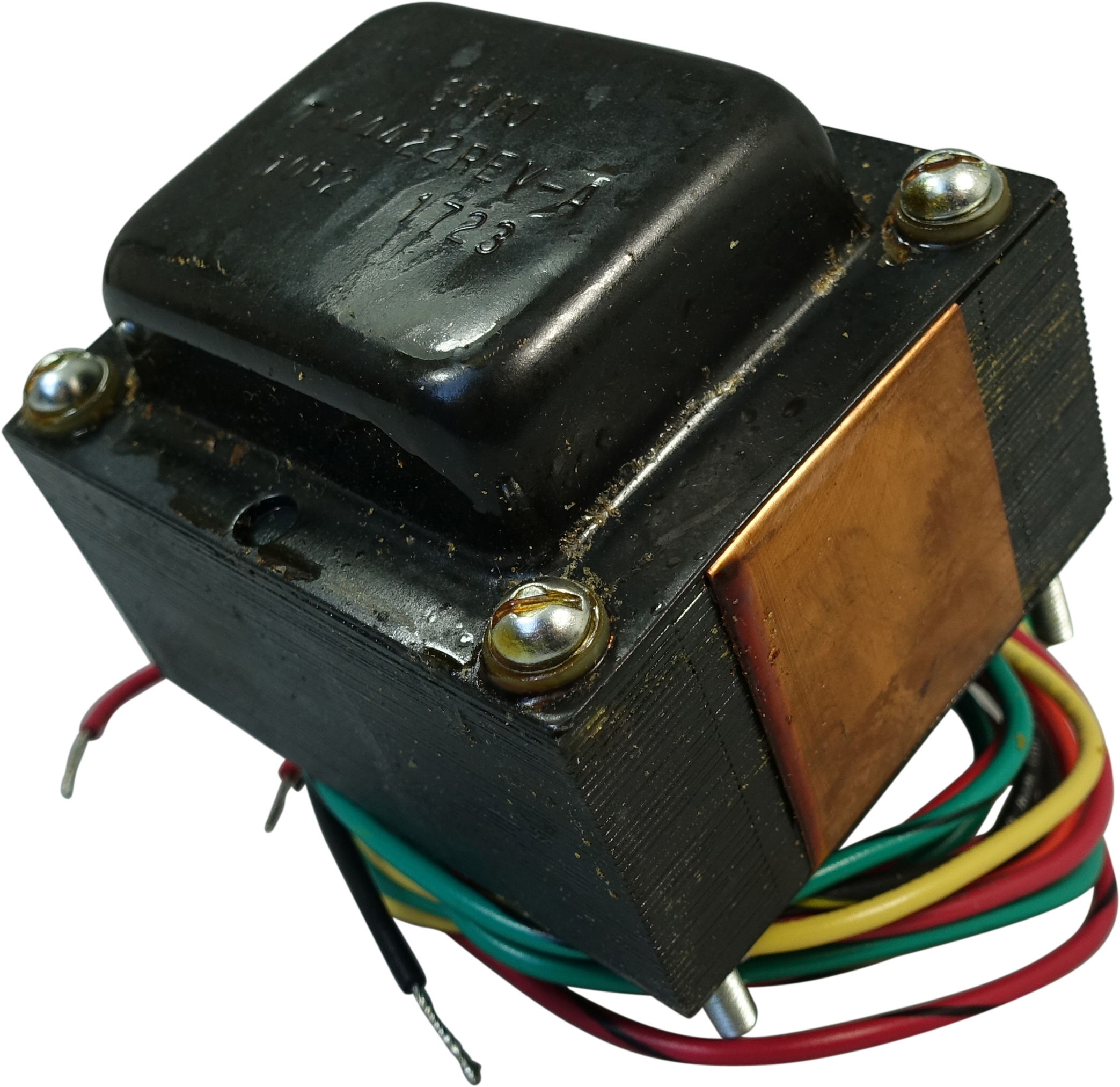

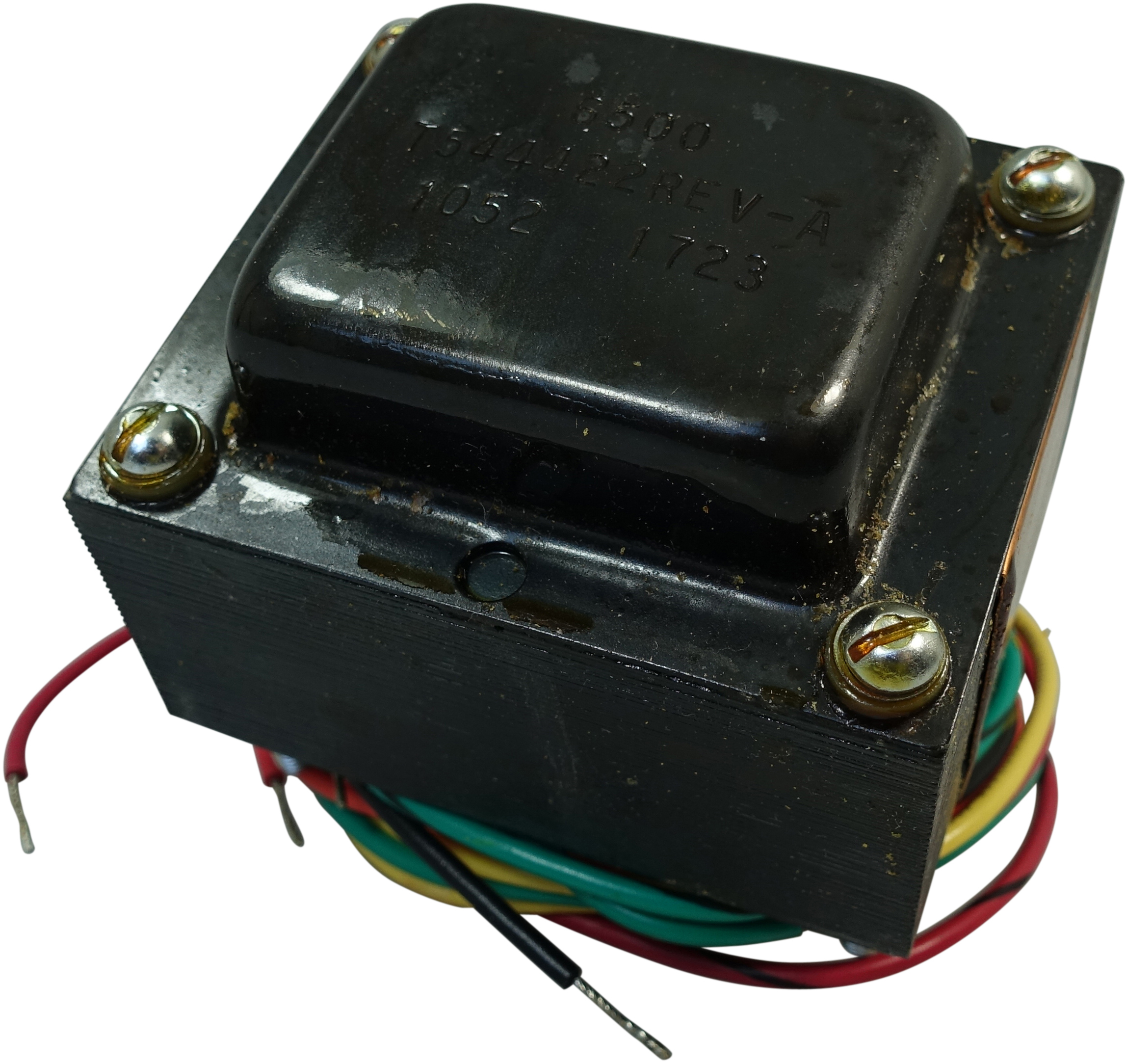

Transformer T-PWR-6500

Direct replacement Power Transformer. Application: Fender Tweed Champ 5E1, 5F1.

perfect because of the lower B+ for Fender Champ and Vibro Champ ( all AA764 models)

Mounting on 2 1/2 inch x 2 inch
CUSTOM MADE IN USA

Primary:
240V Red/Black
230V Green/Black
220V Black/Yellow
0V Black

Screen: Orange

Secondary:
275V@50mA Red
0V Red/Yellow
275V Red

6,3V@2A Green
0V Green

5V@2A Yellow
0V Yellow
