THAT 4316Q16-U

THAT 4316Q16-U

(0 reviews)

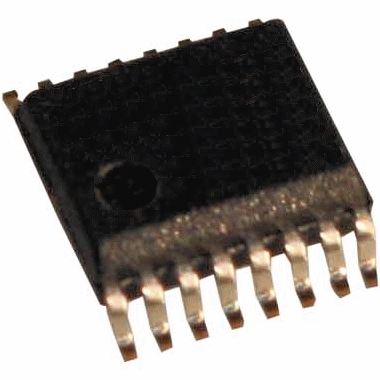

The THAT4316 is a single-chip Analog Engine optimized for very low-voltage, low-power operation. It incorporates a high-performance class-AB voltage-controlled amplifier (VCA) and true-RMS-responding level detector. The 16-pin QSOP part is aimed at battery-operated audio applications including companding systems for wireless microphones, wireless instruments, and in-ear monitors, as well as dynamics processors of all types. The 4316 operates from a single supply voltage down to 2.7V, drawing only 1.2mA at 3.3V

Specifications:
  • Pre-trimmed VCA and RMS detector
  • Very low supply voltage: 2.7V - 5.5V
  • Low supply current: 1.2mA typ. (3.3V)
  • Internal Vcc/2 divider and buffer
  • Wide dynamic range: 115dB as compander

  • SKU SKU 43345
    Weight 0,45 g
    Our price: 4,70
    including VAT 19% , [plus shipping]
    Quantity Price*
    5-9 Items 4,47
    10-24 Items 4,24
    25+ Items 4,00

    *Note: including VAT , [plus shipping]

     Delivery time: 4-5 days*
