Panasonic FM 1200uF 6,3V 10mm

Panasonic FM 1200uF 6,3V 10mm

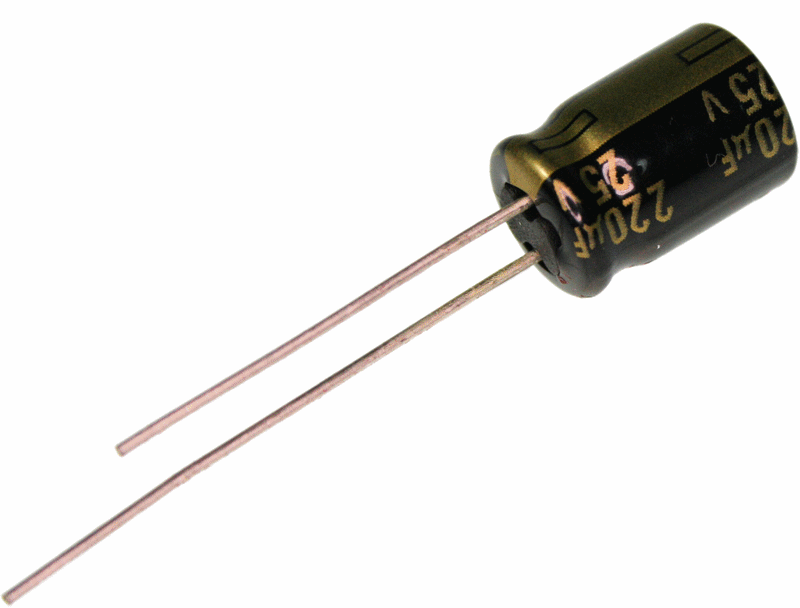

High endurance, low impedance radial aluminum electrolytic capacitors. Black body with gold markings.
Specifications:
  • Low impedance: 40-70% lower than Panasonic FC series
  • High ripple current: 50% higher than Panasonic FC series
  • Long life: 2000 - 7000 hours at 105'C
  • PVC free, Pb free
  • Capacitance tolerance: 20% (120Hz, 20'C)
  • Leakage current: I<= 0,01 CV (uA) measured after 2 minutes application of rated working voltage at 20'C
  • Temperature Range: -40'C – 105'C

    • Dimensions (D x L): 10x16mm.

    SKU SKU 31067
    Weight 5,00 g
    360 Image 360 degrees image
    Manufacturer Panasonic Industry Europe GmbH, Caroline-Herschel-Strasse 100, 85521 Ottobrunn, Deutschland, info.pieu@eu.panasonic.com
    Our price: €0,82
    including VAT 19% , [plus shipping]
    Quantity Price*
    10-24 Items €0,80
    25-49 Items €0,75
    50+ Items €0,73

    *Note: including VAT , [plus shipping]

     Delivery time: 4-5 days*
