PEC MIL-MO-LIN-1k

PEC MIL-MO-LIN-1k

(0 reviews)

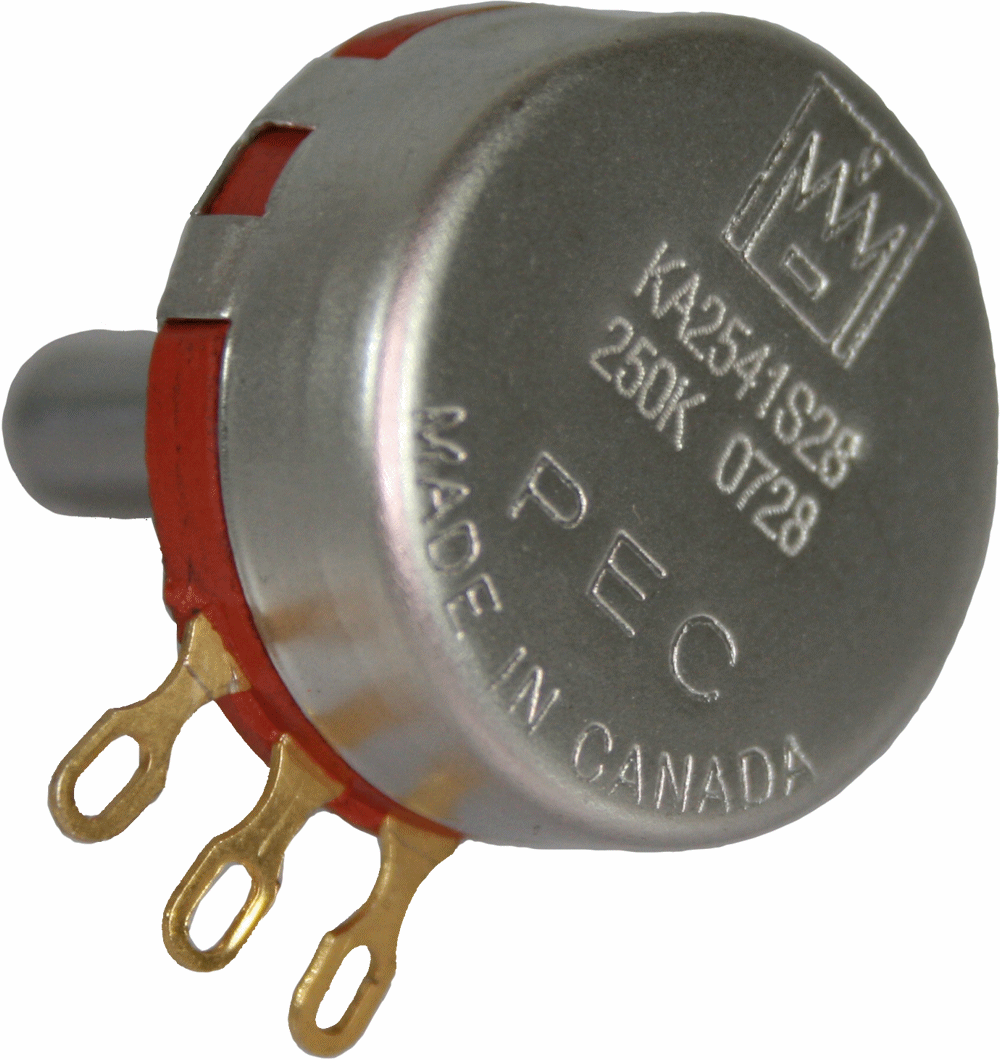

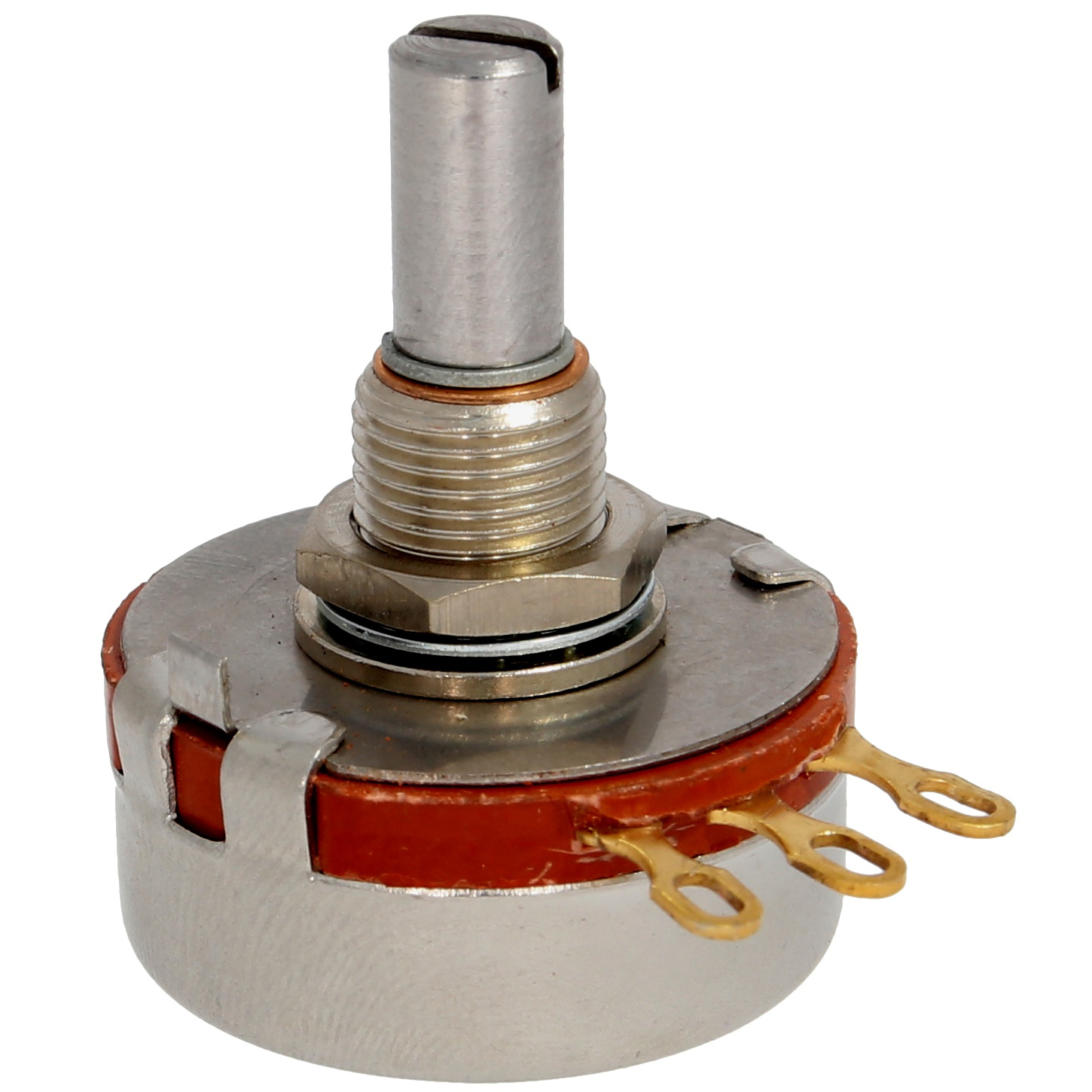

MIL Style 2W carbon potentiometer. Made by PEC Canada. Metal housing, stainless steel shaft.

Specifications:

  • Body diameter: 28,45mm
  • Body height: 13,6mm
  • Shaft length: 12,7mm
  • Thread length: 9,5mm
  • Thread diameter: 3/8 inch (9,5mm)
  • Shaft diameter: 1/4 inch (6,3mm)
  • 2W Carbon Potentiometer
  • Resistance Tolerance: ±10%
  • Power Rating: 2 Watts @ 70°C, Derate to 0 Watt @ 120°C
  • Dielectric Strength: 900V RMS
  • Working Voltage: 500 volts, but power not to exceed rating
  • Operating Temperature: -65°C ~ 125°C
  • Mechanical Rotation: 314° QPL listed under MIL R 94 Specifications.
  • Metal housing, stainless steel shaft.
  • Hardware included

  • SKU SKU 26676
    Weight 30,00 g
    Our price: 15,47
    including VAT 19% , [plus shipping]
    Quantity Price*
    2-3 Items 14,64
    4-5 Items 13,86
    6+ Items 13,09

    *Note: including VAT , [plus shipping]

     Delivery time: 2-3 days*
