Alpha 24-SPST-LS-1M log

Alpha 24-SPST-LS-1M log

(0 reviews)

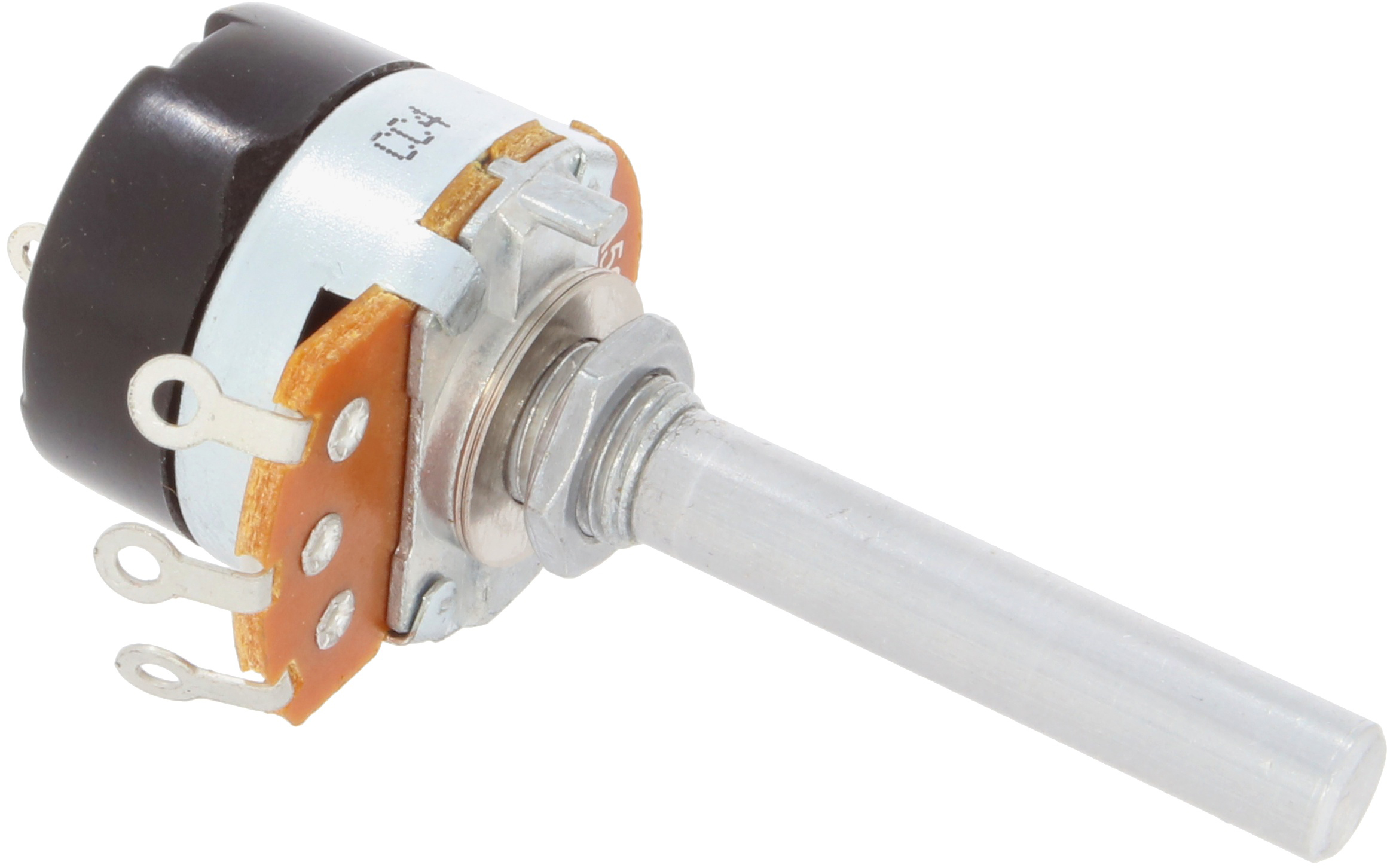

Alpha 24mm, full shaft, mono potentiometer with solder lugs and SPST switch.

Specifications:

  • Mono
  • SPST Switch
  • Metal axis, full shaft
  • Material: Carbon Composition
  • Terminal type: solder lugs
  • Body (DxH): 24x20mm
  • Power rating: 0,25W
  • Rated voltage: 250VDC
  • Tolerance: +/- 30%
  • Rotation angle: 300 degrees +/- 5%
  • Breakdown voltage: 500VAC for 1 minute
  • Axis length (including thread): 42mm
  • Thread length: 7mm
  • Thread diameter: M8 x 0,75

  • SKU SKU 34525
    Weight 19,00 g
    Our price: 3,71
    including VAT 19% , [plus shipping]
    Quantity Price*
    5-9 Items 3,52
    10-24 Items 3,34
    25+ Items 3,15

    *Note: including VAT , [plus shipping]

     Delivery time: 2-3 days*
