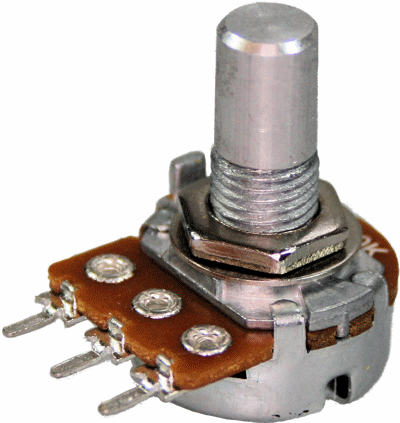

Alpha 16-PC-STR 2k lin

Alpha 16-PC-STR 2k lin

(0 reviews)

Alpha 16mm, full shaft, mono potentiometer, PC mount.

Specifications:

  • Mono
  • Metal axis, full shaft
  • Material: Carbon Composition
  • Terminal type: PC mount
  • Body (DxH): 16x9,5mm
  • Power rating: 0,2W
  • Rated voltage: 150VAC
  • Tolerance: +/- 20%
  • Rotation angle: 300 degrees +/- 5%
  • Breakdown voltage: 500VAC for 1 minute
  • Rotational life: 15000 cycles
  • Axis length (including thread): 15,5mm
  • Thread length: 7mm
  • Thread Diameter: M7 x 0,75

  • SKU SKU 42284
    Weight 6,00 g
    Our price: 1,15
    including VAT 19% , [plus shipping]
    Quantity Price*
    10-24 Items 1,09
    25-99 Items 1,05
    100+ Items 1,01

    *Note: including VAT , [plus shipping]

     Delivery time: 2-3 days*
