Alpha 16-SL-KN 5k REV log

Alpha 16-SL-KN 5k REV log

(0 reviews)

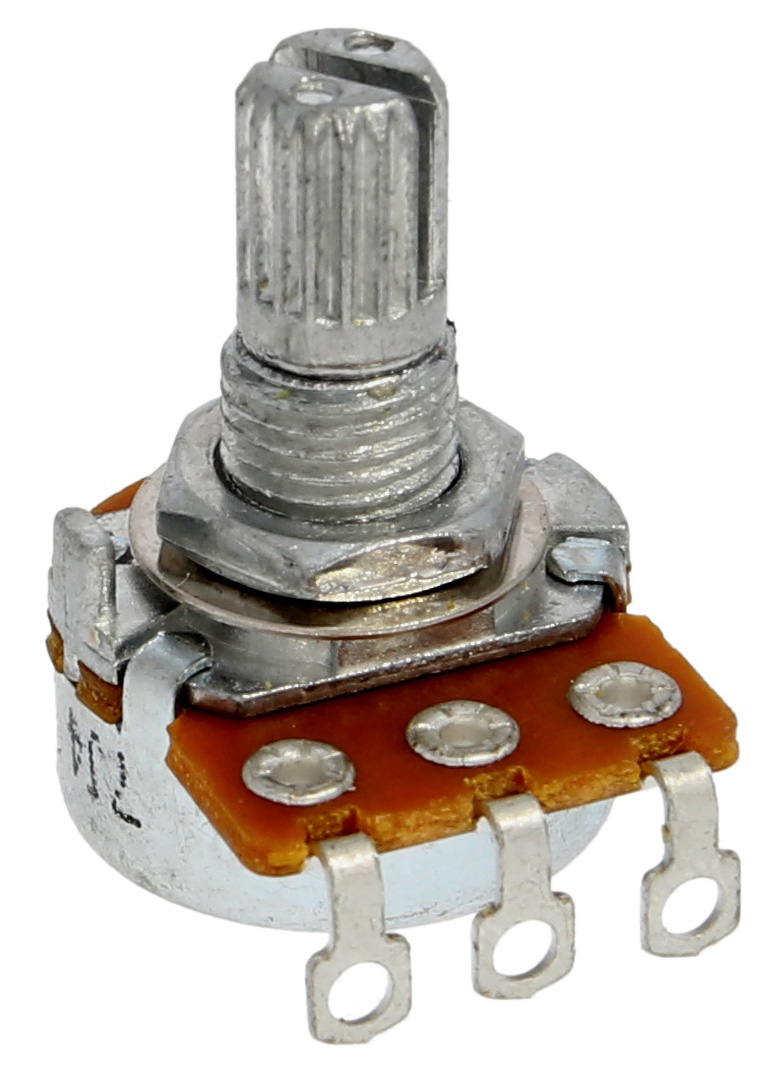

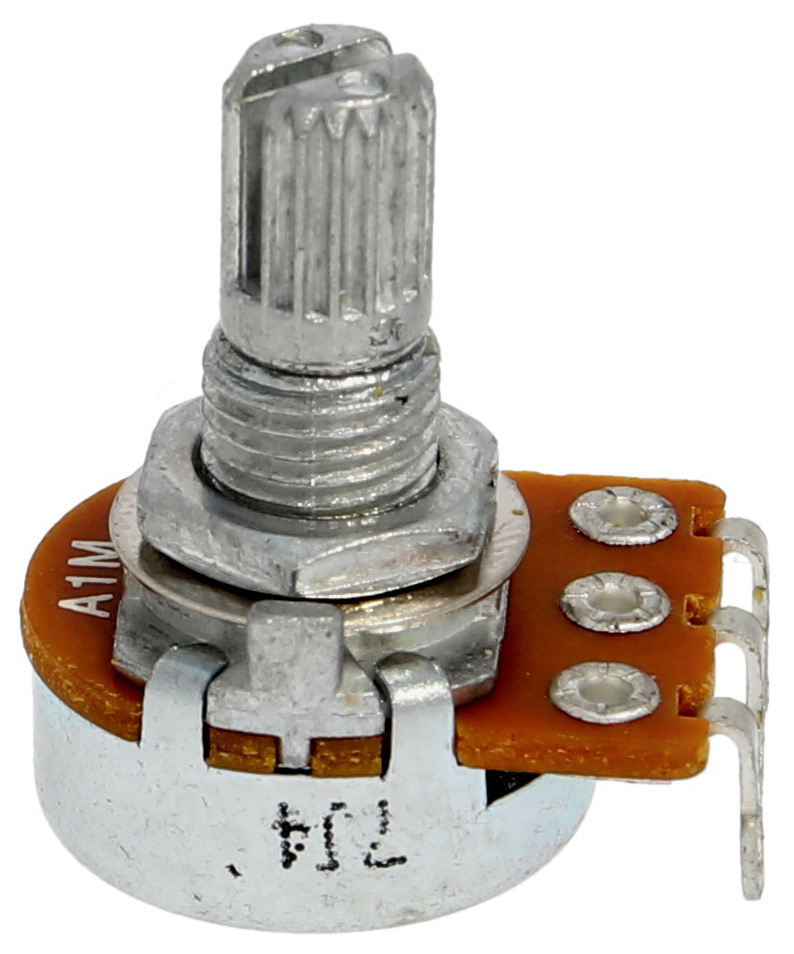

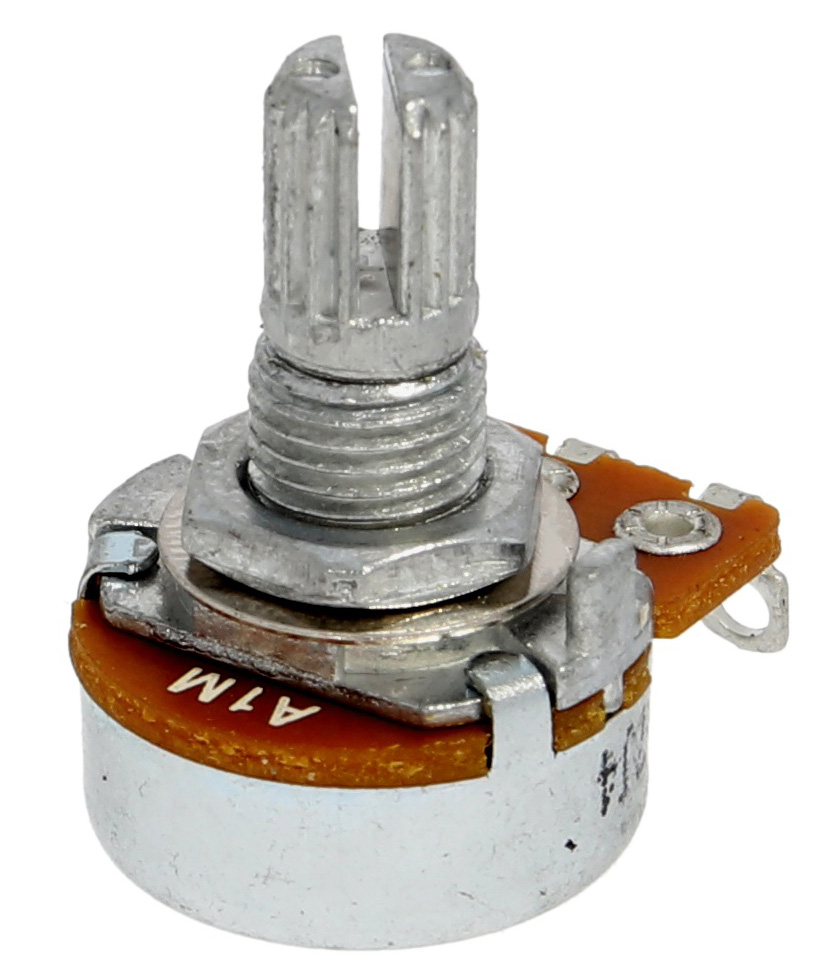

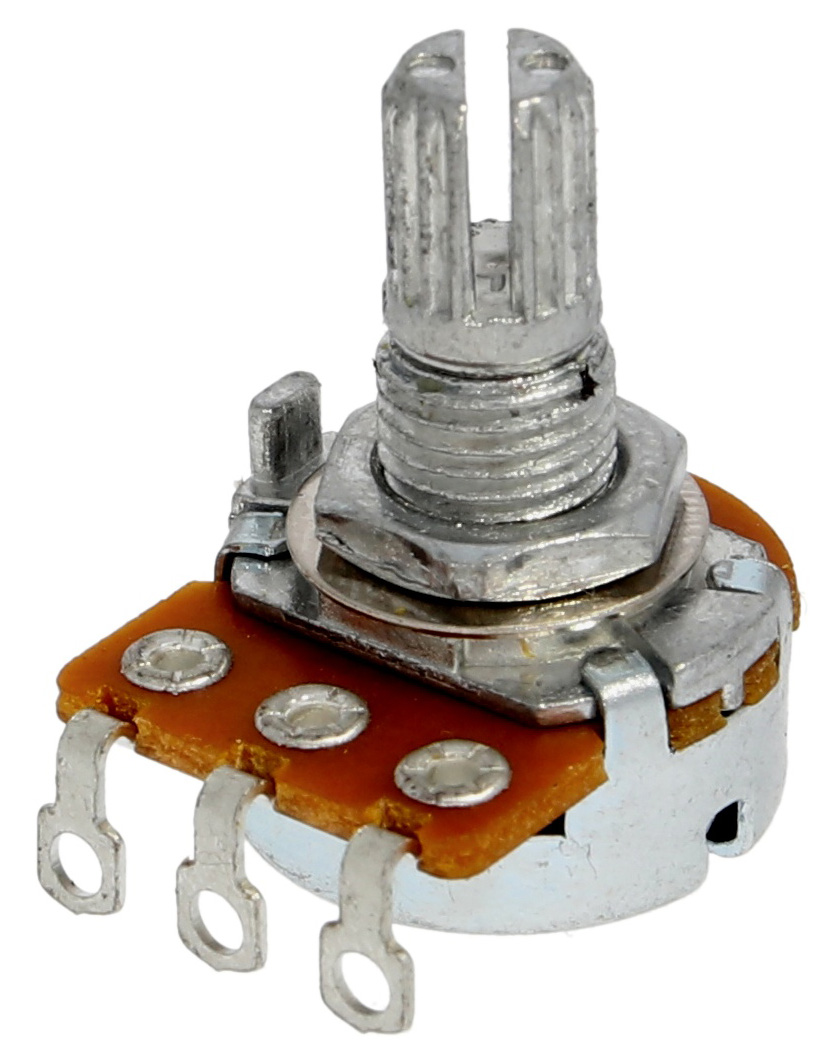

Alpha 16mm, knurled split shaft, mono potentiometer, solder lugs.

Specifications:

  • Mono
  • Metal axis, knurled split shaft
  • Material: Carbon Composition
  • Terminal type: solder lugs
  • Body (DxH): 16x9,5mm
  • Power rating: 0,2W
  • Rated voltage: 150VAC
  • Tolerance: +/- 20%
  • Rotation angle: 300 degrees +/- 5%
  • Breakdown voltage: 500VAC for 1 minute
  • Rotational life: 15000 cycles
  • Axis length (including thread): 15,5mm
  • Thread length: 7mm
  • Thread Diameter: M7 x 0,75

  • SKU SKU 34806
    Weight 8,00 g
    Our price: 1,49
    including VAT 19% , [plus shipping]
     Delivery time: 2-3 days*

    Qty
    Board FEPCU-160
    €2,09
